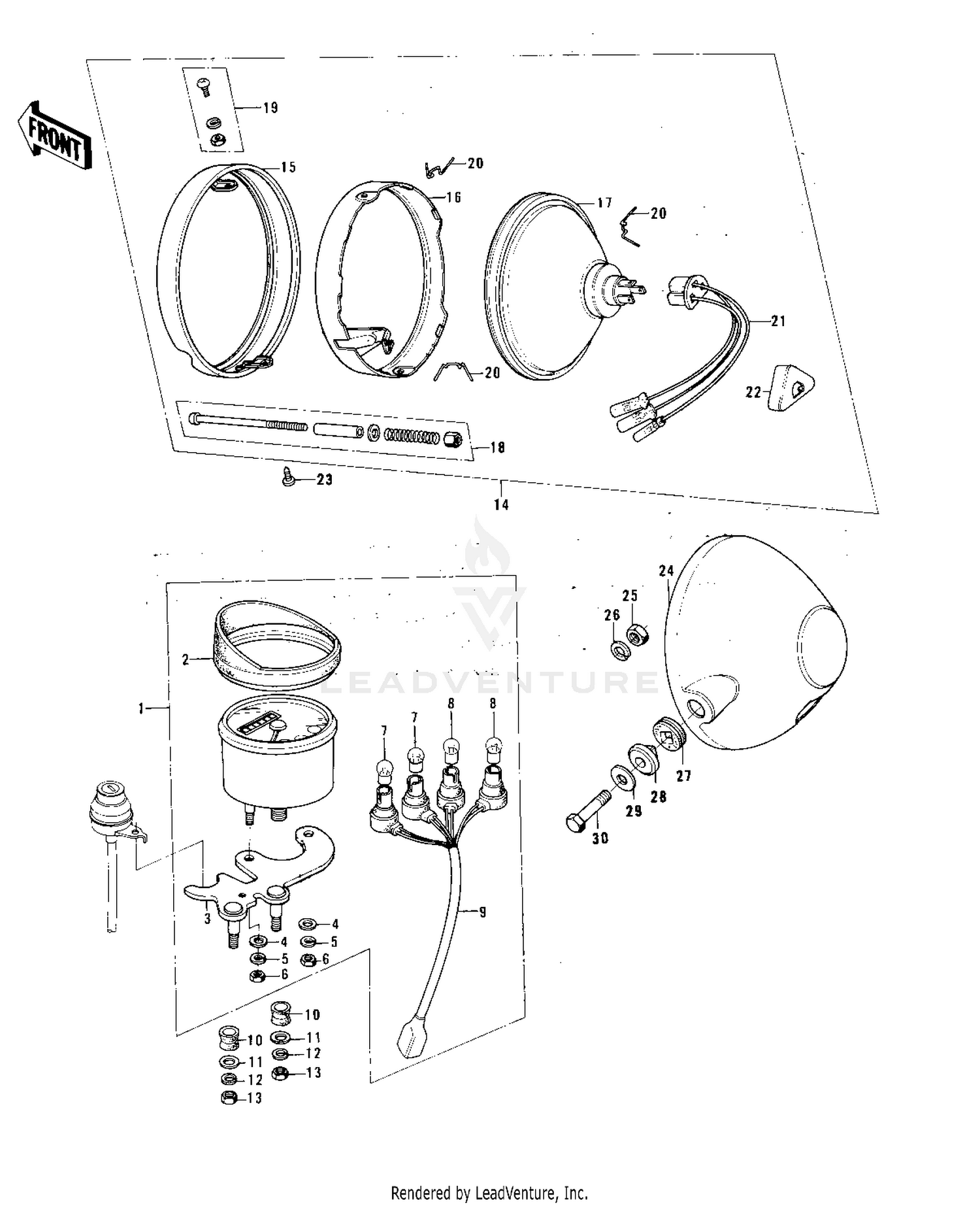

| Ref | Part Number | Description |
|---|
| 1 |
25001-093 |
SPEEDOMETER ASSY,MPH Price: $107.20 |
| 2 |
25012-003 |
COVER-SPEEDOMETER Price: $23.05 |
| 3 |
25008-042 |
BRACKET,SPEEDOMETER Price: $17.69 |
| 4 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 410B0500. Price: $0.47 |
| 5 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 6 |
311AA0500 |
NUT-HEX,5MM This part replaces 311B0500. Price: $0.47 |
| 7 |
92069-024 |
BULB 6V 1.5W Price: $5.31 |
| 8 |
92069-053 |
BULB-6V 3W Price: $4.18 |
| 9 |
25011-050 |
SOCKET,SPEEDOMETER Price: $29.12 |
| 10 |
92075-024 |
DAMPER RUBB SPEEDMETR Price: $4.39 |
| 11 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 12 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 13 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 14 |
23003-024 |
LAMP UNIT,HEAD Price: $120.86 |
| 15 |
23006-042 |
RIM,HEAD LAMP Price: $62.05 |
| 16 |
23072-002 |
RETAINER,SEALED BEAM Price: $39.06 |
| 17 |
23007-055 |
SEALED BEAM UNIT Price: $71.24 |
| 18 |
23016-006 |
LAMP ASSY-PILOT Price: $18.04 |
| 19 |
23013-007 |
SCREW SET,LENS UNIT Price: $6.35 |
| 20 |
23009-015 |
CLAMP,HEAD LAMP LENS Price: $5.44 |
| 21 |
23008-044 |
SOCKET ASSY,HD LIGHT Price: $22.32 |
| 22 |
23081-001 |
COVER,HD LAMP SOCKET Price: $8.08 |
| 23 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 23019-025. Price: $0.47 |
| 25 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 26 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 27 |
23066-011 |
DAMPER RUBBER Price: $4.95 |
| 28 |
23052-005 |
COLLAR Price: $15.16 |
| 29 |
92200-1313 |
WASHER This part replaces 411D1000. Price: $4.78 |
