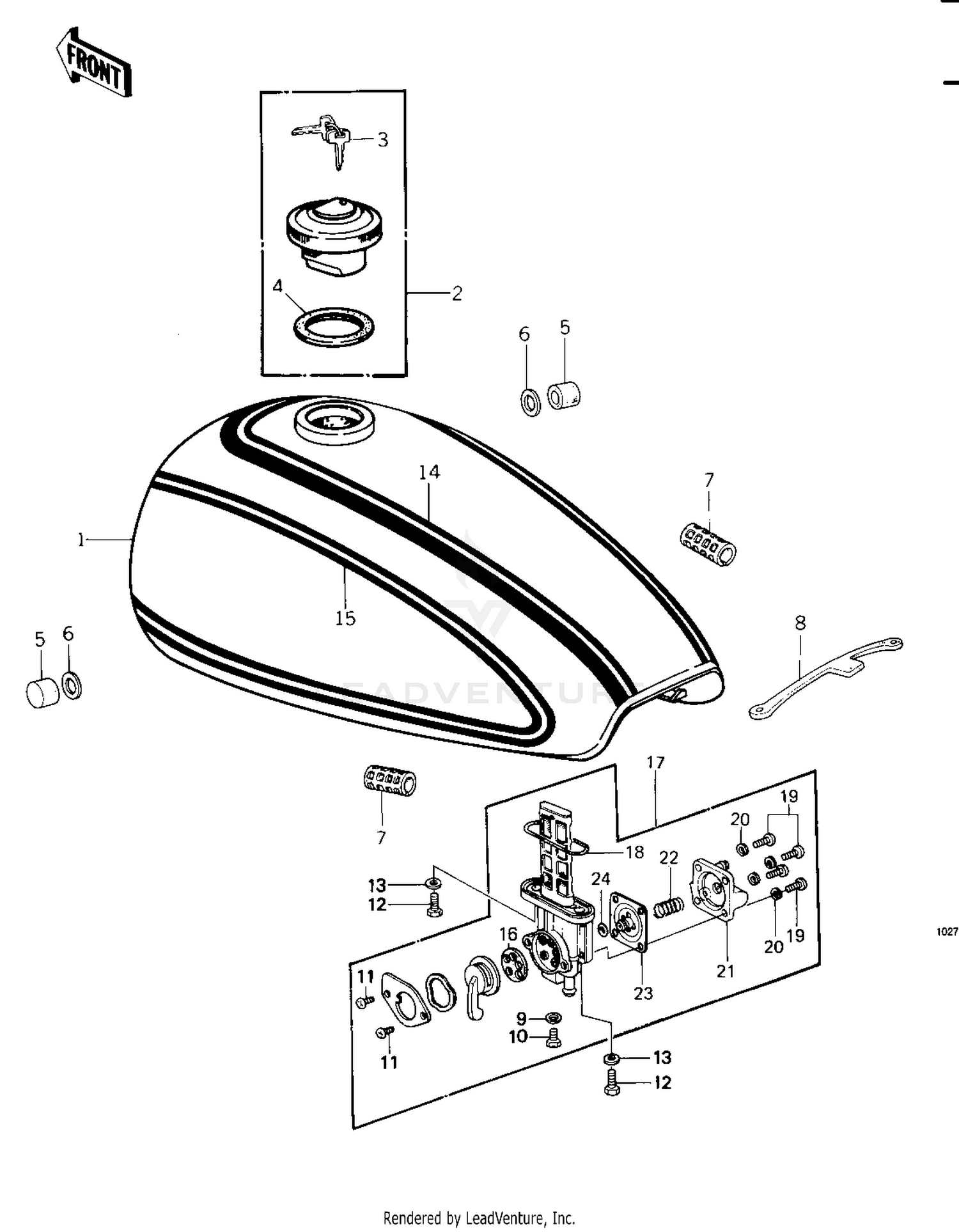

| Ref | Part Number | Description |
|---|
| 1 |
51001-4001-8C |
TANK-FUEL, Price: $414.29 |
| 2 |
51048-006 |
CAP,FUEL TANK LOCKING Price: $54.31 |
| 3 |
27008-053-65 |
KEY SET,TANK,#165 Price: $21.64 |
| 3 |
27008-053-66 |
KEY SET,TANK,#166 Price: $11.48 |
| 3 |
27008-053-67 |
KEY SET,TANK,#167 Price: $8.65 |
| 3 |
27008-053-68 |
KEY SET,TANK,#168 Price: $14.76 |
| 3 |
27008-053-69 |
KEY SET TANK,#169 Price: $10.96 |
| 4 |
51059-009 |
GASKET,FUEL TANK CAP Price: $7.75 |
| 5 |
92075-125 |
DAMPER,FUEL TANK Price: $6.22 |
| 6 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 7 |
92075-084 |
DAMPER,FUEL TANK Price: $10.04 |
| 8 |
92072-042 |
BAND,FUEL TANK Price: $15.19 |
| 9 |
11009-1045 |
GASKET,DRAIN BOLT Price: $1.36 |
| 10 |
92001-1089 |
BOLT,DRAIN Price: $13.16 |
| 11 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 12 |
92001-1091 |
BOLT,6X20 Price: $3.92 |
| 12 |
92001-114 |
BOLT-HEX HEAD,6X16 Price: $4.37 |
| 13 |
92022-183 |
WASHER,6.2X11X1.5 Price: $3.92 |
| 14 |
56029-194 |
FUEL TANK DECAL TOP Price: $27.16 |
| 15 |
56029-195 |
FUEL TANK DECAL RIGHT Price: $15.69 |
| 15 |
56029-196 |
FUEL TANK DECAL LEFT Price: $15.69 |
| 16 |
11009-1044 |
GASKET,FUEL TAP Price: $19.31 |
| 17 |
51023-1010 |
TAP ASSY,FUEL Price: $48.45 |
| 17 |
51023-1018 |
TAP ASSY,FUEL Price: $59.80 |
| 19 |
220AA0412 |
SCREW-PAN-CROS,4X12 This part replaces 220B0412. Price: $0.21 |
| 20 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 21 |
51036-1001 |
COVER ASSY,FUEL TAP Price: $35.60 |
| 22 |
92081-1054 |
SPRING,DIAPHRAGM Price: $8.97 |
| 23 |
16126-1011 |
DIAPHRAGM VALVE ASSY Price: $51.60 |
