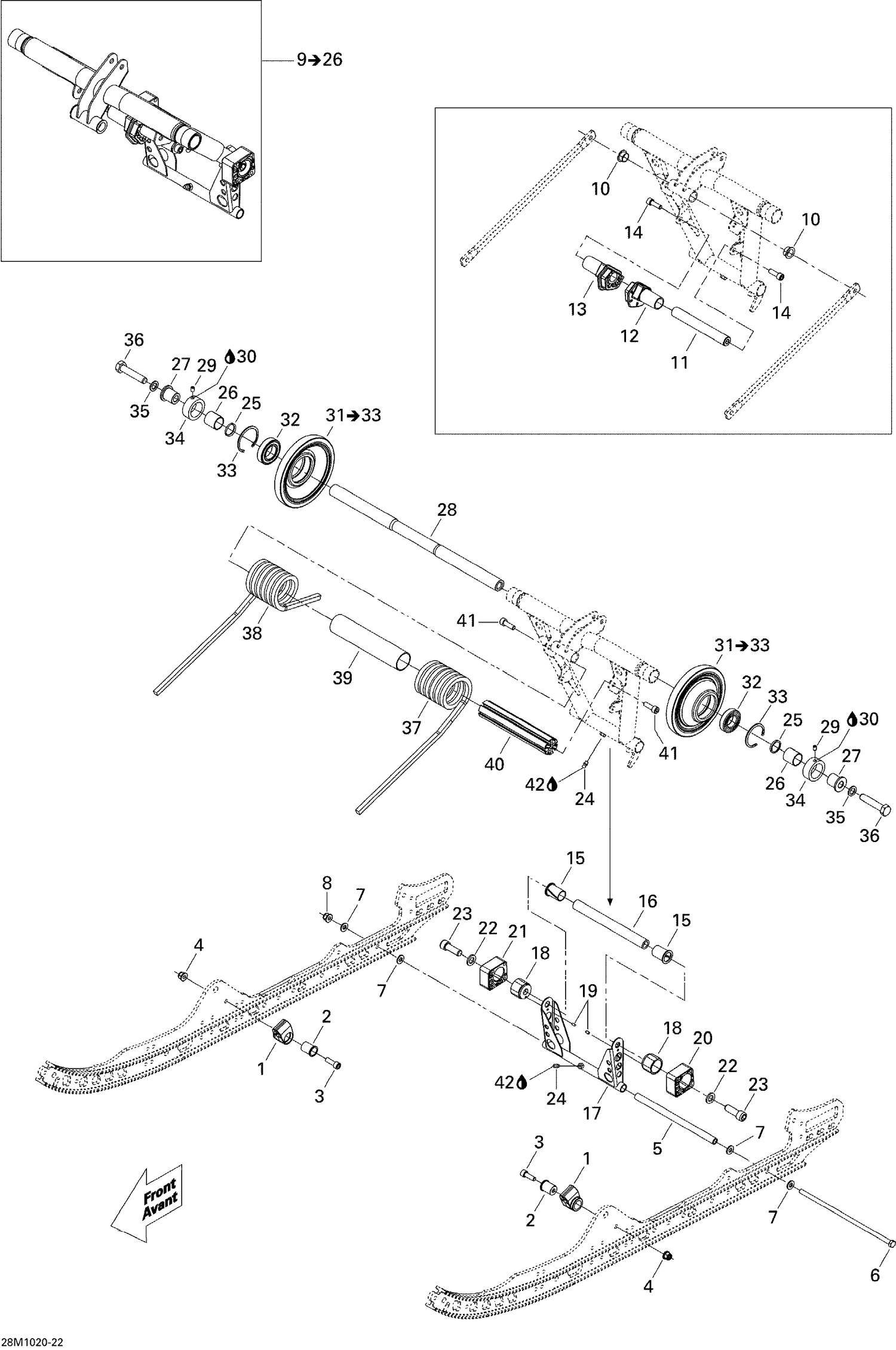

| Ref | Part Number | Description |
|---|
| 1 |
861805547 |
Spring Support Kit This part replaces 503191183. Price: $10.99 |
| 2 |
861805547 |
Spring Support Kit This part replaces 503190754. Price: $10.99 |
| 3 |
205082544 |
Socket Head Screw M8 X 25 Price: $1.19 |
| 4 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 5 |
503189156 |
Pivot Arm Axle Price: $21.99 |
| 6 |
503192440 |
Bolt M8 X 248mm This part replaces 732601198. Price: $31.99 |
| 7 |
503189157 |
Washer Price: $3.39 |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 10 |
503191555 |
Swivel Bushing Price: $7.83 |
| 11 |
503191178 |
Spring Cam Axe Price: $29.99 |
| 12 |
503191191 |
LH Spring Cam Price: $16.49 |
| 13 |
503191190 |
RH Spring Cam Price: $15.99 |
| 14 |
205582544 |
Socket Head Screw M8 X 25, Scotch Grip Price: $1.99 |
| 15 |
503191640 |
Cushion Price: $5.93 |
| 16 |
503192330 |
Lower Shaft This part replaces 503190687. Price: $46.99 |
| 17 |
503191302 |
Pivot Arm Price: $129.99 |
| 18 |
503189488 |
Block Guide Price: $41.99 |
| 19 |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership Price: $1.09 |
| 20 |
503192301 |
LH Block, 4 Positions Price: $26.99 |
| 21 |
503192300 |
RH Block, 4 Positions Price: $26.99 |
| 22 |
503189148 |
Washer Price: $2.89 |
| 23 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip Price: $2.99 |
| 24 |
408200700 |
Grease Fitting Price: $3.59 |
| 25 |
503191774 |
Washer Price: $2.39 |
| 26 |
503191773 |
Bushing Price: $16.79 |
| 27 |
503191775 |
Bushing Price: $17.39 |
| 28 |
503191776 |
Upper Shaft Price: $46.99 |
| 29 |
206260844 |
Socket Set Screw M6 X 8 Price: $1.49 |
| 30 |
293800060 |
Loctite 243, 10 ml Price: $21.49 |
| 32 |
503191778 |
Ball Bearing Price: $12.49 |
| 33 |
415129371 |
Retaining Ring Price: $12.49 |
| 34 |
503191782 |
Retaining Ring Price: $18.49 |
| 35 |
503189276 |
Washer Price: $3.39 |
| 36 |
207226044 |
HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership Price: $3.09 |
| 37 |
503191613 |
Black LH Spring, Square Price: $63.99 |
| 38 |
503191612 |
Black RH Spring, Square Price: $63.99 |
| 39 |
503191345 |
Plastic Bushing Price: $7.83 |
| 40 |
503191344 |
Spring Axle Price: $37.99 |
| 41 |
205582544 |
Socket Head Screw M8 X 25, Scotch Grip Price: $1.99 |
