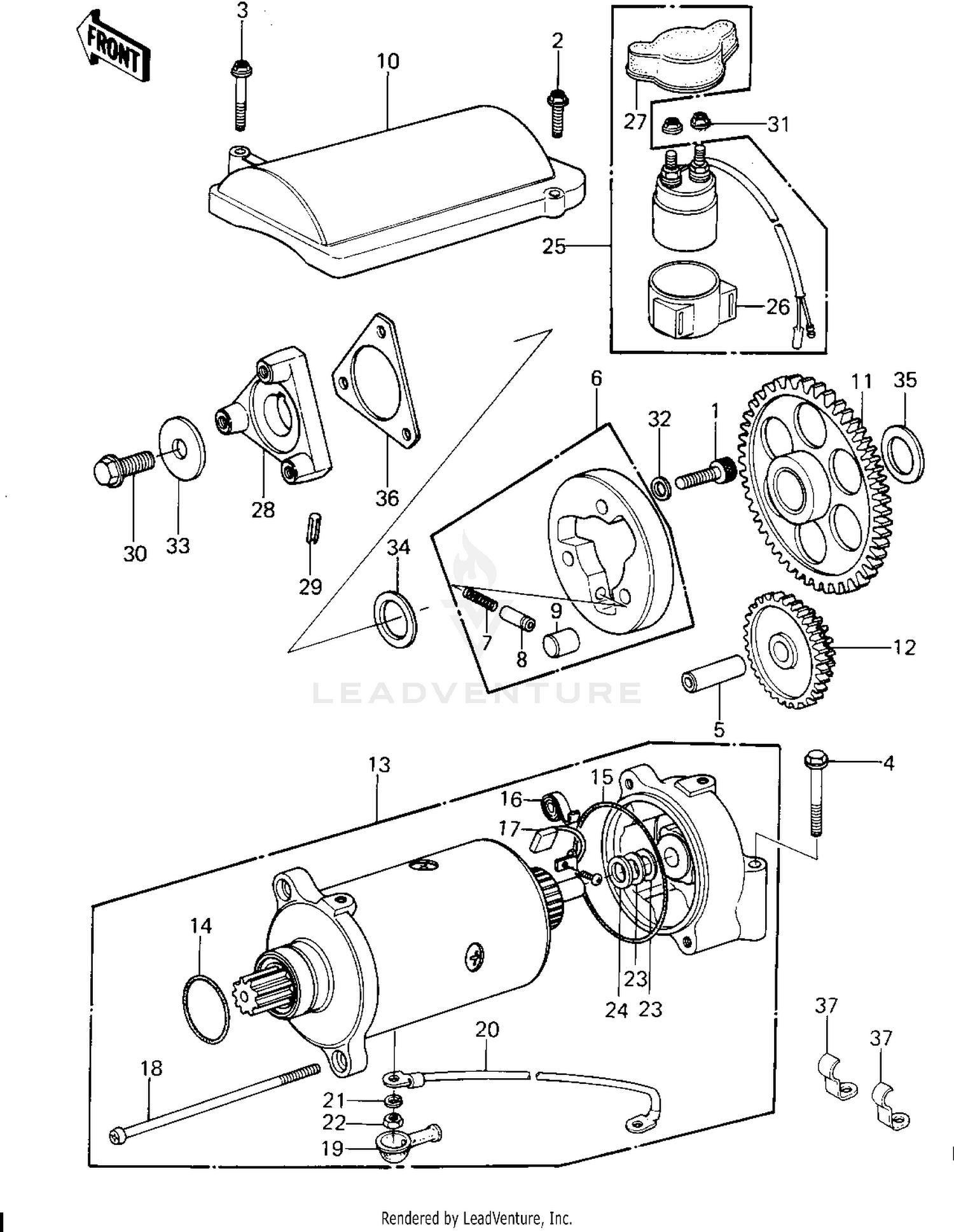

| Ref | Part Number | Description |
|---|
| 1 |
120CA0825 |
BOLT-SOCKET,8X25 This part replaces 120P0825. Price: $2.06 |
| 2 |
130AA0625 |
BOLT-FLANGED,6X25 This part replaces 130B0625. Price: $0.56 |
| 3 |
130AA0640 |
BOLT-FLANGED,6X40 This part replaces 130B0640. Price: $0.75 |
| 4 |
130BA0655 |
BOLT,FLANGED,6X55 This part replaces 130G0655. Price: $4.99 |
| 5 |
13002-019 |
PIN-PISTON Price: $17.71 |
| 6 |
13193-1062 |
CLUTCH-ASSY-ONEWAY This part replaces 13193-1012. Price: $186.82 |
| 7 |
92043-087 |
PIN Price: $12.76 |
| 8 |
92081-110 |
SPRING Price: $4.76 |
| 9 |
92122-004 |
ROLLER Price: $11.07 |
| 10 |
14025-1752 |
COVER,STARTER MOTOR Price: $78.58 |
| 11 |
16085-1010 |
GEAR,STARTER CLUTCH Price: $144.54 |
| 12 |
16085-1011 |
GEAR,STARTER REDUCTON Price: $81.30 |
| 13 |
21163-1014 |
STARTER-ELECTRIC Price: $518.02 |
| 14 |
92055-1276 |
RING-O This part replaces 21027-004. Price: $9.91 |
| 16 |
21040-003 |
SPRING,CARBON BRUSH Price: $8.56 |
| 17 |
21039-003 |
CARBON BRUSH Price: $40.76 |
| 18 |
21015-005 |
SCREW,PAN HEAD,6X110 Price: $9.81 |
| 19 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 20 |
26011-1094 |
WIRE-LEAD,STRTR MOTOR Price: $49.87 |
| 21 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 22 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 23 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 24 |
21025-010 |
WASHER,THRUST,1.6T Price: $6.30 |
| 25 |
27010-1025 |
SWITCH,MAGNETIC Price: $127.17 |
| 26 |
92161-1722 |
DAMPER,MAGNETIC SWITCH This part replaces 21064-002. Price: $19.64 |
| 27 |
14025-1165 |
COVER,MAGNETIC SWITCH Price: $16.46 |
| 28 |
49030-1006 |
HUB,TORSION DAMPER Price: $112.51 |
| 29 |
555A0406 |
PIN-SPRING,4X6 Price: $5.71 |
| 30 |
92001-1425 |
BOLT,FLANGED,12X25 Price: $14.24 |
| 31 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 32 |
92022-1108 |
WASHER,8.5X13.5X2 Price: $4.31 |
| 33 |
92022-1263 |
WASHER,PLAIN Price: $42.02 |
| 34 |
92025-1019 |
SHIM,25.3X36X0.3 Price: $6.02 |
| 35 |
92026-1059 |
SPACER,25X34X2.3 Price: $6.85 |
| 36 |
92026-1090 |
SPACER,TORSION DAMPER Price: $13.12 |
