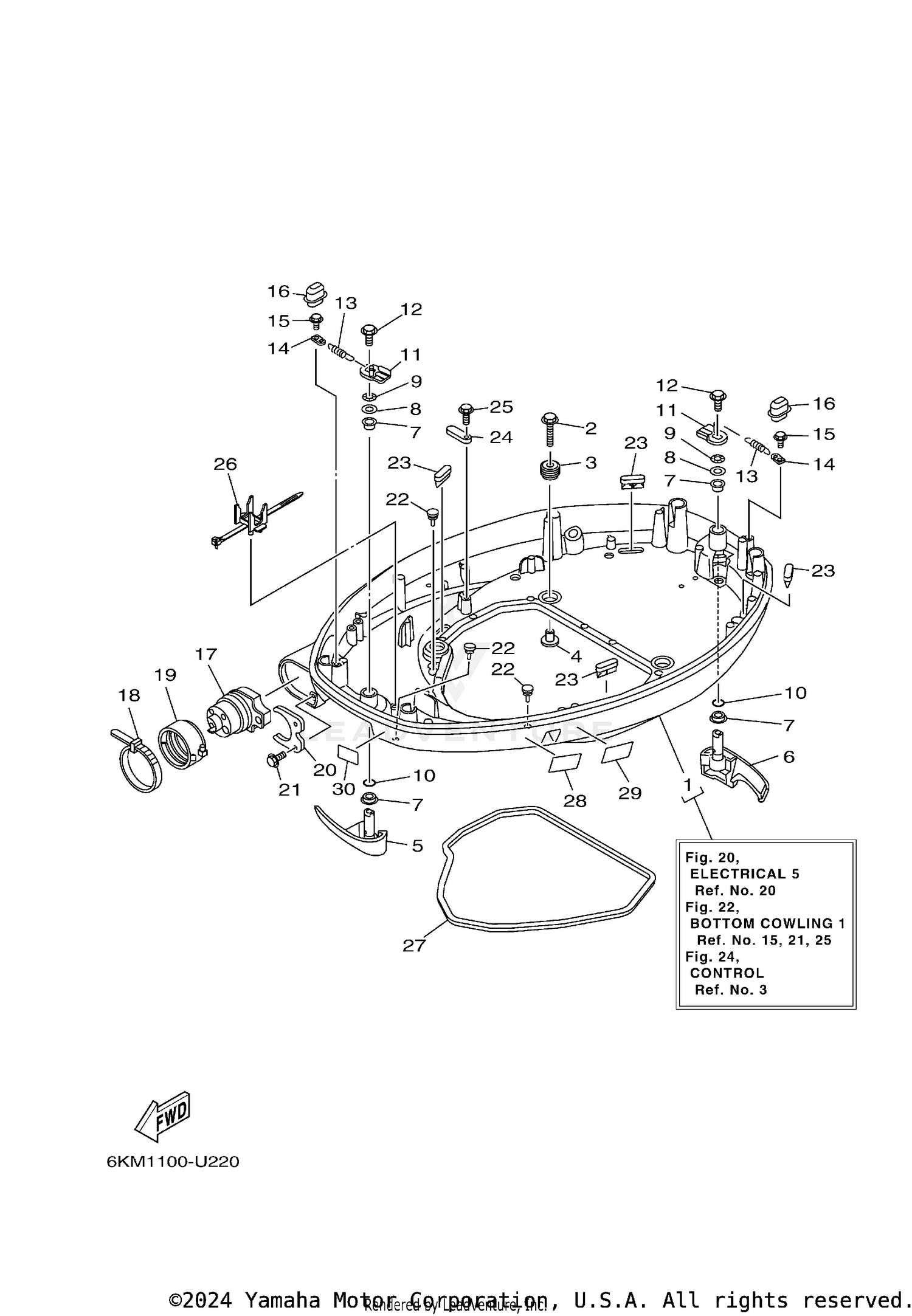

| Ref | Part Number | Description |
|---|
| 1 |
6EK-42710-01-00 |
BOTTOM COWLING ASSY Price: $618.45 |
| 2 |
90119-08187-00 |
BOLT, WITH WASHER Price: $3.49 |
| 3 |
90480-22M15-00 |
GROMMET Price: $13.75 |
| 4 |
90387-08M37-00 |
COLLAR Price: $11.40 |
| 5 |
6EK-42815-01-8D |
LEVER, CLAMP 1 Price: $51.70 |
| 6 |
6EK-42816-01-8D |
LEVER, CLAMP 2 Price: $88.40 |
| 7 |
90386-15M73-00 |
BUSH Price: $8.10 |
| 8 |
90201-156J2-00 |
WASHER, PLATE Price: $9.49 |
| 9 |
90206-15M18-00 |
WASHER, WAVE Price: $5.95 |
| 10 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 11 |
6CB-42818-00-00 |
LEVER, CLAMP 4 Price: $32.10 |
| 12 |
95D95-08012-00 |
BOLT, FLANGE DEEP Price: $1.50 |
| 13 |
90506-22001-00 |
SPRING, TENSION Price: $7.90 |
| 14 |
66T-43144-00-00 |
HOOK, SPRING Price: $6.25 |
| 15 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 16 |
6EK-42728-01-00 |
CAP Price: $3.00 |
| 17 |
6EK-42725-10-00 |
GROMMET Price: $25.05 |
| 20 |
6CB-42761-00-00 |
STOPPER Price: $23.55 |
| 21 |
90109-06316-00 |
BOLT Price: $1.90 |
| 22 |
6H4-42748-01-00 |
GROMMET Price: $1.55 |
| 23 |
67F-42717-00-00 |
RUBBER, SEAL 2 Price: $7.40 |
| 24 |
6E5-82588-00-00 |
PLATE Price: $28.55 |
| 25 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 26 |
688-82594-00-00 |
CLAMP Price: $11.55 |
| 27 |
6EK-42716-01-00 |
RUBBER SEAL 1 Price: $65.50 |
| 28 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) Price: $17.80 |
| 29 |
6EE-42794-51-00 |
LABEL, WARNING (GENERAL) Price: $21.55 |
