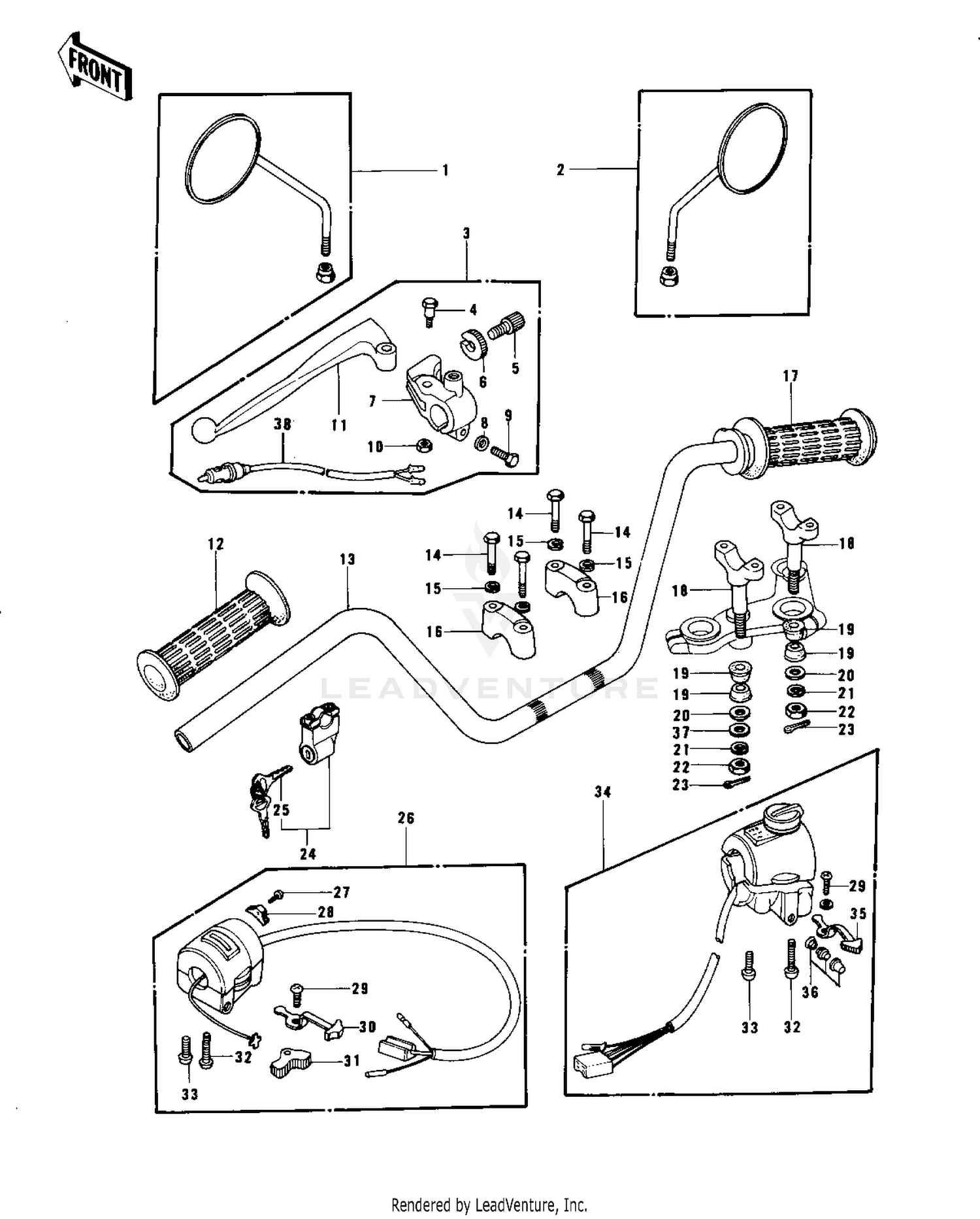

| Ref | Part Number | Description |
|---|
| 1 |
56003-019 |
REAR VIEW MIRROR,L.H Price: $69.05 |
| 2 |
56002-029 |
REAR VIEW MIRROR,R.H Price: $75.72 |
| 4 |
92007-047 |
BOLT,HEX HEAD Price: $13.77 |
| 5 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 10 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
| 11 |
46092-023 |
LEVER,CLUTCH Price: $35.96 |
| 12 |
46075-028 |
RUBBER,L.H GRIP Price: $39.98 |
| 13 |
46003-036 |
HANDLEBAR Price: $154.75 |
| 14 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 15 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 16 |
46012-008 |
HOLDER-HANDLEBAR Price: $37.74 |
| 17 |
46019-038 |
GRIP ASSY,THROTTLE Price: $118.44 |
| 18 |
46012-010 |
HOLDER-HANDLEBAR LOW Price: $30.76 |
| 19 |
92075-275 |
DAMPER RUBBER,HANDLE Price: $11.03 |
| 20 |
92022-196 |
WASHER-HANDLEBAR FIT Price: $4.63 |
| 21 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 23 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 26 |
46091-1079 |
HOUSING ASSY,CONT,L.H Price: $217.23 |
| 27 |
221B0308A |
SCREW CNTSNK HD 3X8 Price: $5.98 |
| 28 |
46044-013 |
KNOB,LIGHTING SW L.H Price: $12.37 |
| 30 |
46043-005 |
KNOB,LIGHTING SW L.H Price: $12.53 |
| 31 |
46028-006 |
BUTTON, HORN PUSH Price: $29.74 |
| 33 |
220AA0530 |
SCREW-PAN-CROS This part replaces 220B0530. Price: $3.70 |
| 34 |
46091-1039 |
HOUSING ASSY,R.H Price: $123.20 |
| 36 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
