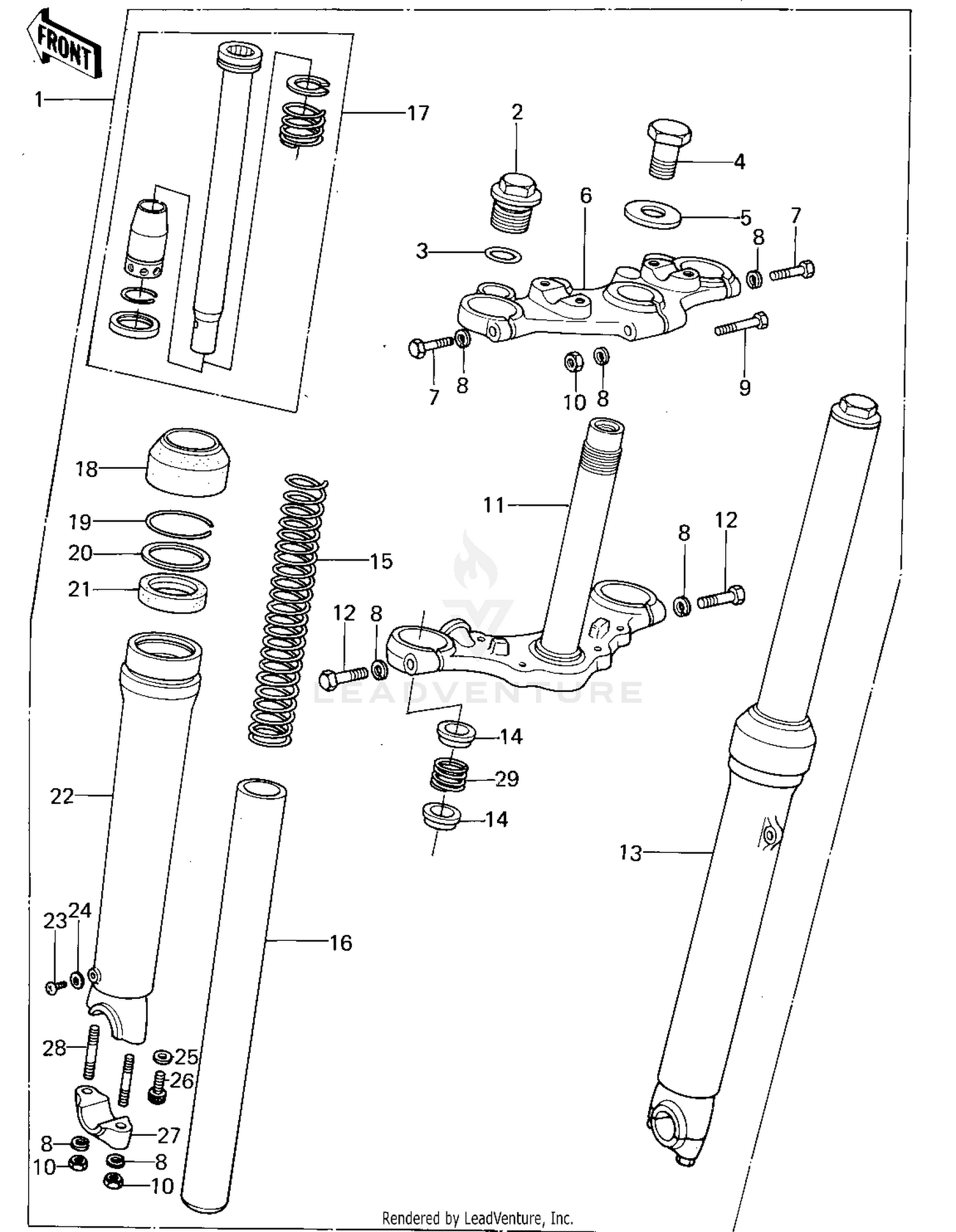

| Ref | Part Number | Description |
|---|
| 2 |
44062-010 |
BOLT,FORK TOP Price: $43.73 |
| 3 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 4 |
44041-007 |
BOLT STRNG STEM HEAD Price: $16.04 |
| 5 |
44043-016 |
WASHER STRNG STEM HD Price: $10.99 |
| 6 |
44039-080 |
HEAD,STEERING STEM Price: $186.22 |
| 7 |
44041-044 |
BOLT-STEERING STEM HD Price: $9.20 |
| 8 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 9 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 10 |
92017-013 |
NUT,LOCK,8MM Price: $10.35 |
| 11 |
44037-1006 |
STEM,STEERING Price: $295.75 |
| 12 |
92001-1076 |
BOLT,8X3 Price: $8.55 |
| 13 |
44006-1007 |
TUBE,RH,FORK OUTER Price: $173.42 |
| 14 |
44028-033 |
GUIDE,FORK SPRING Price: $8.73 |
| 15 |
44026-1015 |
SPRING,FORK INNER,LOW Price: $36.95 |
| 16 |
44013-1006 |
TUBE,FORK INNER Price: $191.37 |
| 17 |
44022-1010 |
CYLINDER-FORK Price: $86.06 |
| 18 |
44010-036 |
DUST SHIELD,FORK Price: $25.24 |
| 19 |
44044-012 |
CIRCLIP-OIL SEAL FIT Price: $29.65 |
| 20 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 21 |
44009-016 |
OIL SEAL Price: $24.39 |
| 22 |
44005-1007 |
TUBE,LH,FORK OUTER Price: $156.90 |
| 23 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 24 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 25 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 26 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 27 |
44063-011 |
HOLDER,FRONT AXLE Price: $36.54 |
| 28 |
172BA0830 |
BOLT-STUD,8X30 This part replaces 172G0830. Price: $2.56 |
