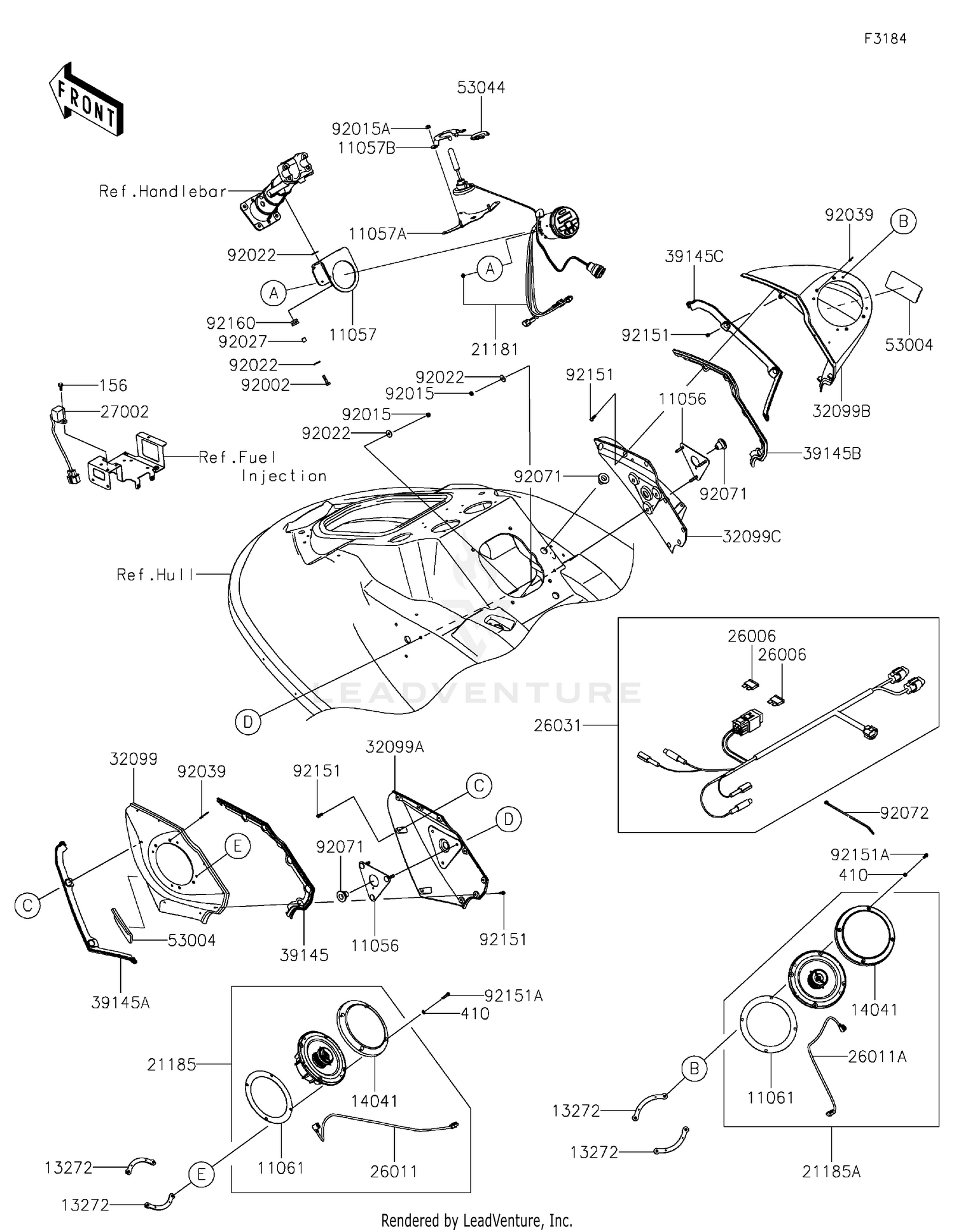

| Ref | Part Number | Description |
|---|
| 156 |
156R0616 |
BOLT-WP,6X16 Price: $3.65 |
| 11056 |
11056-2493 |
BRACKET,SPEAKER Price: $41.43 |
| 11057 |
11057-2591 |
BRACKET,AMP Price: $43.51 |
| 11057A |
11057-4154 |
BRACKET Price: $48.46 |
| 11057B |
11057-4155 |
BRACKET Price: $20.86 |
| 11061 |
11061-0901 |
GASKET Price: $14.76 |
| 13272 |
13272-2961 |
PLATE,SPEAKER Price: $13.13 |
| 14041 |
14041-0617 |
COVER-COMP Price: $177.34 |
| 21181 |
21181-0024 |
AMPLIFIER Price: $653.39 |
| 21185 |
21185-0012 |
SPEAKER,LH Price: $199.91 |
| 21185A |
21185-0013 |
SPEAKER,RH Price: $199.91 |
| 26006 |
26006-1078 |
FUSE,MINI BLADE,10A,RED This part replaces 26006-0009. Price: $4.87 |
| 26011 |
26011-0849 |
WIRE-LEAD,YELLOW Price: $54.58 |
| 26011A |
26011-0850 |
WIRE-LEAD,L.GRAY Price: $54.58 |
| 26031 |
26031-2617 |
HARNESS,AUDIO Price: $69.04 |
| 27002 |
27002-3703 |
RELAY-ASSY Price: $51.63 |
| 32099 |
32099-0801-839 |
CASE,SPEAKER,OUTER,LH,S.BLACK Price: $83.12 |
| 32099A |
32099-0802-839 |
CASE,SPEAKER,INNER,LH,S.BLACK Price: $24.49 |
| 32099B |
32099-0803-839 |
CASE,SPEAKER,OUTER,RH,S.BLACK Price: $83.12 |
| 32099C |
32099-0804-839 |
CASE,SPEAKER,INNER,RH,S.BLACK Price: $24.49 |
| 39145 |
39145-0721 |
TRIM-SEAL,UPP Price: $18.40 |
| 39145A |
39145-0722 |
TRIM-SEAL,LWR Price: $18.03 |
| 39145B |
39145-0723 |
TRIM-SEAL,UPP Price: $18.40 |
| 39145C |
39145-0724 |
TRIM-SEAL,LWR Price: $18.03 |
| 53004 |
53004-0614 |
MAT Price: $2.46 |
| 53044 |
53044-1171 |
TRIM,L=120 Price: $8.21 |
| 92002 |
92002-3714 |
BOLT,6X25 Price: $5.00 |
| 92015 |
92015-3766 |
NUT,LOCK,6MM Price: $5.91 |
| 92015A |
92015-3767 |
NUT,6MM Price: $4.69 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92027 |
92027-3705 |
COLLAR,6.2X10X10 Price: $8.86 |
| 92039 |
92039-3763 |
RIVET,3.2X8 Price: $1.81 |
| 92071 |
92071-3826 |
GROMMET Price: $3.64 |
| 92072 |
92072-3883 |
BAND,L=372.24 Price: $1.59 |
| 92151 |
92151-1581 |
BOLT,SOCKET,5X14 Price: $1.83 |
| 92151A |
92151-3709 |
BOLT,SOCKET,5X25 Price: $2.67 |
| 92160 |
92160-1167 |
DAMPER,10X20X12 Price: $4.69 |
