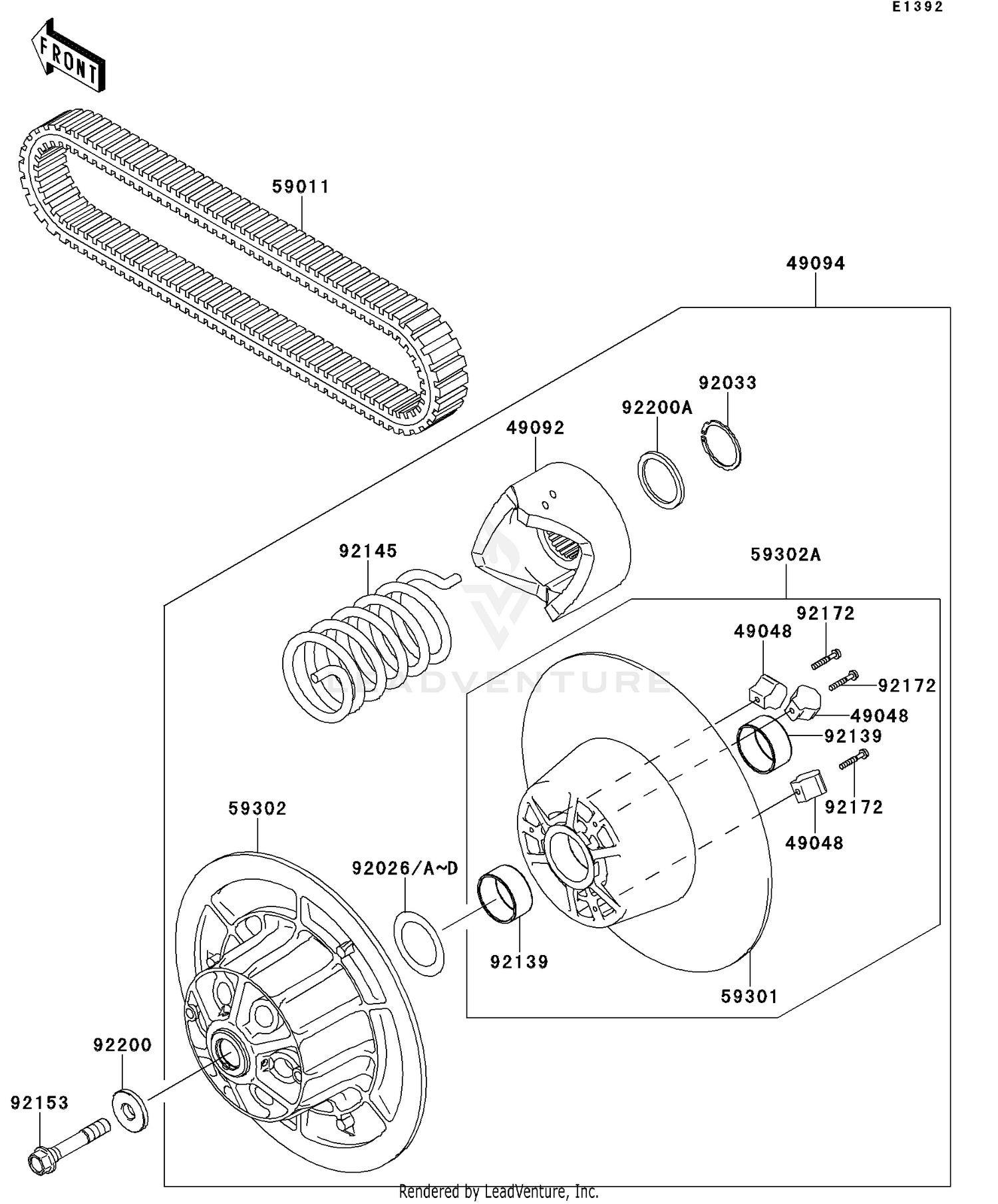

Driven Converter/Drive Belt
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 49048 | 49048-1097 | SHOE Price: $6.07 |
| 49092 | 49092-1069 | RAMP Price: $65.60 |
| 49094 | 49094-0090 | CONVERTER-ASSY-DRIVEN This part replaces 49094-0034. Price: $701.05 |
| 59011 | 59011-1087 | BELT Price: $257.28 |
| 59301 | 59301-1072 | SHEAVE-MOVABLE Price: $245.84 |
| 59302 | 59302-0045 | SHEAVE-COMP This part replaces 59302-0024. Price: $559.35 |
| 59302A | 59302-1104 | SHEAVE-COMP,MOVABLE Price: $349.63 |
| 92026 | 92026-0036 | SPACER,40.5X58X0.3 Price: $8.74 |
| 92026A | 92026-1625 | SPACER,40.5X58X1.0 Price: $8.74 |
| 92026B | 92026-1626 | SPACER,40.5X58X0.6 Price: $8.74 |
| 92026C | 92026-1627 | SPACER,40.5X58X1.4 Price: $8.74 |
| 92026D | 92026-1628 | SPACER,40.5X58X0.8 Price: $8.74 |
| 92033 | 92033-1317 | RING-SNAP Price: $6.12 |
| 92139 | 92139-1078 | BUSHING Price: $12.41 |
| 92145 | 92145-0047 | SPRING,DRIVEN CONVERT Price: $39.63 |
| 92153 | 92153-0509 | BOLT,12X70 Price: $8.74 |
| 92172 | 92172-0060 | SCREW,4X25 Price: $1.96 |
| 92200 | 92200-0069 | WASHER Price: $14.02 |
