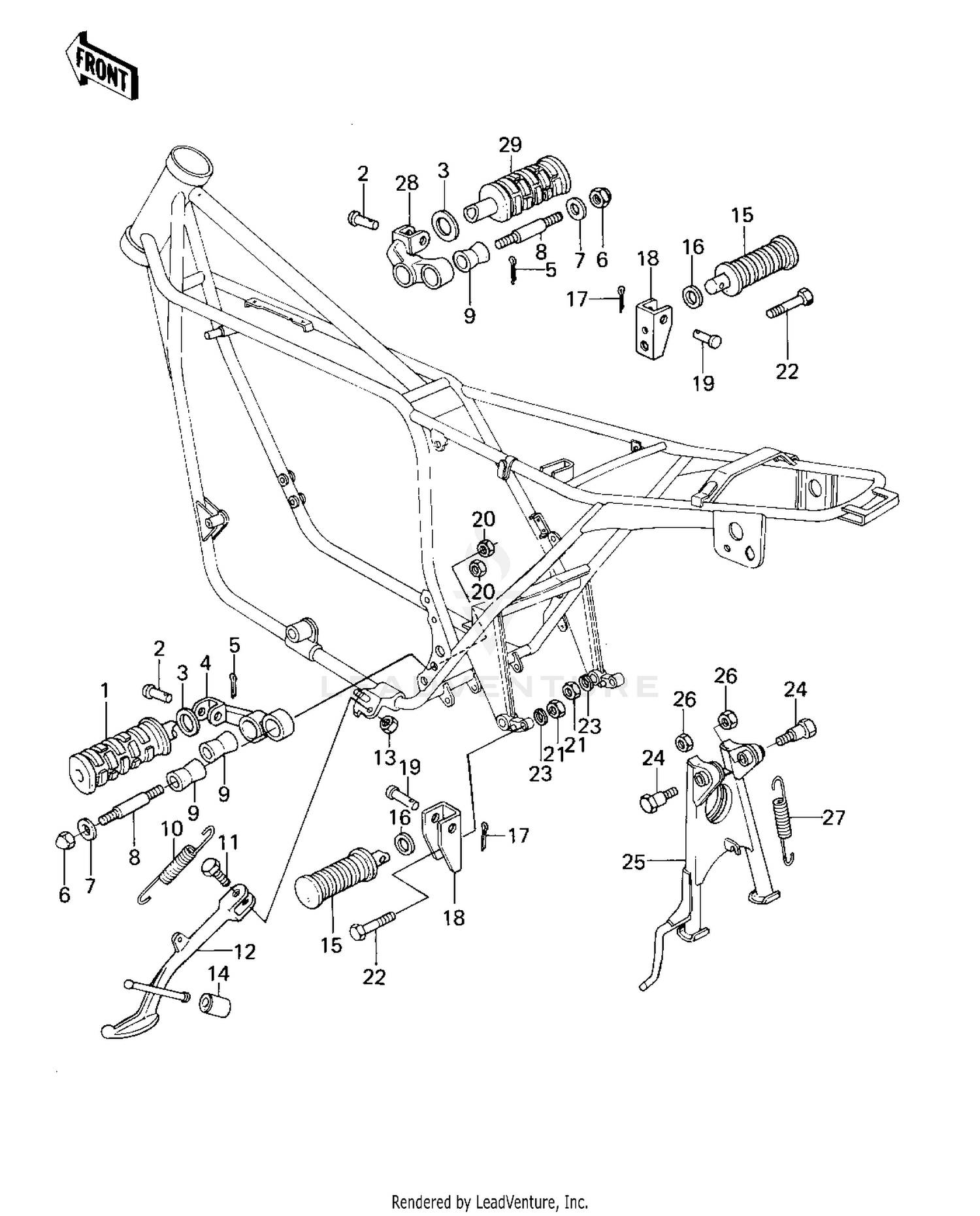

| Ref | Part Number | Description |
|---|
| 1 |
34028-011 |
BAR-FOOTREST,L.H Price: $29.20 |
| 2 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 3 |
92022-250 |
WASHER,25X36X2.3 Price: $5.00 |
| 4 |
34003-036 |
BRACKET,FOOTREST,L.H Price: $119.76 |
| 5 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 6 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 7 |
92102-010 |
CAP,FOOTRESTBAR Price: $8.49 |
| 8 |
92004-048 |
STUD,FOOTREST BAR FIT Price: $14.37 |
| 9 |
92075-140 |
DAMPER RUBBER,FOOTRST Price: $11.03 |
| 10 |
92145-0106 |
SPRING,STAND This part replaces 34025-005. Price: $7.58 |
| 11 |
92003-079 |
BOLT,SIDE STAND Price: $11.79 |
| 12 |
34024-1038 |
STAND-SIDE Price: $91.30 |
| 13 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 14 |
92160-1655 |
DAMPER,SIDE STAND This part replaces 92075-031. Price: $10.21 |
| 15 |
92076-027 |
RUBBER,FOOTREST Price: $37.21 |
| 16 |
92022-199 |
WASHER-PLAIN (OPT) Price: $11.60 |
| 17 |
550AA2012 |
PIN,COTTER,2.0X12 This part replaces 550D2012. Price: $1.11 |
| 18 |
32054-1021 |
BRACKET,STEP Price: $24.97 |
| 19 |
92043-1464 |
PIN,6X28 Price: $8.10 |
| 20 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 21 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 22 |
113G1028 |
BOLT,10X28 Price: $9.34 |
| 23 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 24 |
34019-014 |
SHAFT MAIN STAND Price: $32.19 |
| 25 |
34011-1015 |
STAND-MAIN Price: $244.70 |
| 26 |
92016-044 |
NUT,MAIN STAND FITT Price: $7.71 |
| 27 |
92145-0104 |
SPRING,CENTER STAND This part replaces 34023-012. Price: $16.24 |
| 28 |
34003-037 |
BRACKET,FOOTREST,R.H Price: $32.47 |
