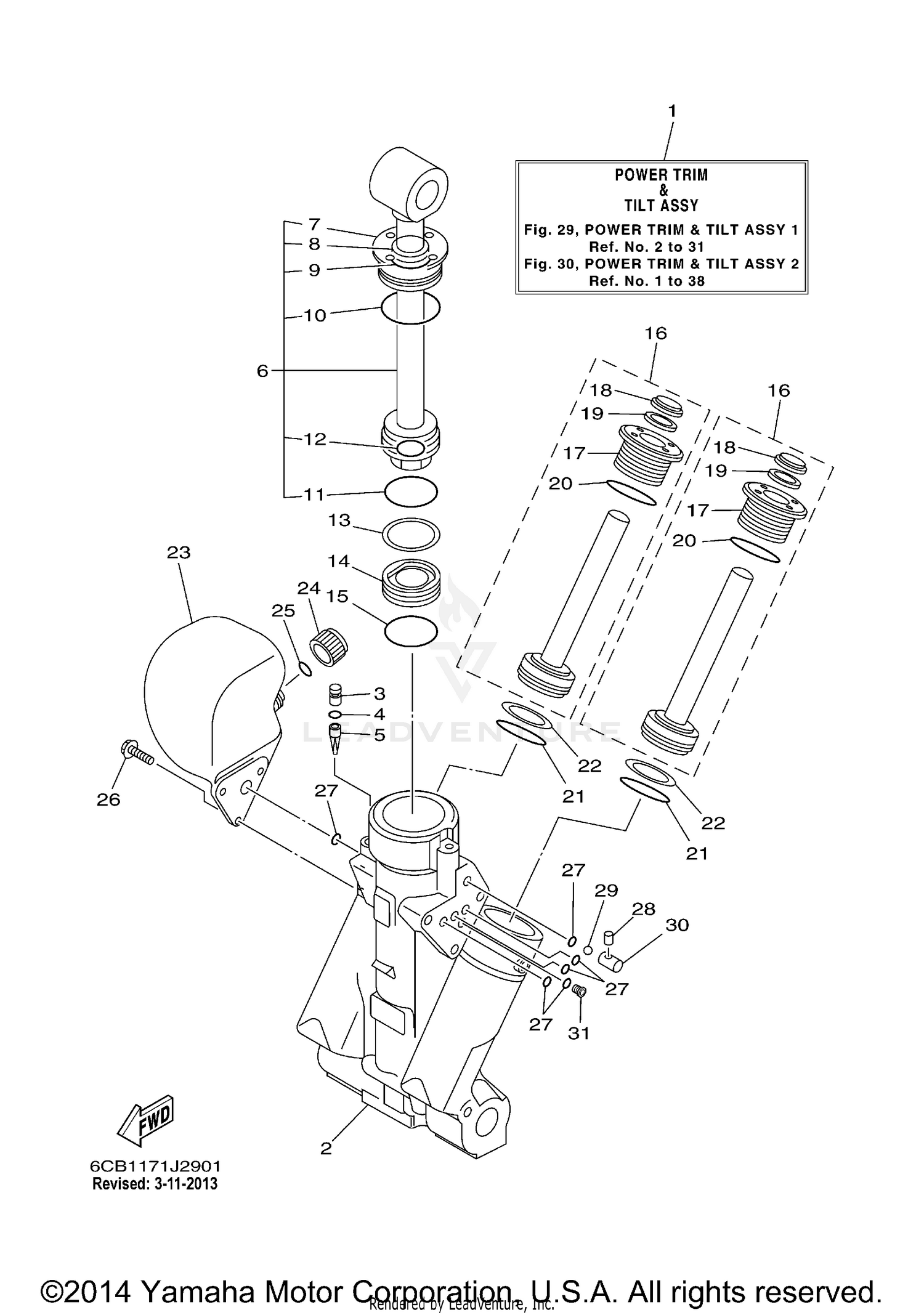

| Ref | Part Number | Description |
|---|
| 1 |
6CB-43800-03-8D |
POWER TRIM & TILT AS This part replaces 6CB-43800-01-00. Price: $3,532.35 |
| 2 |
6CB-43825-00-00 |
HOUSING, TRIM & TILT This part replaces 64E-43825-03-00. Price: $959.30 |
| 3 |
6AW-4388J-00-00 |
PLUG 2 Price: $12.75 |
| 4 |
6AW-43869-09-00 |
O-RING This part replaces 93210-10M74-00. Price: $4.95 |
| 5 |
64E-43817-00-00 |
FILTER 2 Price: $34.45 |
| 6 |
63P-43810-02-00 |
TILT PISTON SUB ASSY Price: $603.25 |
| 7 |
64E-43811-02-00 |
SCREW, CYLINDER END Price: $94.10 |
| 8 |
64E-43898-09-00 |
SEAL, DUST 2 This part replaces 64E-43898-00-00. Price: $17.35 |
| 9 |
64E-43867-09-00 |
O-RING 7 This part replaces 64E-43867-00-00. Price: $6.40 |
| 10 |
64E-43866-09-00 |
O-RING 6 This part replaces 64E-43866-00-00. Price: $6.40 |
| 11 |
6E5-43862-09-00 |
O-RING 2 This part replaces 6E5-43862-00-00. Price: $6.75 |
| 12 |
64E-43883-09-00 |
O-RING 10 This part replaces 64E-43883-00-00. Price: $6.25 |
| 13 |
6E5-43872-00-00 |
RING, BACK UP Price: $11.40 |
| 14 |
6E5-43814-02-00 |
PISTON, FREE Price: $38.45 |
| 15 |
6E5-43862-09-00 |
O-RING 2 This part replaces 6E5-43862-00-00. Price: $6.75 |
| 16 |
64E-43820-05-00 |
TRIM PISTON SUB ASSY This part replaces 6CB-43820-00-00. Price: $269.35 |
| 17 |
64E-43821-05-00 |
SCREW, TRIM CYLINDER This part replaces 64E-43821-02-00. Price: $92.85 |
| 18 |
64E-43822-00-00 |
SEAL, TRIM DUST Price: $15.10 |
| 19 |
64E-4384J-00-00 |
SEAL, TRIM DOWN Price: $23.35 |
| 20 |
6G5-43864-09-00 |
O-RING 4 This part replaces 6G5-43864-00-00. Price: $9.80 |
| 21 |
6E5-43864-09-00 |
O-RING 4 This part replaces 6E5-43864-00-00. Price: $6.55 |
| 22 |
6E5-43874-01-00 |
RING, BACK UP Price: $9.80 |
| 23 |
64E-43828-01-00 |
BODY, RESERVOIR Price: $240.90 |
| 24 |
64E-43829-01-00 |
PLUG, RESERVOIR Price: $45.00 |
| 25 |
64E-43897-09-00 |
O-RING This part replaces 64E-43897-00-00. Price: $17.35 |
| 26 |
64E-4388E-01-00 |
BOLT ,SCREW (L:14MM) Price: $8.60 |
| 27 |
64E-43869-09-00 |
O-RING 9 This part replaces 64E-43869-00-00. Price: $6.75 |
| 28 |
64E-4381G-00-00 |
PIN Price: $7.90 |
| 29 |
6E5-43858-00-00 |
BALL Price: $3.55 |
| 30 |
64E-4382G-00-00 |
VALVE, SEAT Price: $38.75 |
