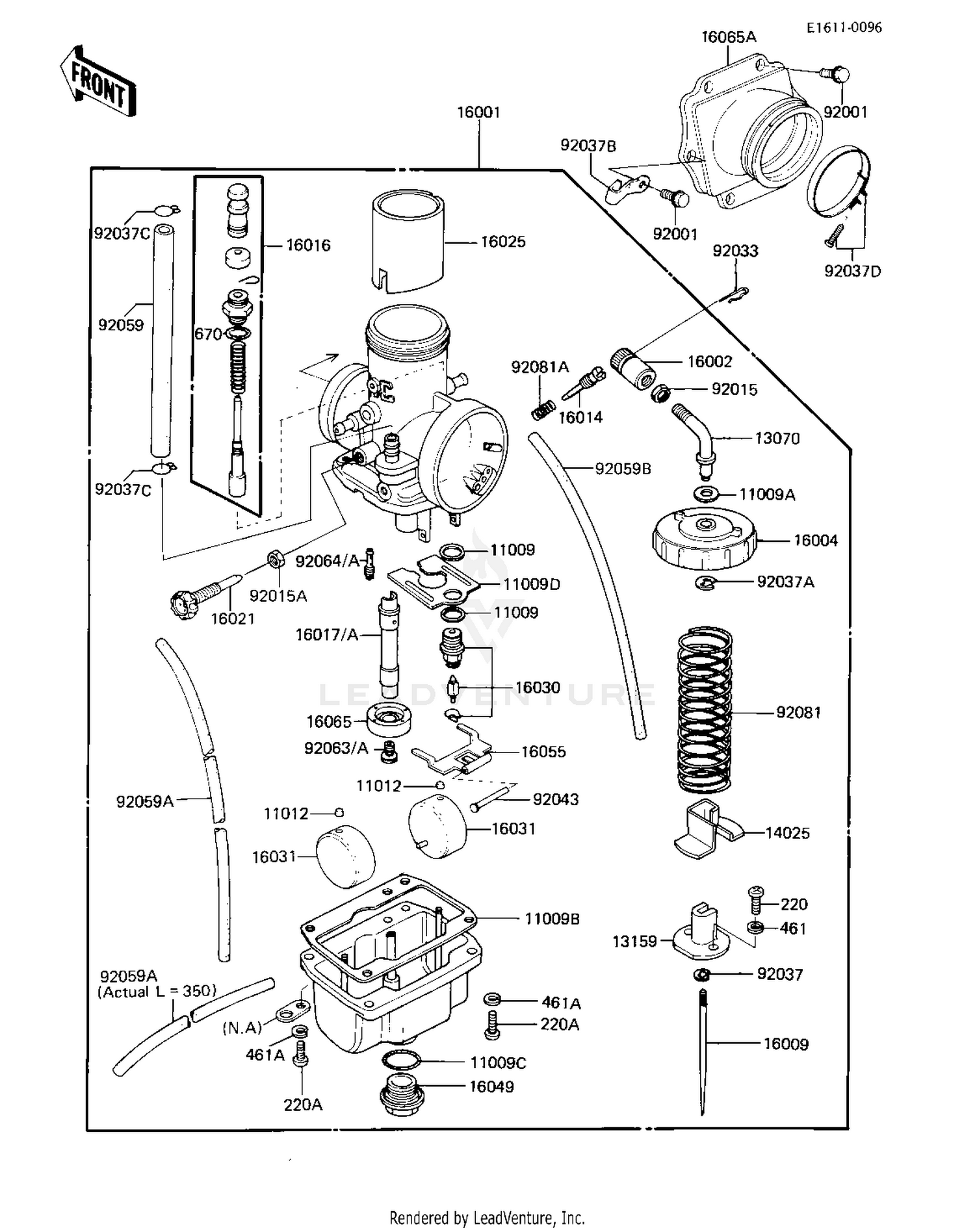

| Ref | Part Number | Description |
|---|
| 220 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
| 220A |
214AA0516 |
SCREW-PAN+- This part replaces 214B0516A. Price: $0.17 |
| 461 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 461A |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 11009 |
11009-1076 |
GASKET,FLOAT VALVE Price: $4.94 |
| 11009A |
11009-1191 |
GASKET,CABLE GUIDE Price: $9.73 |
| 11009B |
16019-028 |
GASKET,FLOAT CHAMBER Price: $19.49 |
| 11009C |
16038-009 |
GASKET-COVER Price: $9.73 |
| 11009D |
16038-019 |
BAFFLE-CARB Price: $18.24 |
| 11012 |
11012-1047 |
CAP,FLOAT Price: $6.54 |
| 13070 |
13070-1014 |
GUIDE,CABLE Price: $42.18 |
| 13159 |
13159-1010 |
CONNECTOR,THROTTLE Price: $14.79 |
| 14025 |
14025-1478 |
COVER,THROTTLE Price: $6.84 |
| 16001 |
16001-1583 |
CARBURETOR Price: $331.15 |
| 16002 |
16002-1006 |
ADJUSTER,CABLE Price: $10.89 |
| 16004 |
16004-1010 |
TOP,MIXING CHAMBER Price: $36.19 |
| 16009 |
16009-1126 |
NEEDLE-JET,6CG5 Price: $51.24 |
| 16014 |
16014-006 |
SCREW Price: $17.15 |
| 16016 |
16016-1026 |
PLUNGER,STARTER Price: $72.43 |
| 16017 |
16017-1125 |
JET-NEEDLE,S-2 Price: $31.43 |
| 16021 |
16021-1030 |
SCREW,THROT VLV ADJST Price: $25.52 |
| 16025 |
16025-1077 |
VALVE-THROTTLE,CA3.0 Price: $98.77 |
| 16030 |
16030-1027 |
VALVE-FLOAT,3.3 Price: $39.98 |
| 16031 |
16031-029 |
FLOAT Price: $64.25 |
| 16049 |
16049-006 |
COVER,MAIN JET Price: $20.47 |
| 16055 |
16055-009 |
ARM,FLOAT Price: $23.41 |
| 16065 |
16065-1052 |
HOLDER-CARBURETOR Price: $30.31 |
| 16065A |
16065-1059 |
HOLDER-CARBURETOR Price: $107.18 |
| 92001 |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 This part replaces 132G0620. Price: $2.49 |
| 92015 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 92015A |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 92033 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
16008-011 |
CIRCLIP,CABLE GUIDE Price: $6.85 |
| 92037B |
92037-016 |
CLAMP CABLE Price: $2.67 |
| 92037C |
92037-056 |
CLAMP,CARB CONECT HOS Price: $6.60 |
| 92037D |
92037-1313 |
CLAMP,CARBURETOR HOLD Price: $12.97 |
| 92043 |
16032-008 |
PIN,FLOAT Price: $6.57 |
| 92059 |
92059-1026 |
HOSE,FUEL,6.5OX11.5O Price: $16.57 |
| 92059A |
92059-147 |
HOSE,FUEL OVERFLOW This part replaces 92059-1142. Price: $36.17 |
| 92059B |
92059-1250 |
TUBE,3.5X6.5X450 Price: $6.61 |
| 92063A |
92063-121 |
JET-MAIN NO 152.5R Price: $10.41 |
| 92064 |
92064-044 |
JET-PILOT NO 45 Price: $19.70 |
| 92064A |
92064-1062 |
JET-PILOT,#70 Price: $11.77 |
| 92081 |
16006-028 |
SPRING,THROTTLE VALVE Price: $11.14 |
| 92081A |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
