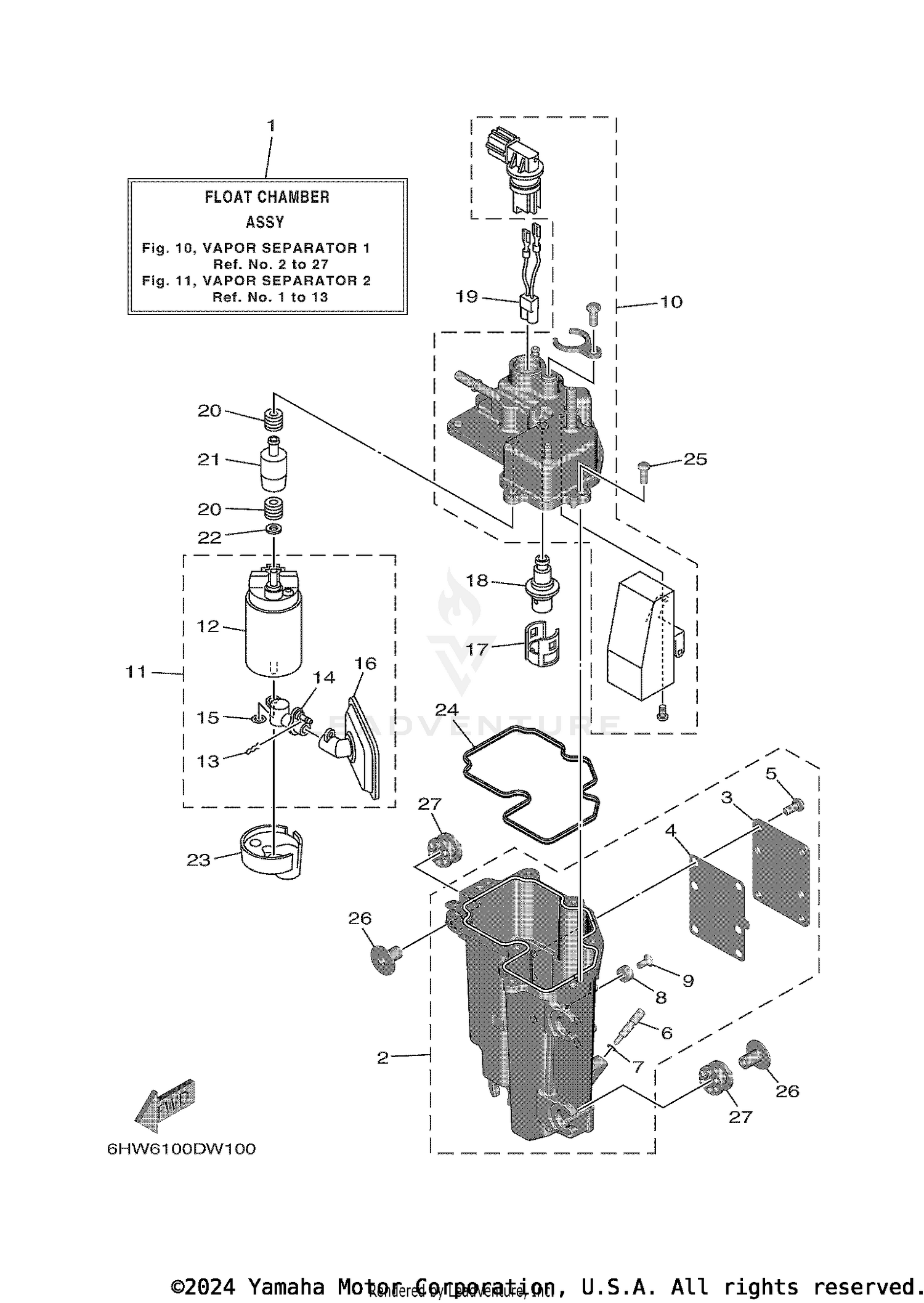

VAPOR SEPARATOR 1
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6FP-14180-03-00 | FLOAT CHAMBER ASSY Price: $1,367.95 |
| 2 | 6FP-14960-00-00 | BODY ASSY Price: $252.30 |
| 3 | 6FP-24452-00-00 | COVER, COOLER Price: $24.65 |
| 4 | 6FP-24462-00-00 | GASKET, COOLER Price: $10.40 |
| 5 | 6FP-14591-00-00 | SCREW Price: $1.65 |
| 6 | 6C5-14191-00-00 | PLUG, DRAIN Price: $5.80 |
| 7 | 6C5-14397-00-00 | O-RING Price: $6.75 |
| 8 | 63P-11325-21-00 | ANODE Price: $10.55 |
| 9 | 6FP-24444-00-00 | SCREW Price: $2.25 |
| 10 | 6FP-14182-01-00 | COVER, FLOAT CHAMBER Price: $633.15 |
| 11 | 6FP-13910-01-00 | FUEL PUMP ASSY Price: $200.95 |
| 13 | 6BG-14137-00-00 | CLIP Price: $22.15 |
| 15 | 6C5-14127-10-00 | CLIP Price: $7.20 |
| 16 | 6FP-13915-00-00 | FILTER Price: $50.20 |
| 17 | 6FP-13927-00-00 | SUPPORT Price: $16.35 |
| 18 | 6FP-13906-00-00 | REGULATOR, PRESSURE Price: $89.10 |
| 19 | 6FP-87226-00-00 | WIRE HARNESS ASSY Price: $17.75 |
| 20 | 6FP-13781-00-00 | SEAL, FUEL PUMP FILTER Price: $8.10 |
| 21 | 6FP-13132-00-00 | ADAPTOR Price: $12.00 |
| 22 | 6FP-13716-00-00 | SPECER, FUEL PUMP Price: $4.80 |
| 23 | 6FP-13593-00-00 | DAMPER This part replaces 6FP-13593-01-00. Price: $37.35 |
| 24 | 6FP-14984-00-00 | GASKET, FLOAT CHAMBER Price: $17.00 |
| 25 | 6C5-14567-00-00 | SCREW Price: $12.45 |
| 26 | 90387-06M03-00 | COLLAR Price: $10.40 |
