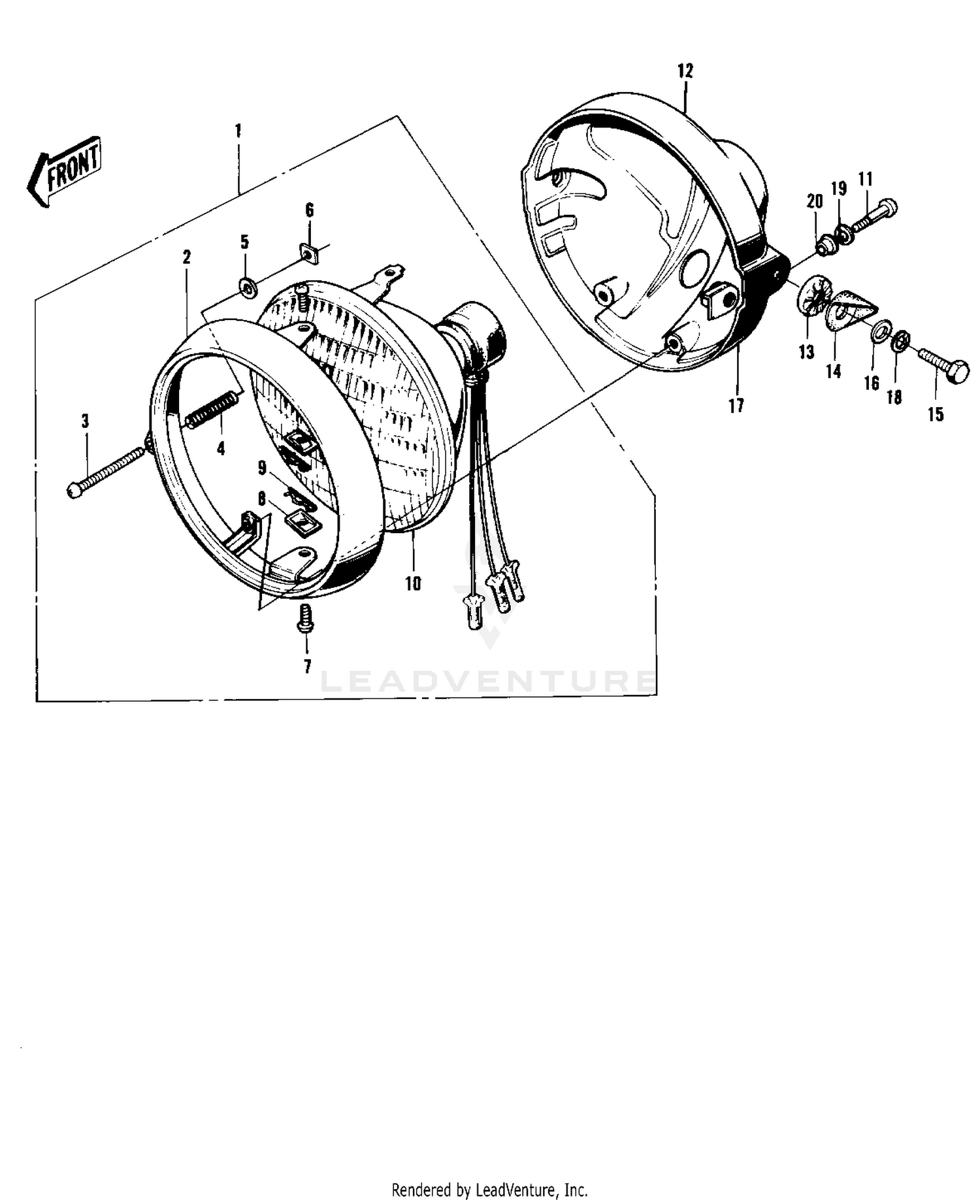

| Ref | Part Number | Description |
|---|
| 1 |
23003-015 |
LAMP UNIT-HEAD Price: $166.43 |
| 2 |
23006-028 |
RIM-HEAD LAMP Price: $62.33 |
| 3 |
23019-021 |
SCREW FORCUS ADJUST Price: $4.69 |
| 4 |
23014-005 |
SPRING FOCUS ADJUST Price: $3.62 |
| 5 |
23021-004 |
WASHER Price: $2.91 |
| 6 |
23020-016 |
NUT Price: $2.21 |
| 7 |
23019-018 |
SCREW LENS UNIT FITT Price: $3.42 |
| 8 |
23020-009 |
NUT LENS UNIT FITTING Price: $4.75 |
| 9 |
23022-001 |
PIN LENS UNIT FITTING Price: $3.94 |
| 10 |
23007-032 |
LENS UNIT-HEAD LAMP Price: $105.59 |
| 11 |
92009-1947 |
SCREW,5MM This part replaces 92011-024. Price: $2.58 |
| 13 |
23021-011 |
WASHER-LOCK Price: $5.25 |
| 14 |
91075-134 |
UNAVAILABLE IN PRICE BOOK Price: Call Us |
| 15 |
92007-024 |
BOLT,10MM Price: $8.06 |
| 16 |
92200-1313 |
WASHER This part replaces 411D1000. Price: $4.78 |
| 17 |
23020-017 |
NUT Price: $4.05 |
| 18 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 19 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
