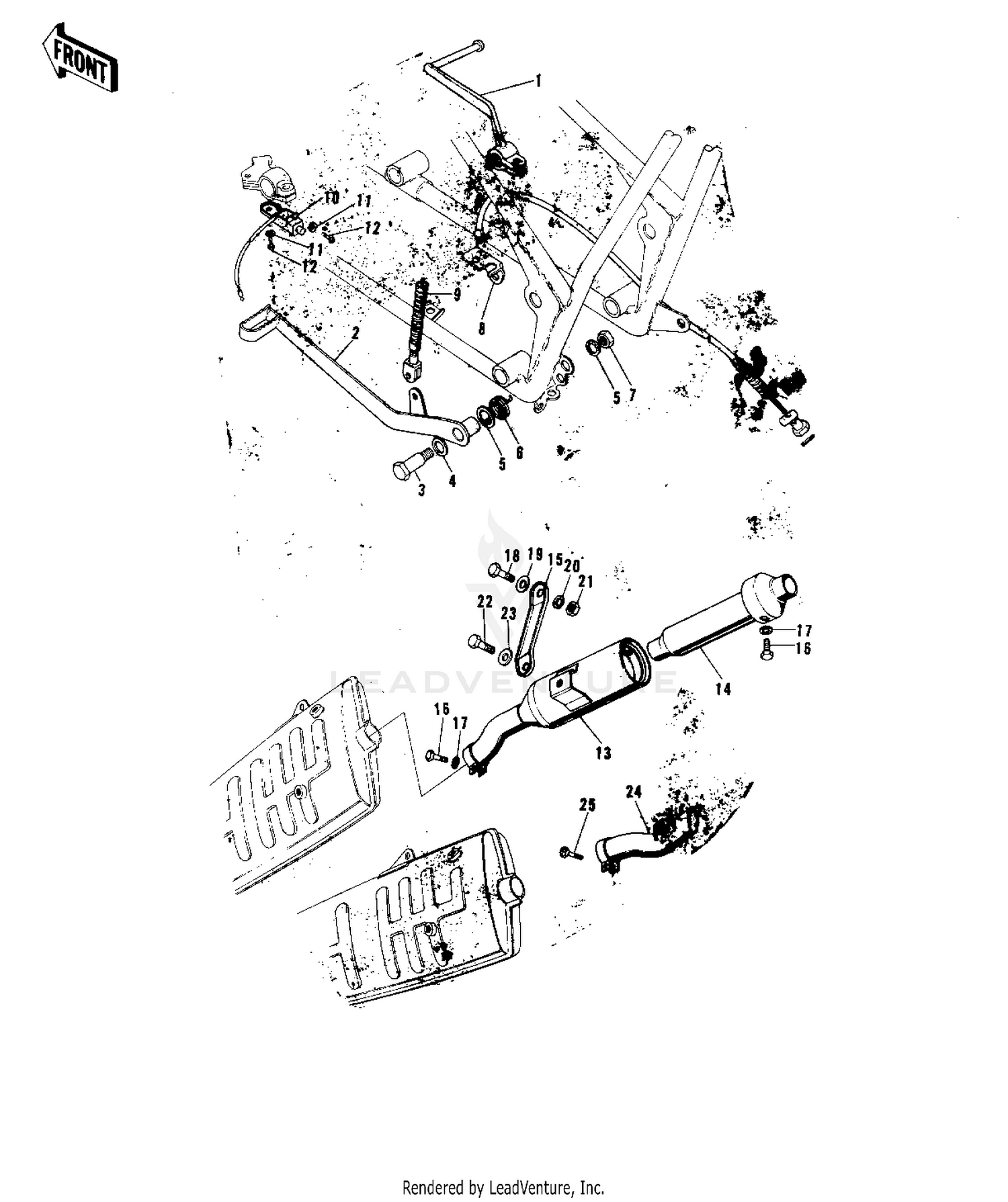

| Ref | Part Number | Description |
|---|
| 1 |
13156-037 |
PEDAL GR CHG RH OPT Price: $29.69 |
| 2 |
43001-040 |
PEDAL-BRAKE (OPT) Price: $30.73 |
| 3 |
92001-092 |
BOLT-BRAKE PEDAL Price: $14.63 |
| 4 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 5 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 6 |
43005-014 |
SPRING-BRAKE PEDAL Price: $4.65 |
| 7 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 8 |
32087-012 |
BRACKET-REAR BRAKE CABLE Price: Call Us |
| 9 |
54022-019 |
CABLE-REAR BRAKE Price: $15.81 |
| 11 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 12 |
220AA0306 |
SCREW-PAN-CROS,3X6 This part replaces 220B0306. Price: $0.64 |
| 13 |
18048-013 |
TAIL PIECE Price: $35.36 |
| 14 |
18033-044 |
SPARK ARRESTER COMP Price: $37.37 |
| 15 |
18024-016 |
BRACKET-MUFFLER Price: $7.04 |
| 16 |
112BA0610 |
BOLT-UPSET,6X10 This part replaces 112G0610. Price: $0.58 |
| 17 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 18 |
110B1035 |
BOLT-HEX HEAD,10X35 Price: $4.02 |
| 19 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 20 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 21 |
312B1000 |
NUT 10MM Price: $1.10 |
| 22 |
115AA0814 |
BOLT-SMALL-UPSET,8X14 This part replaces 115B0814. Price: $0.59 |
| 23 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 24 |
18048-016 |
TAIL PIECE Price: $15.50 |
