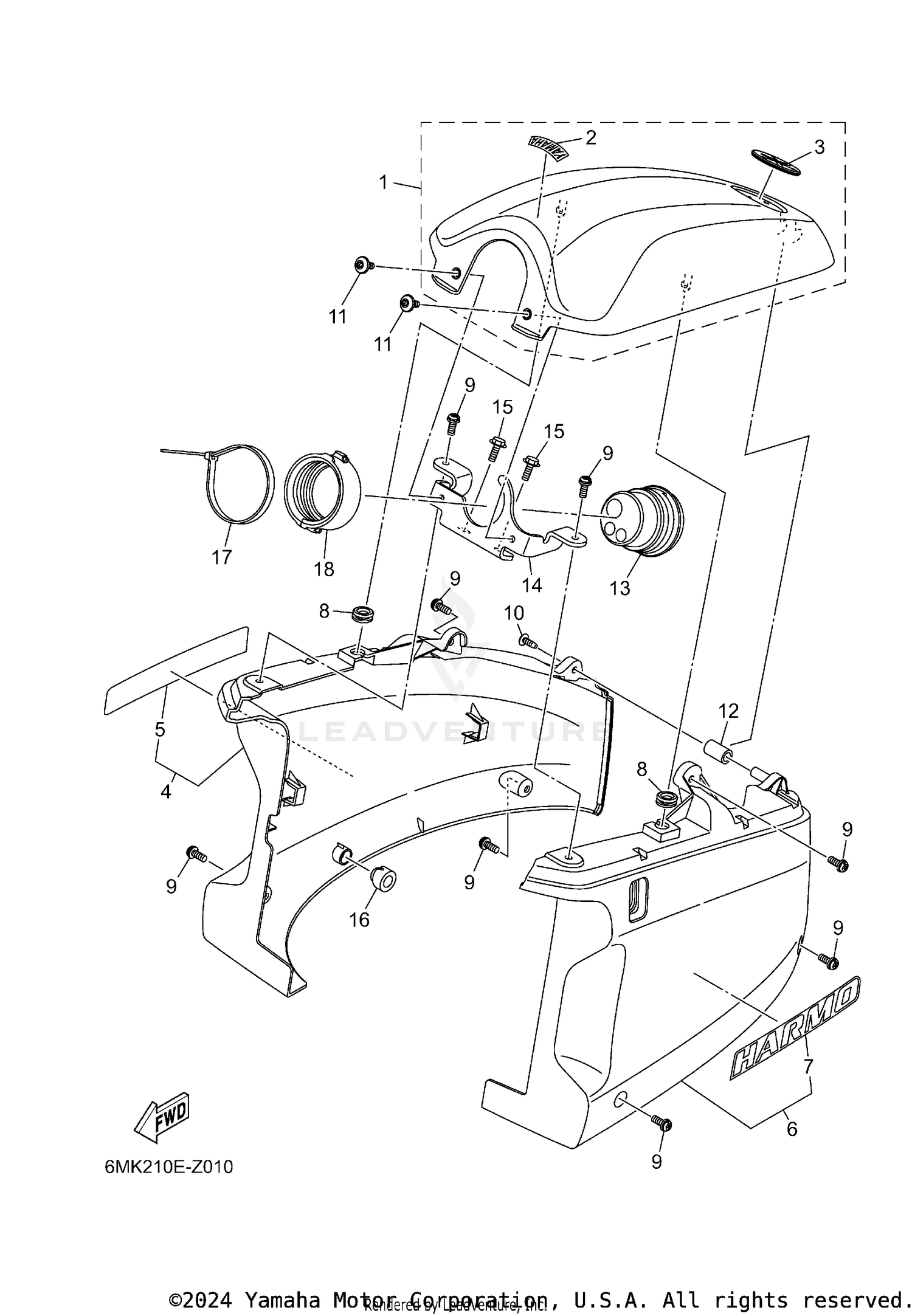

TOP COWLING
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6MK-Y427V-00-8D | APRON COVER COMP. ASSY. Price: $92.35 |
| 4 | 6MK-Y427E-00-8D | APRON, 1 ASSY. Price: $47.70 |
| 6 | 6MK-Y427H-00-8D | APRON, 2 ASSY. Price: $47.70 |
| 8 | 90480-14M17-00 | GROMMET Price: $3.20 |
| 9 | 90159-06062-00 | SCREW, WITH WASHER Price: $1.15 |
| 10 | 97780-50016-00 | SCREW, TAPPING Price: $2.45 |
| 11 | 90111-06144-00 | BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 12 | 6MK-42768-00-00 | DAMPER Price: $45.65 |
| 13 | 6MK-42725-00-00 | GROMMET Price: $429.35 |
| 14 | 6MK-42761-00-00 | STOPPER Price: $609.00 |
| 15 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 17 | 90464-20258-00 | CLAMP Price: $5.60 |
