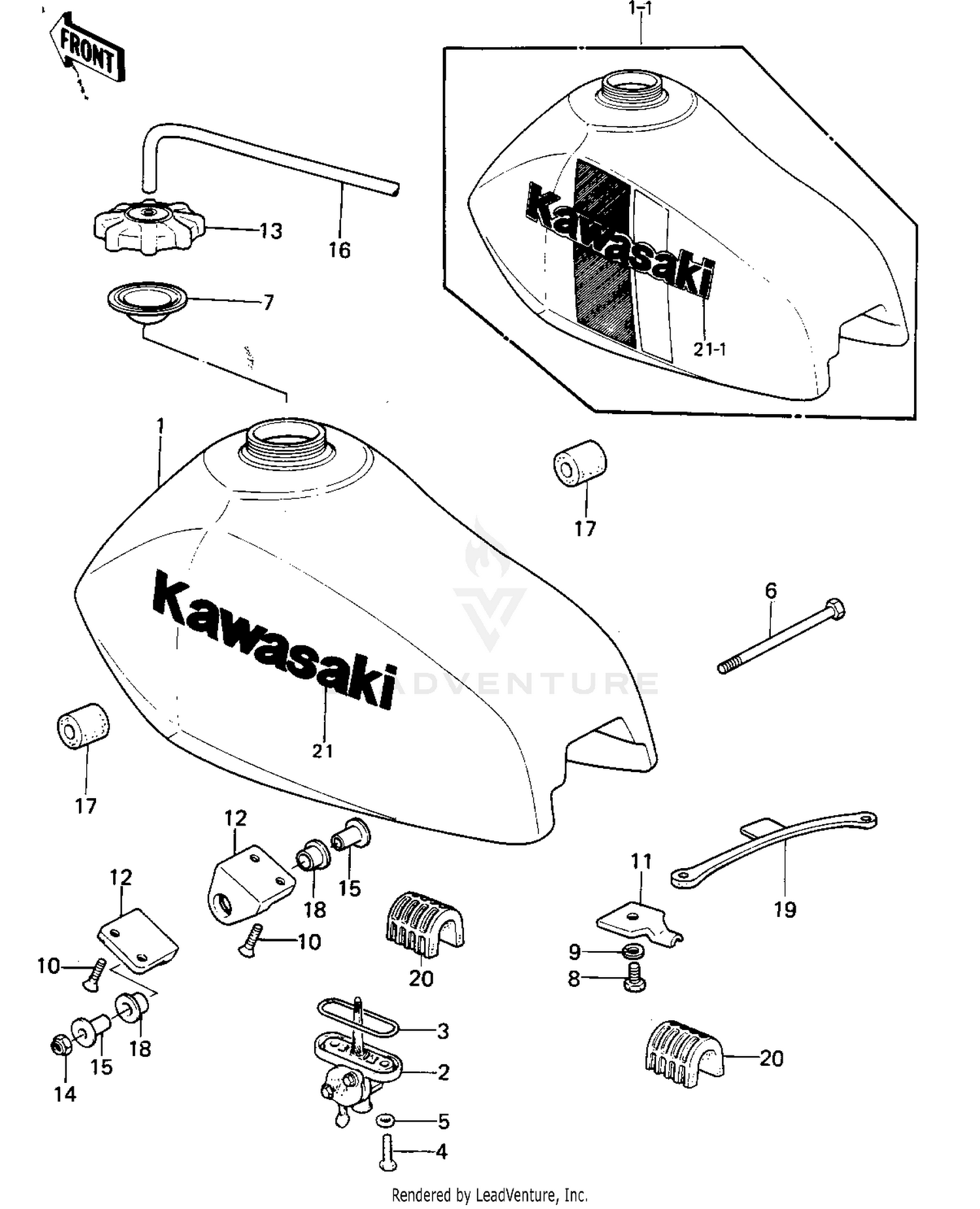

| Ref | Part Number | Description |
|---|
| 2 |
51023-4002 |
COCK ASSY,FUEL Price: $29.05 |
| 3 |
51039-003 |
O RING Price: $6.27 |
| 4 |
92001-1091 |
BOLT,6X20 Price: $3.92 |
| 5 |
92022-183 |
WASHER,6.2X11X1.5 Price: $3.92 |
| 6 |
112G06105 |
BOLT-UPSET,6X105 Price: $4.66 |
| 7 |
11009-1452 |
GASKET,FUEL TANK Price: $22.59 |
| 8 |
112BA0610 |
BOLT-UPSET,6X10 This part replaces 112G0610. Price: $0.58 |
| 9 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 10 |
221AA0614 |
SCREW-CSK-CROS,6X14 This part replaces 221B0614. Price: $3.72 |
| 11 |
32052-1009 |
BRACKET,FUEL TANK Price: $6.83 |
| 12 |
32052-1010 |
BRACKET,FUEL TANK Price: $49.87 |
| 13 |
51049-1006 |
CAP-TANK,FUEL Price: $33.34 |
| 14 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 15 |
92026-1015 |
SPACER,FUEL TANK Price: $14.13 |
| 16 |
92059-1022 |
TUBE,VINYL Price: $3.58 |
| 17 |
92075-1047 |
DAMPER RUBBER,FUEL Price: $4.71 |
| 18 |
92075-1048 |
DAMPER RUBBER,FUEL Price: $6.18 |
| 19 |
92072-1033 |
BAND,FUEL TANK Price: $8.72 |
| 20 |
92075-1027 |
DAMPER RUBBER,FUEL Price: $11.95 |
