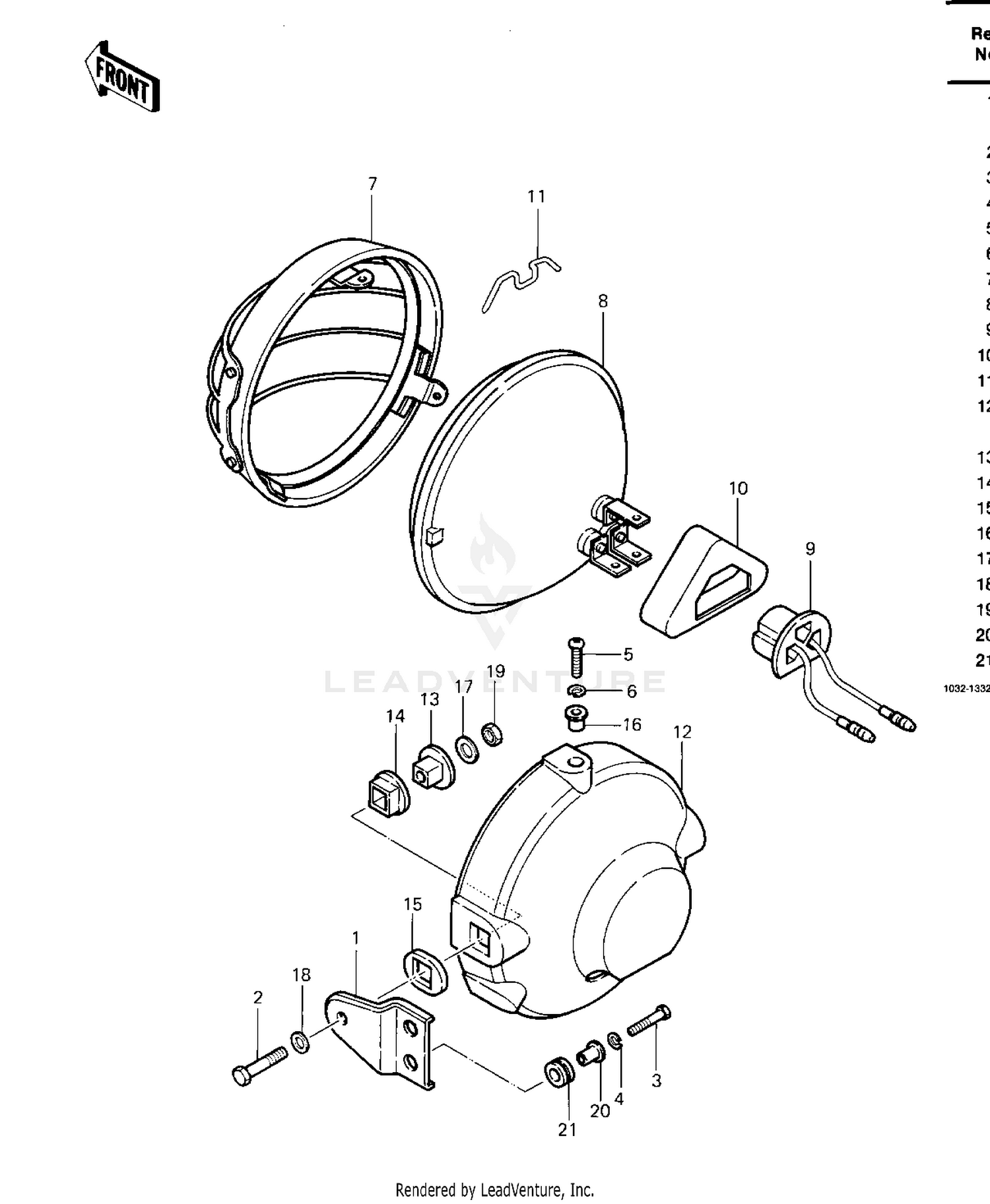

| Ref | Part Number | Description |
|---|
| 1 |
11034-4123-8G |
BRACKET,HEADLAMP,EBNY Price: $14.39 |
| 1 |
11034-4123-8R |
BRACKET,HEADLAMP,RED Price: $9.02 |
| 2 |
114N0832 |
BOLT-SMALL,8X32 Price: $4.17 |
| 3 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 4 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 220B0512. Price: $0.47 |
| 6 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 7 |
23006-4003 |
RIM-LAMP Price: $110.04 |
| 8 |
23007-4002 |
LENS-COMP Price: $65.02 |
| 9 |
23008-1125 |
SOCKET-ASSY Price: $15.19 |
| 10 |
23081-001 |
COVER,HD LAMP SOCKET Price: $8.08 |
| 11 |
92081-4025 |
SPRING,HEAD LAMP LENS Price: $6.86 |
| 12 |
23005-4004-8G |
BODY-HEADLAMP,EBONY Price: $58.82 |
| 12 |
23005-4004-8R |
BODY-COMP HEADLAMP RD Price: $32.99 |
| 13 |
92027-1105 |
COLLAR,HEAD LAMP Price: $7.62 |
| 14 |
92075-1077 |
DAMPER RUBBER,HD LAMP Price: $7.22 |
| 15 |
92075-1078 |
DAMPER RUBBER,HD LAMP Price: $5.59 |
| 16 |
23021-010 |
WASHER Price: $4.31 |
| 17 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 18 |
411S0800 |
WASHER-PLAIN,8MM This part replaces 411D0800. Price: $3.09 |
| 19 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 20 |
92027-1045 |
COLLAR,L=9.6 Price: $5.52 |
