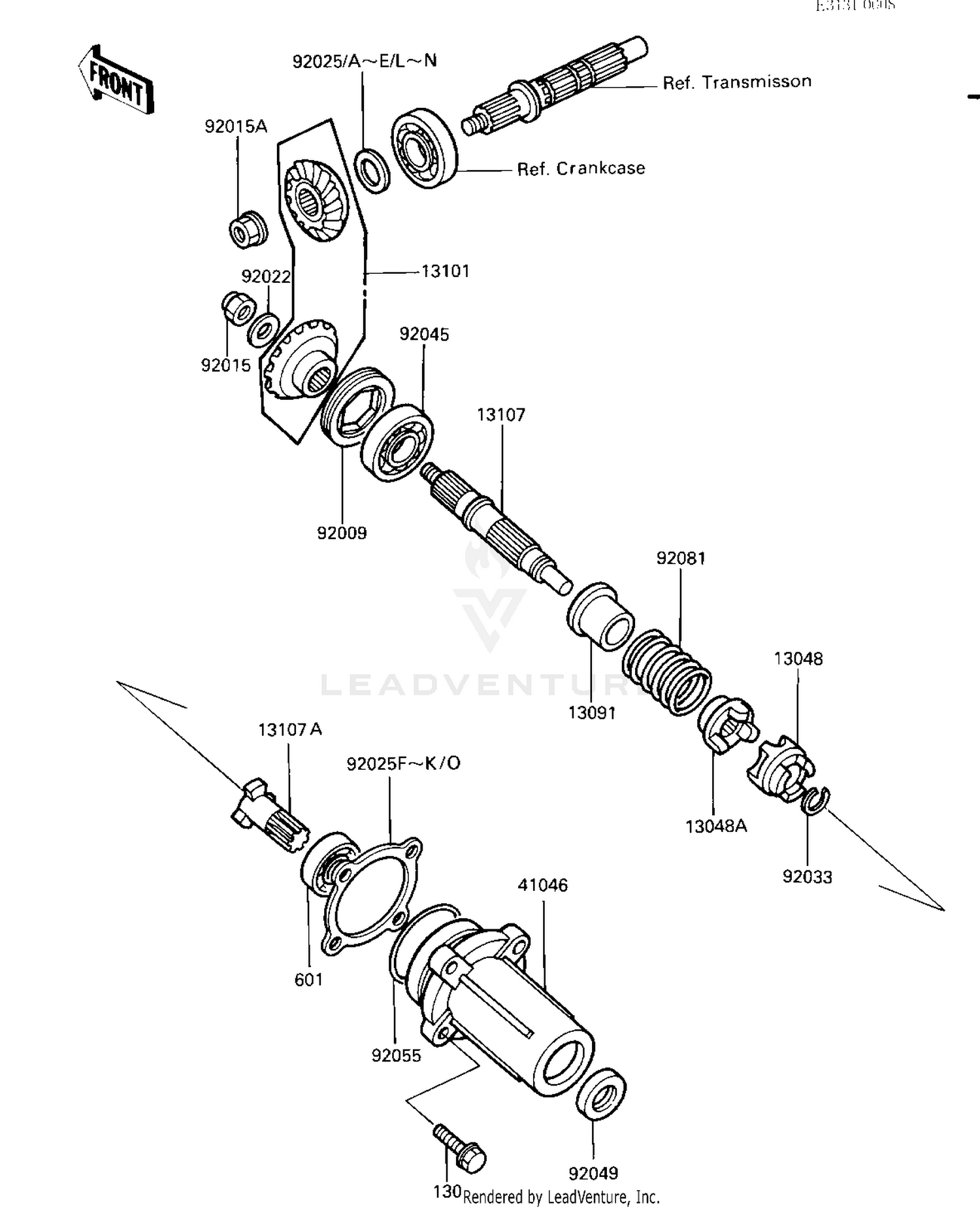

FRONT BEVEL GEARS

FRONT BEVEL GEARS

Parts (32)

RefPart NumberDescription
130 130CA0830 BOLT-FLANGED,8X30 This part replaces 130P0830. Price: $1.08
13048 13048-1053 CAM-DAMPER Price: $42.06
13048A 13048-1054 CAM-DAMPER Price: $42.06
13091 13091-1278 HOLDER Price: $12.86
13101 13101-5047 GEAR-ASSY,FRONT BEVEL Price: $494.17
13107 13107-1109 SHAFT,BEVEL GEAR,FR Price: $156.79
13107A 13107-1110 SHAFT,BEVEL GEAR,RR Price: $83.18
41046 41046-1051 HOUSING-BEARING Price: $113.23
92009 92009-1290 SCREW,55MM Price: $27.29
92015 92015-1182 NUT,12MM Price: $7.83
92015A 92015-1341 NUT,FLANGED,14MM Price: $21.74
92022 92022-1611 WASHER Price: $4.11
92025 92025-1533 SHIM,20.3X28X1.3 Price: $7.21
92025A 92025-1534 SHIM,20.3X28X0.7 Price: $5.07
92025B 92180-0288 SHIM,20.3X28X0.8 This part replaces 92025-1535. Price: $6.61
92025C 92180-0289 SHIM,20.3X28X0.9 This part replaces 92025-1536. Price: $9.10
92025D 92180-0290 SHIM,20.3X28X1.0 This part replaces 92025-1537. Price: $6.61
92025E 92180-0291 SHIM,20.3X28X1.2 This part replaces 92025-1538. Price: $6.61
92025F 92025-1539 SHIM,T=0.1 Price: $6.60
92025G 92025-1540 SHIM,T=0.7 Price: $3.61
92025H 92025-1541 SHIM,T=0.8 Price: $3.61
92025I 92025-1542 SHIM,T=0.9 Price: $3.61
92025J 92025-1543 SHIM,T=1.0 Price: $3.71
92025K 92025-1544 SHIM,T=1.2 Price: $3.61
92025L 92025-1573 SHIM,20.3X28X0.15 Price: $5.52
92025M 92025-1574 SHIM,20.3X28X0.20 Price: $5.52
92025N 92025-1575 SHIM,20.3X28X1.1 Price: $5.07
92025O 92025-1576 SHIM,T=0.15 Price: $4.05
92033 92033-1060 RING-SNAP,17MM Price: $4.26
92045 92045-1142 BEARING-BALL,TMB304CCM Price: $40.43
92049 92049-1169 SEAL-OIL Price: $9.75
92081 92081-1647 SPRING Price: $11.40
