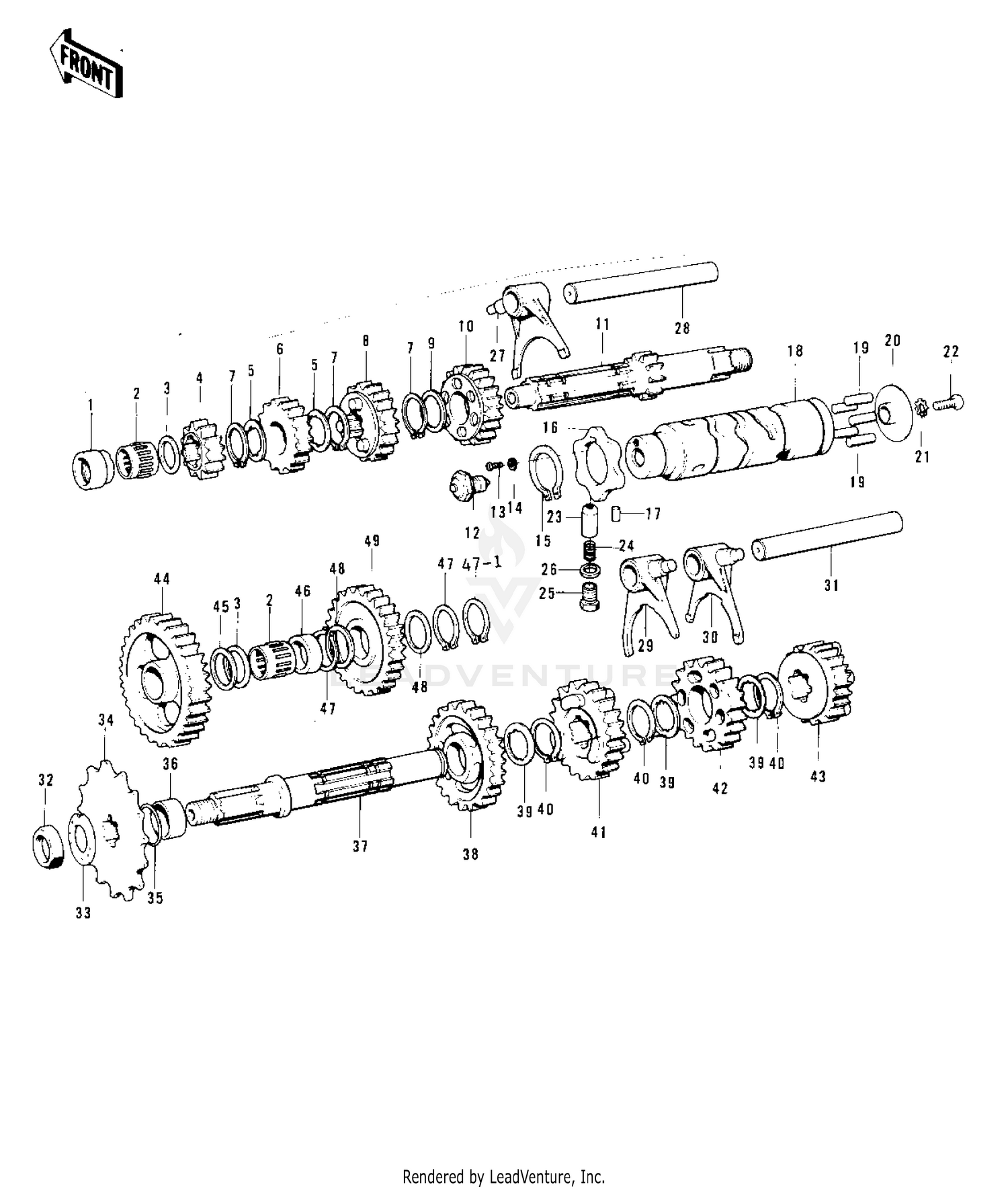

| Ref | Part Number | Description |
|---|
| 1 |
92028-109 |
BUSHING Price: $22.97 |
| 2 |
92046-1184 |
BEARING-NEEDLE,K17X23X13.8 Price: $21.25 |
| 7 |
92033-025 |
RING-SNAP,20X25.5X1.2 Price: $4.96 |
| 9 |
92022-198 |
WASHER,22.3X27X0.5 Price: $5.52 |
| 12 |
13151-018 |
SWITCH,NEUTRAL Price: $43.70 |
| 13 |
211B0406 |
SCREW PAN HEAD 4X6 This part replaces 211B0406A. Price: $0.77 |
| 13 |
92009-006 |
SCREW,PAN HEAD,4X6 Price: $1.59 |
| 14 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 15 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 16 |
13145-1058 |
CAM-CHANGE DRUM Price: $22.72 |
| 17 |
610A0406 |
ROLLER,4X6 Price: $4.31 |
| 19 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 20 |
13142-008 |
PLATE CHANGE DRUM PIN Price: $3.78 |
| 21 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 22 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 23 |
92043-076 |
PIN Price: $11.71 |
| 24 |
92081-112 |
SPRING Price: $6.16 |
| 25 |
92001-106 |
BOLT Price: $3.83 |
| 26 |
92065-090 |
GASKET Price: $4.11 |
| 27 |
13140-044 |
FORK-SELECTOR,4TH&TOP Price: $44.50 |
| 29 |
13140-043 |
FORK-SELECTOR,2ND&3RD Price: $51.76 |
| 30 |
13140-042 |
FORK-SELECTOR,LOW Price: $44.62 |
| 32 |
92015-019 |
NUT 18MM Price: $7.22 |
| 33 |
92024-067 |
WASHER,LOCK,18MM Price: $3.52 |
| 35 |
92055-035 |
RING-O Price: $5.00 |
| 36 |
92027-163 |
COLLAR-ENG SPROKET Price: $24.57 |
| 37 |
13128-033 |
SHAFT-OUTPUT Price: $95.58 |
| 40 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 46 |
92028-110 |
BUSHING Price: $15.01 |
