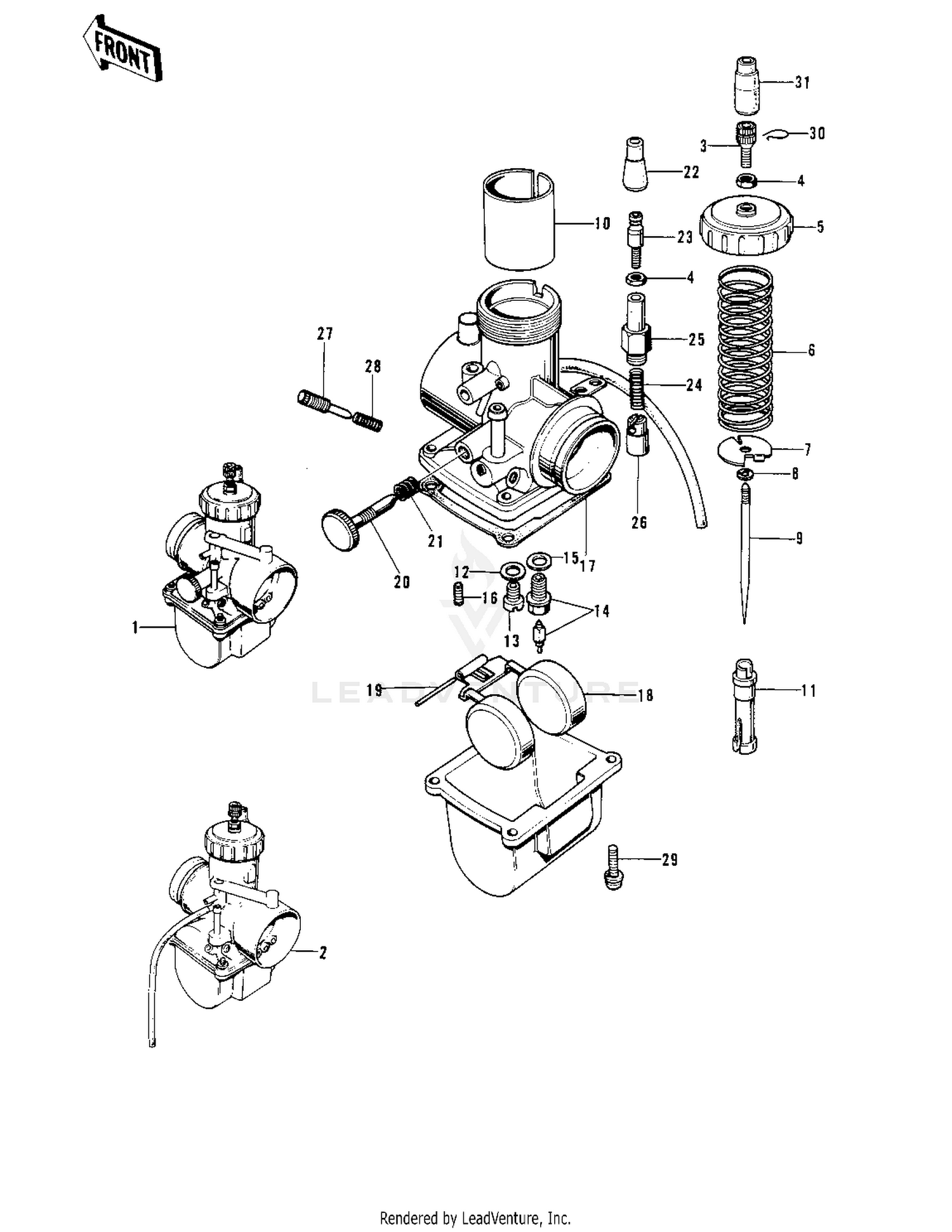

| Ref | Part Number | Description |
|---|
| 3 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 4 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 5 |
16004-018 |
CAP-MIXING CHAMBER Price: $26.52 |
| 6 |
16006-021 |
SPRING,THROTTLE VALVE Price: $6.06 |
| 7 |
16007-021 |
SPRING SEAT,THRTL VL Price: $14.17 |
| 8 |
16008-010 |
CIRCLIP Price: $9.21 |
| 9 |
16009-054 |
JET NEEDLE,5EJ15 Price: $13.76 |
| 10 |
16025-058 |
VALVE,THROTTLE CA2.5 Price: $54.24 |
| 11 |
16017-063 |
NEEDLE JET,0-6 Price: $22.35 |
| 12 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 13 |
92063-1033 |
MAIN JET,#A100 Price: $26.79 |
| 14 |
16030-005 |
FLOAT VALVE ASSY Price: $58.86 |
| 15 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 16 |
92064-023 |
JET-PILOT NO 35 Price: $20.51 |
| 17 |
16019-008 |
GASKET FLOAT CHAMBER Price: $43.88 |
| 18 |
16031-023 |
FLOAT Price: $31.54 |
| 19 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 20 |
16021-015 |
SCREW-THROTTLE STOP Price: $25.11 |
| 21 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 22 |
16036-007 |
CAP,CARBURETOR Price: $17.80 |
| 23 |
16002-002 |
CABLE ADJUSTER Price: $11.83 |
| 24 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 25 |
16012-008 |
CAP STARTER PLUNGER Price: $7.44 |
| 26 |
16016-002 |
PLUNGER-ENRICHNER Price: $31.85 |
| 27 |
16014-006 |
SCREW Price: $17.15 |
| 28 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 29 |
223AA0416 |
SCREW-PAN-WS-CROS,4X16 This part replaces 16033-009. Price: $0.68 |
| 30 |
92036-018 |
RING-SNAP Price: $3.89 |
