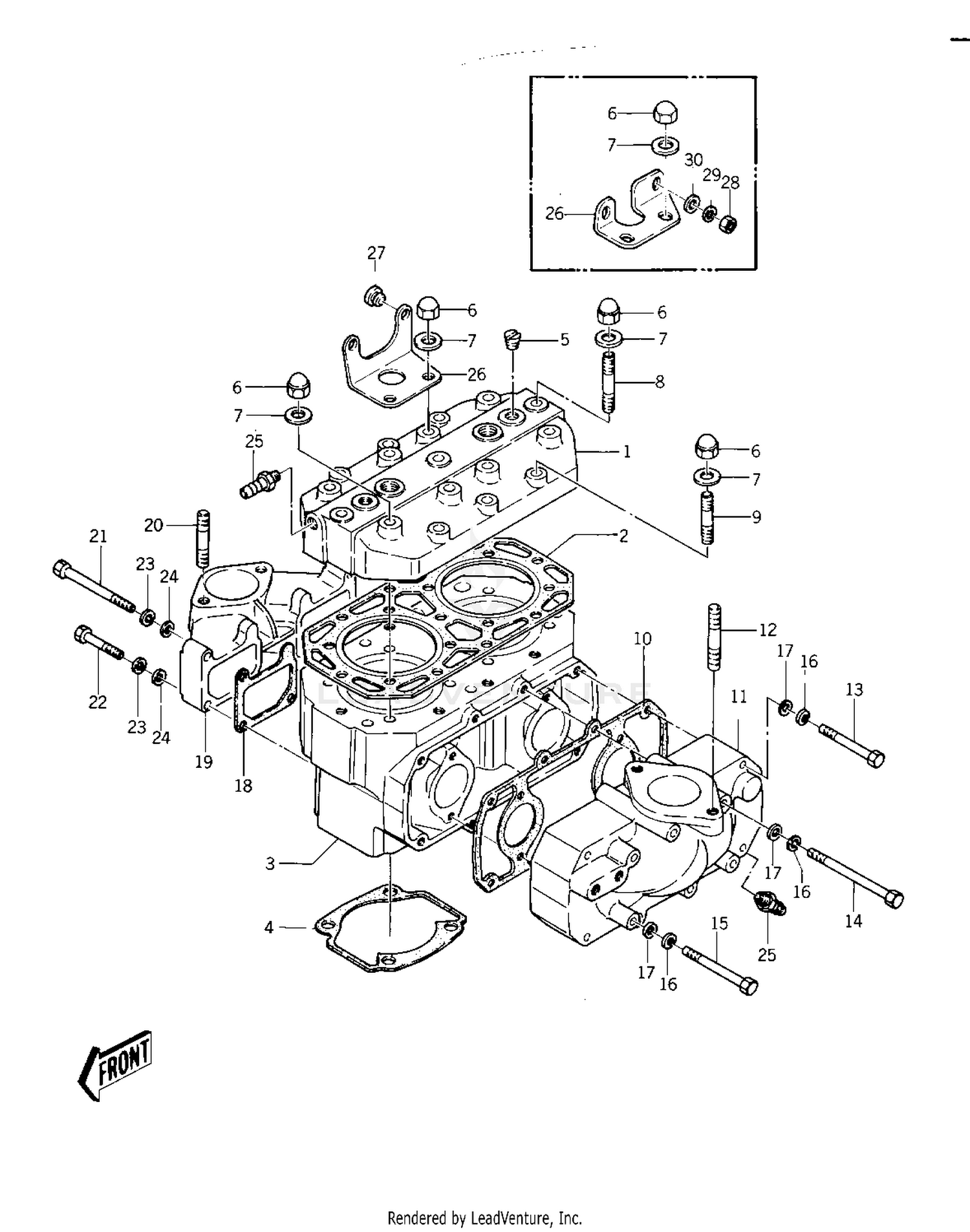

| Ref | Part Number | Description |
|---|
| 1 |
49086-3001 |
HEAD ASSY,CYLINDER Price: $68.04 |
| 2 |
11004-3711 |
GASKET-HEAD Price: $80.50 |
| 3 |
11005-3033 |
CYLINDER ASSY Price: $453.58 |
| 4 |
11009-3782 |
GASKET,CYLINDER BASE This part replaces 11009-505. Price: $17.23 |
| 5 |
92066-3001 |
PLUG,DRAIN Price: $7.57 |
| 6 |
92015-3003 |
NUT-CAP,8MM Price: $6.60 |
| 7 |
411S0800 |
WASHER-PLAIN,8MM Price: $3.09 |
| 8 |
92004-3010 |
STUD,8X50 Price: $6.07 |
| 9 |
92004-3009 |
STUD,8X42 Price: $3.62 |
| 10 |
11009-3779 |
GASKET,EXHAUST MANIF Price: $27.79 |
| 11 |
59081-504-YR |
MANIFOLD-EXHAUST Price: $249.30 |
| 12 |
172R0834 |
STUD Price: $3.13 |
| 13 |
110R0655 |
BOLT 6X55 Price: $3.83 |
| 14 |
110R0690 |
BOLT 6X90 Price: $9.70 |
| 15 |
110R0675 |
BOLT 6X75 Price: $7.33 |
| 16 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 17 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 18 |
11009-3785 |
GASKET,INTAKE Price: $5.11 |
| 21 |
110R0670 |
BOLT,6X70 Price: $11.08 |
| 22 |
110R0635 |
BOLT 6X35 Price: $5.96 |
| 23 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 24 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 25 |
92005-3712 |
FITTING,HOSE This part replaces 92005-3001. Price: $10.88 |
