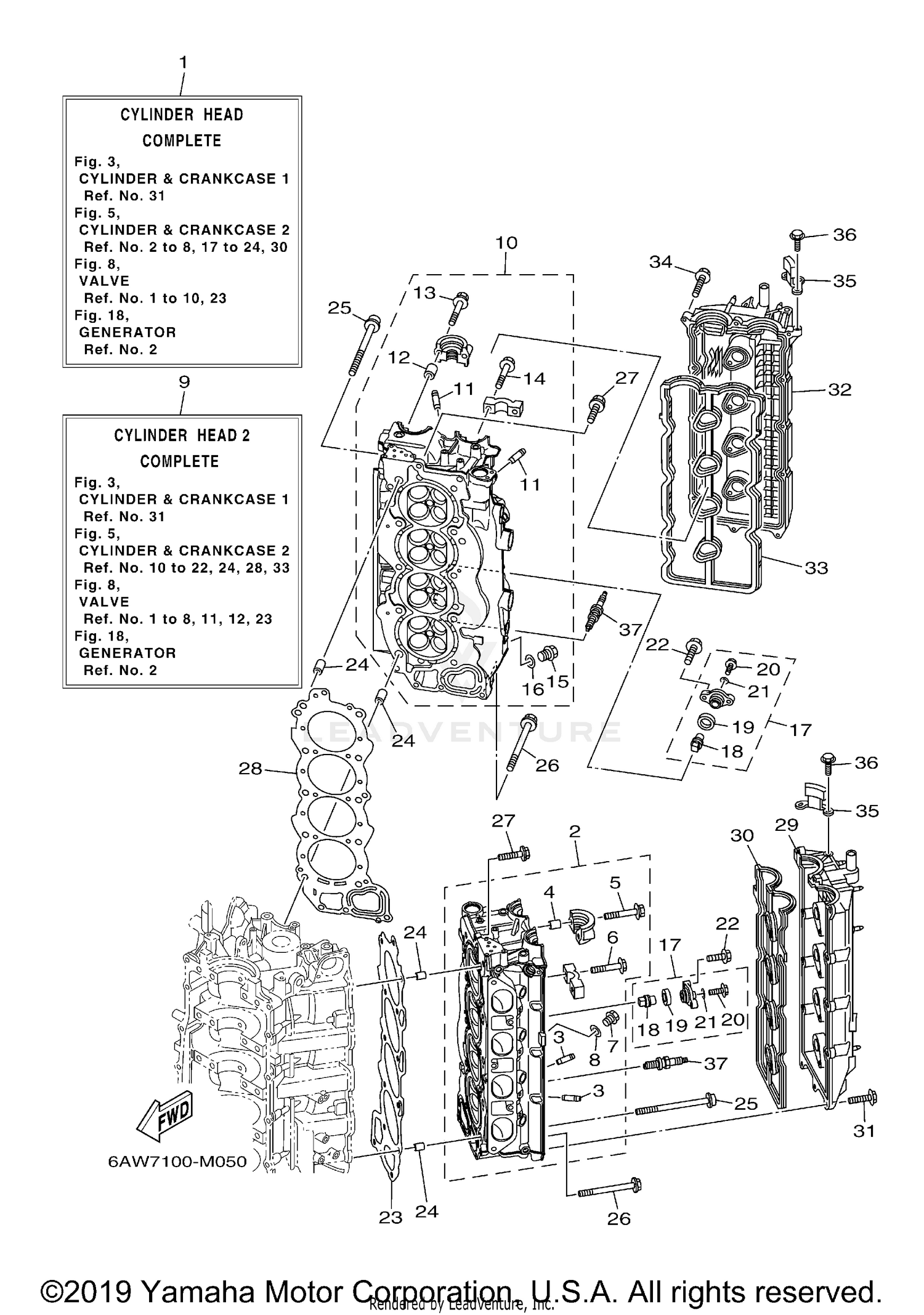

| Ref | Part Number | Description |
|---|
| 1 |
6AW-W009A-02-9S |
CYLINDER HEAD COMPLE Price: $3,160.85 |
| 2 |
6AW-11110-10-00 |
CYLINDER HEAD ASSY Price: $3,190.90 |
| 3 |
6S5-11133-10-00 |
GUIDE, VALVE 1 Price: $58.49 |
| 4 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 5 |
90119-07001-00 |
BOLT, WITH WASHER Price: $20.65 |
| 6 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 7 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 8 |
90201-186F1-00 |
WASHER, PLATE Price: $10.49 |
| 9 |
6AW-W009C-02-9S |
CYLINDER HEAD 2 COMP Price: $3,176.15 |
| 10 |
6AW-11120-10-00 |
CYLINDER HEAD ASSY 2 Price: $3,190.90 |
| 11 |
6S5-11133-10-00 |
GUIDE, VALVE 1 Price: $58.49 |
| 12 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 13 |
90119-07001-00 |
BOLT, WITH WASHER Price: $20.65 |
| 14 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 15 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 16 |
90201-186F1-00 |
WASHER, PLATE Price: $10.49 |
| 17 |
6ML-11301-00-00 |
ANODE COVER ASSY This part replaces 67F-11301-00-00. Price: $56.30 |
| 19 |
67F-11328-01-00 |
GROMMET, ANODE This part replaces 67F-11328-00-00. Price: $3.80 |
| 20 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 21 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 22 |
95D95-08025-00 |
BOLT, FLANGE DEEP Price: $1.90 |
| 23 |
6AW-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $235.55 |
| 24 |
90387-11005-00 |
COLLAR Price: $7.70 |
| 25 |
90149-11001-00 |
SCREW Price: $15.20 |
| 26 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 27 |
90119-08115-00 |
BOLT, WITH WASHER Price: $6.75 |
| 28 |
6AW-11182-00-00 |
GASKET, CYLINDER HEAD 2 Price: $235.55 |
| 29 |
6AW-11191-10-00 |
COVER, CYLINDER HEAD 1 Price: $317.20 |
| 30 |
6AW-11193-10-00 |
GASKET, HEAD COVER 1 Price: $46.85 |
| 31 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 32 |
6AW-11192-10-00 |
COVER, CYLINDER HEAD 2 Price: $297.65 |
| 33 |
6AW-11194-10-00 |
GASKET, HEAD COVER 2 Price: $46.85 |
| 34 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 35 |
6AW-15142-00-00 |
GUIDE 1 Price: $28.90 |
| 36 |
95D95-06014-00 |
BOLT, FLANGE DEEP Price: $5.35 |
