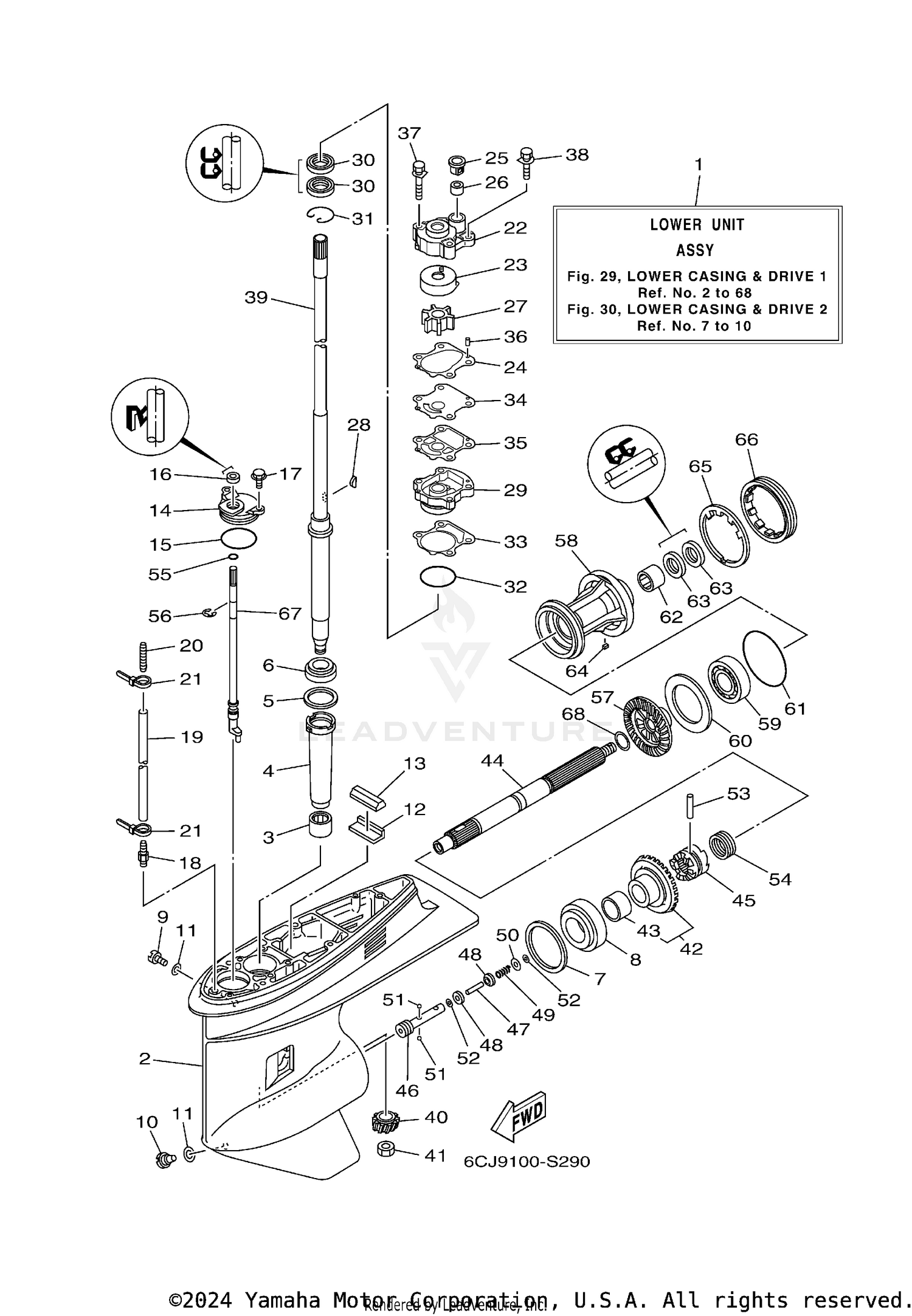

| Ref | Part Number | Description |
|---|
| 3 |
93315-52563-00 |
BEARING Price: $109.99 |
| 4 |
688-45536-01-00 |
SLEEVE, DRIVE SHAFT Price: $37.35 |
| 6 |
93332-000U3-00 |
BEARING Price: $44.99 |
| 8 |
93332-00095-00 |
BEARING Price: $191.99 |
| 9 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 10 |
688-45341-10-00 |
PLUG, DRAIN Price: $12.70 |
| 11 |
90430-08003-00 |
GASKET Price: $1.55 |
| 12 |
663-45376-00-00 |
GUIDE, SEAL DAMPER Price: $14.90 |
| 13 |
688-45375-00-00 |
DAMPER, SEAL Price: $13.75 |
| 14 |
688-45321-00-00 |
PLATE Price: $17.75 |
| 15 |
93210-49046-00 |
O-RING Price: $8.49 |
| 16 |
93106-09014-00 |
OIL SEAL Price: $8.40 |
| 17 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 18 |
6E5-45378-00-00 |
NIPPLE, HOSE Price: $10.80 |
| 20 |
6E5-83558-10-00 |
END, NIPPLE Price: $11.40 |
| 21 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 22 |
6CJ-44311-00-00 |
HOUSING, WATER PUMP Price: $18.80 |
| 23 |
63D-44322-00-00 |
INSERT, CARTRIDGE Price: $17.15 |
| 24 |
6CJ-44315-00-00 |
GASKET, WATER PUMP Price: $6.80 |
| 25 |
63D-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $4.70 |
| 26 |
663-44366-01-00 |
DAMPER, WATER SEAL 2 Price: $6.30 |
| 27 |
6H3-44352-00-00 |
IMPELLER Price: $37.45 |
| 28 |
90280-03M03-00 |
KEY, WOODRUFF Price: $7.60 |
| 29 |
6CJ-44341-00-CA |
HOUSING, WATER PUMP Price: $46.25 |
| 30 |
93101-23070-00 |
OIL SEAL Price: $13.70 |
| 31 |
93450-40165-00 |
CIRCLIP Price: $6.75 |
| 32 |
93210-46044-00 |
O-RING Price: $8.49 |
| 33 |
6CJ-44316-00-00 |
GASKET, WATER PUMP Price: $6.80 |
| 34 |
6CJ-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $10.45 |
| 35 |
6CJ-44324-00-00 |
GASKET, CARTRIDGE Price: $6.80 |
| 36 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 38 |
90119-08191-00 |
BOLT, WITH WASHER Price: $4.80 |
| 40 |
6CJ-45551-00-00 |
PINION (12T) Price: $172.80 |
| 41 |
90170-16M01-00 |
NUT Price: $7.49 |
| 42 |
6CJ-45560-00-00 |
GEAR 1 (28T) Price: $329.35 |
| 43 |
93317-322V0-00 |
BEARING Price: $30.99 |
| 44 |
67F-45611-01-00 |
SHAFT, PROPELLER Price: $304.80 |
| 45 |
6D8-45631-00-00 |
CLUTCH, DOG Price: $158.95 |
| 46 |
67F-45634-00-00 |
SLIDE, SHIFT Price: $152.10 |
| 47 |
6H1-45668-00-00 |
SHAFT, FREE 1 Price: $14.90 |
| 48 |
6H1-45635-00-00 |
PLUNGER, SHIFT Price: $29.25 |
| 49 |
90501-12M48-00 |
SPRING, COMPRESSION Price: $8.60 |
| 50 |
90201-03313-00 |
WASHER, PLATE Price: $10.49 |
| 51 |
93503-16003-00 |
BALL Price: $2.90 |
| 52 |
90183-02M03-00 |
NUT, SPRING Price: $0.50 |
| 53 |
90250-07M02-00 |
PIN, STRAIGHT Price: $7.90 |
| 54 |
688-45633-00-00 |
RING, CROSS PIN Price: $3.55 |
| 55 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 56 |
99001-08600-00 |
CIRCLIP Price: $9.49 |
| 57 |
68S-45571-00-00 |
GEAR 2 (28T) Price: $176.70 |
| 58 |
67F-45331-00-CA |
HOUSING, BEARING Price: $192.10 |
| 59 |
93306-207U0-00 |
BEARING Price: $37.99 |
| 60 |
67F-45576-00-00 |
WASHER, THRUST 2 Price: $67.55 |
| 61 |
93210-86M39-00 |
O-RING Price: $12.55 |
| 62 |
93317-325U0-00 |
BEARING Price: $25.99 |
| 63 |
93101-25M03-00 |
OIL SEAL Price: $7.30 |
| 64 |
90282-04010-00 |
KEY, STRAIGHT Price: $14.20 |
| 65 |
688-45383-02-00 |
WASHER, CLAW Price: $15.20 |
| 66 |
688-45384-02-00 |
NUT Price: $34.60 |
| 67 |
64J-44150-01-00 |
SHIFT CAM ASSY Price: $230.55 |
