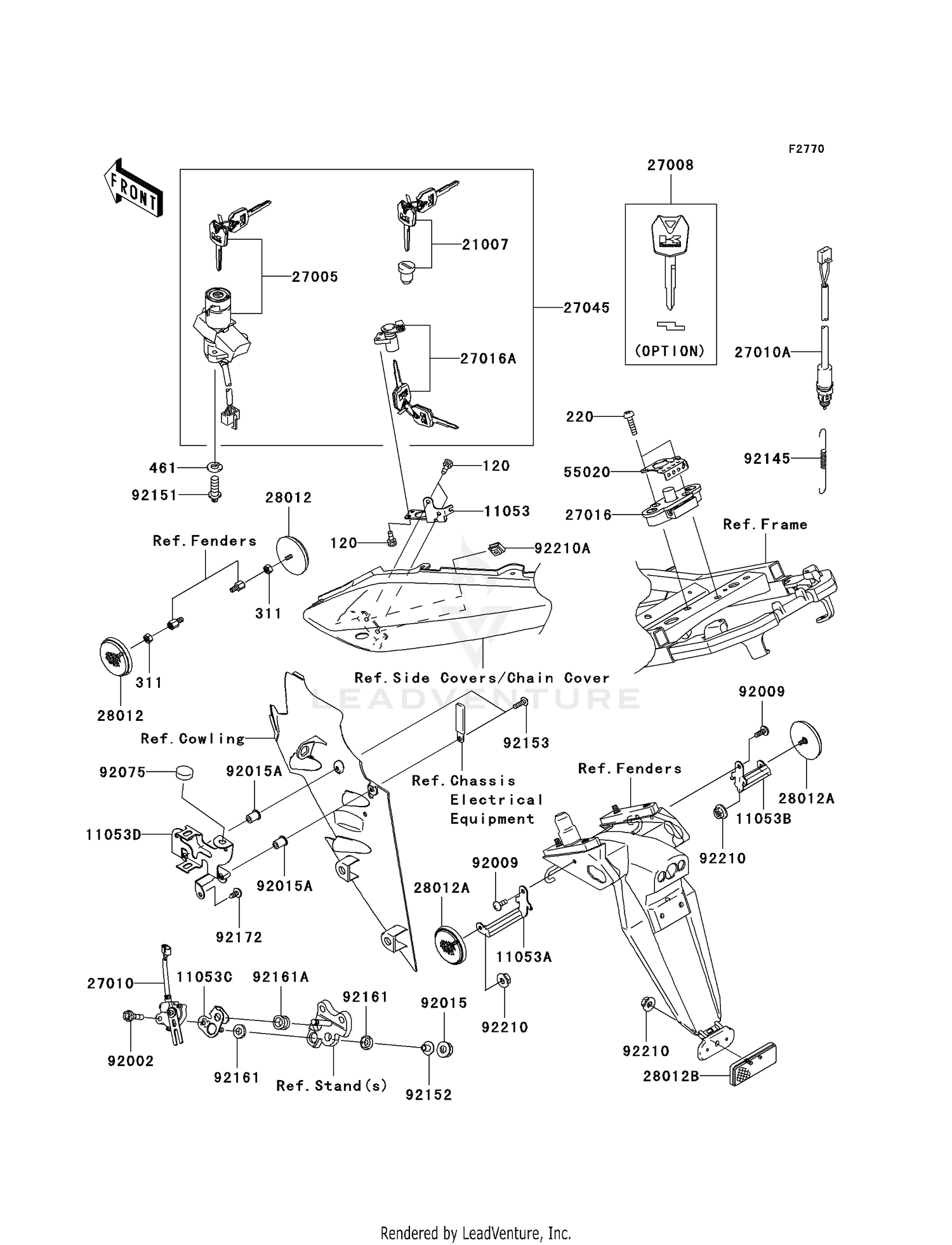

| Ref | Part Number | Description |
|---|
| 120 |
120CB0512 |
BOLT-SOCKET,5X12 This part replaces 120W0512. Price: $1.76 |
| 220 |
220AB0630 |
SCREW-PAN-CROSS This part replaces 220F0630. Price: $1.89 |
| 311 |
311AB0500 |
NUT-HEX,5MM This part replaces 311C0500. Price: $0.43 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461L0600. Price: $0.71 |
| 11053 |
11053-0399 |
BRACKET,SEAT LOCK Price: $9.97 |
| 11053A |
11053-0405 |
BRACKET,REAR REFLECTO Price: $13.07 |
| 11053B |
11053-0406 |
BRACKET,REAR REFLECTO Price: $13.07 |
| 11053C |
11053-0723 |
BRACKET,SIDE STAND SW Price: $11.34 |
| 11053D |
11053-1252 |
BRACKET,AMPLIFIER Price: $31.80 |
| 21007 |
21007-5057 |
ROTOR,LOCK,TANK CAP Price: $84.71 |
| 27005 |
27005-5139 |
SWITCH-ASSY-IGNITION This part replaces 27005-5130. Price: $186.48 |
| 27010 |
27010-1455 |
SWITCH,SIDE STAND Price: $117.84 |
| 27010A |
27010-1479 |
SWITCH,REAR BRAKE Price: $30.06 |
| 27016 |
27016-0003 |
LOCK-ASSY,SEAT STRIKER Price: $88.34 |
| 27016A |
27016-5309 |
LOCK-ASSY,SEAT Price: $86.99 |
| 27045 |
27045-5356 |
SWITCH-ASSY This part replaces 27045-5236. Price: $445.48 |
| 28012 |
28012-0001 |
REFLECTOR-REFLEX,FR,SIDE Price: $24.14 |
| 28012A |
28012-0002 |
REFLECTOR-REFLEX Price: $24.14 |
| 28012B |
28012-1077 |
REFLECTOR-REFLEX Price: $23.25 |
| 55020 |
55020-0082 |
GUARD,SEAT STRIKER Price: $4.74 |
| 92002 |
92002-1582 |
BOLT,FLANGED,6X25 Price: $4.69 |
| 92009 |
92009-1653 |
SCREW Price: $3.96 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK This part replaces 92015-1386. Price: $5.52 |
| 92015A |
92015-1757 |
NUT,WELL,5MM Price: $7.29 |
| 92075 |
92075-281 |
DAMPER,9X24X14 Price: $6.22 |
| 92145 |
92145-0724 |
SPRING,REAR BRAKE SWITCH This part replaces 92145-0091. Price: $3.35 |
| 92151 |
92153-0967 |
BOLT,TORX,6X16 This part replaces 92151-1911. Price: $2.61 |
| 92152 |
92152-1074 |
COLLAR Price: $6.22 |
| 92153 |
92153-1244 |
BOLT,SOCKET,5X16 Price: $2.41 |
| 92161 |
92161-0117 |
DAMPER Price: $2.90 |
| 92161A |
92161-0118 |
DAMPER Price: $2.90 |
| 92172 |
92172-0006 |
SCREW,TAPPING,5X14 Price: $2.80 |
| 92210 |
92210-0007 |
NUT,FLANGED,5MM Price: $2.70 |
