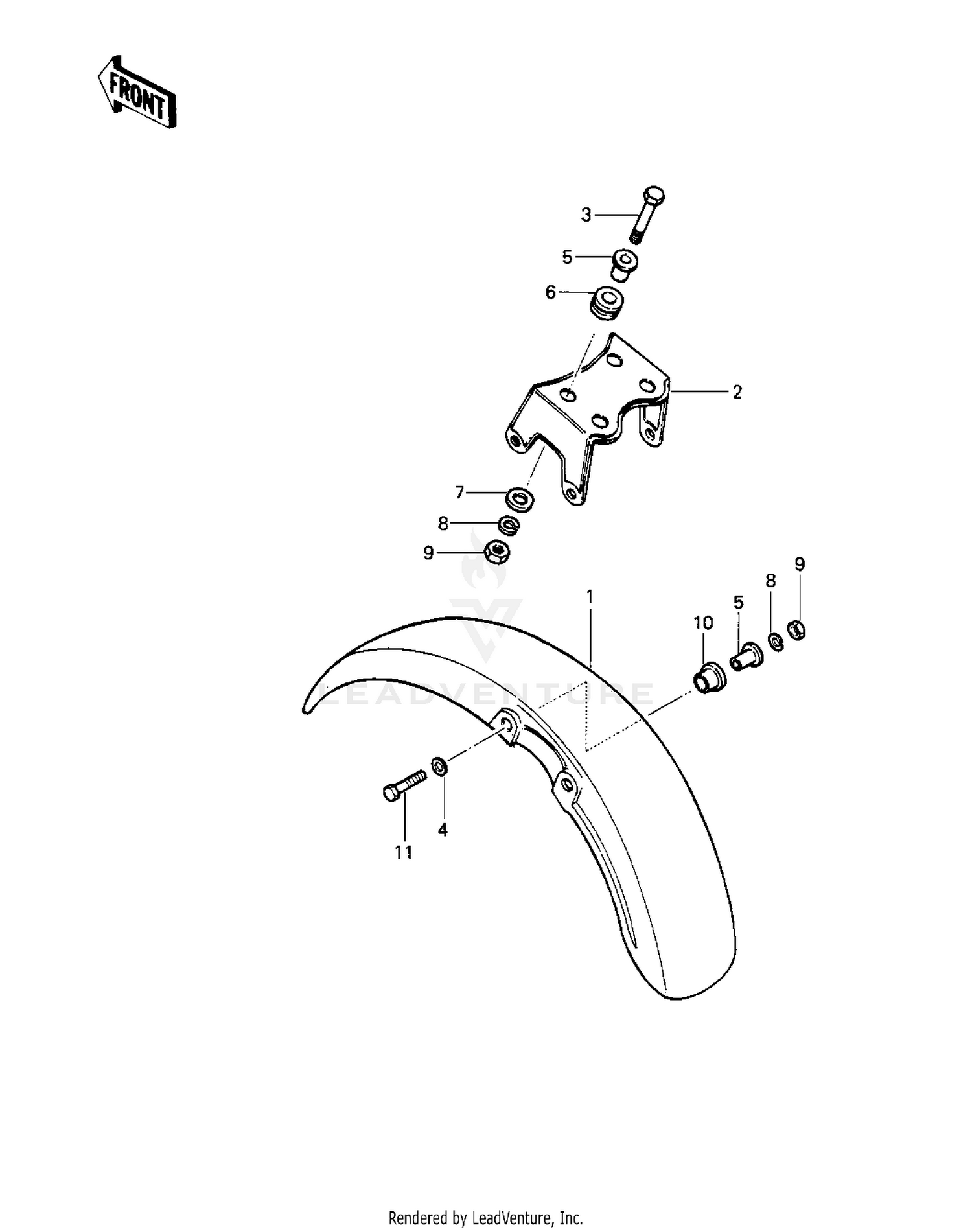

FRONT FENDER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 35012-018 | BRACKET-FRONT FENDER Price: $12.85 |
| 3 | 112BA0630 | BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 4 | 92022-024 | WASHER,7X16X1.2 Price: $3.65 |
| 5 | 92027-153 | COLLAR,L=7 Price: $6.22 |
| 6 | 92075-051 | DAMPER Price: $3.92 |
| 7 | 92200-0283 | WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 8 | 461DA0600 | WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 9 | 311AA0600 | NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 10 | 92075-103 | DAMPER RUBBER Price: $4.39 |
