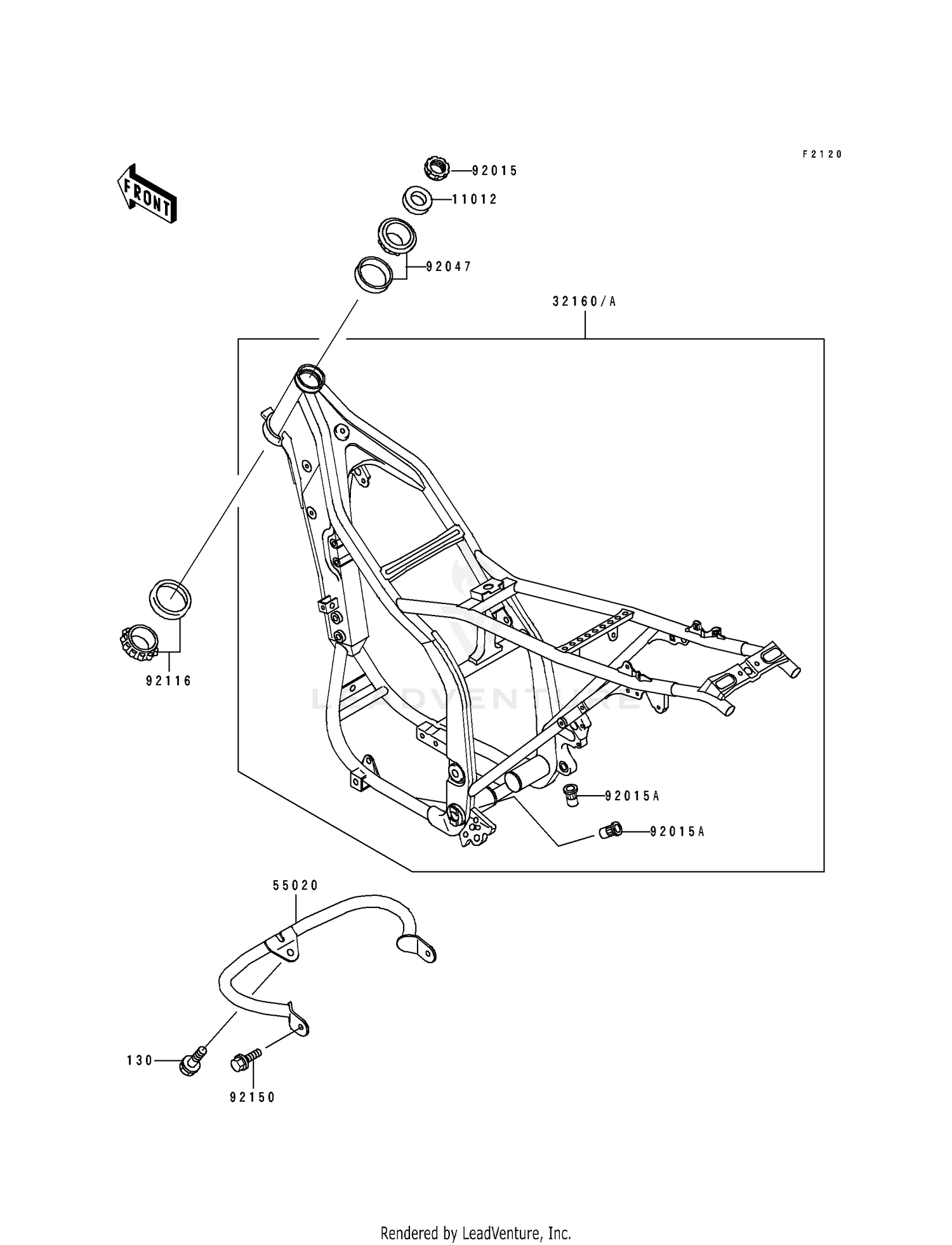

FRAME
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 11012-1762 | CAP,STEERING STEM Price: $6.16 |
| 32160A | 32160-1364-TY | FRAME-COMP,VIOLET Price: $1,837.42 |
| 55020 | 55020-1480 | GUARD,ENGINE Price: $191.96 |
| 92015 | 92015-1546 | NUT,25MM,T=12 Price: $20.96 |
| 92015A | 92015-1791 | NUT,POP,6MM,L=15 Price: $4.69 |
| 92047 | 92047-017 | RACE,ROLLER,32005JR RS Price: $43.75 |
| 92116 | 92116-1069 | BEARING-ROLLER,HI-CAP32006JRRS Price: $64.45 |
| 92150 | 92150-1340 | BOLT,6X14 Price: $5.07 |
