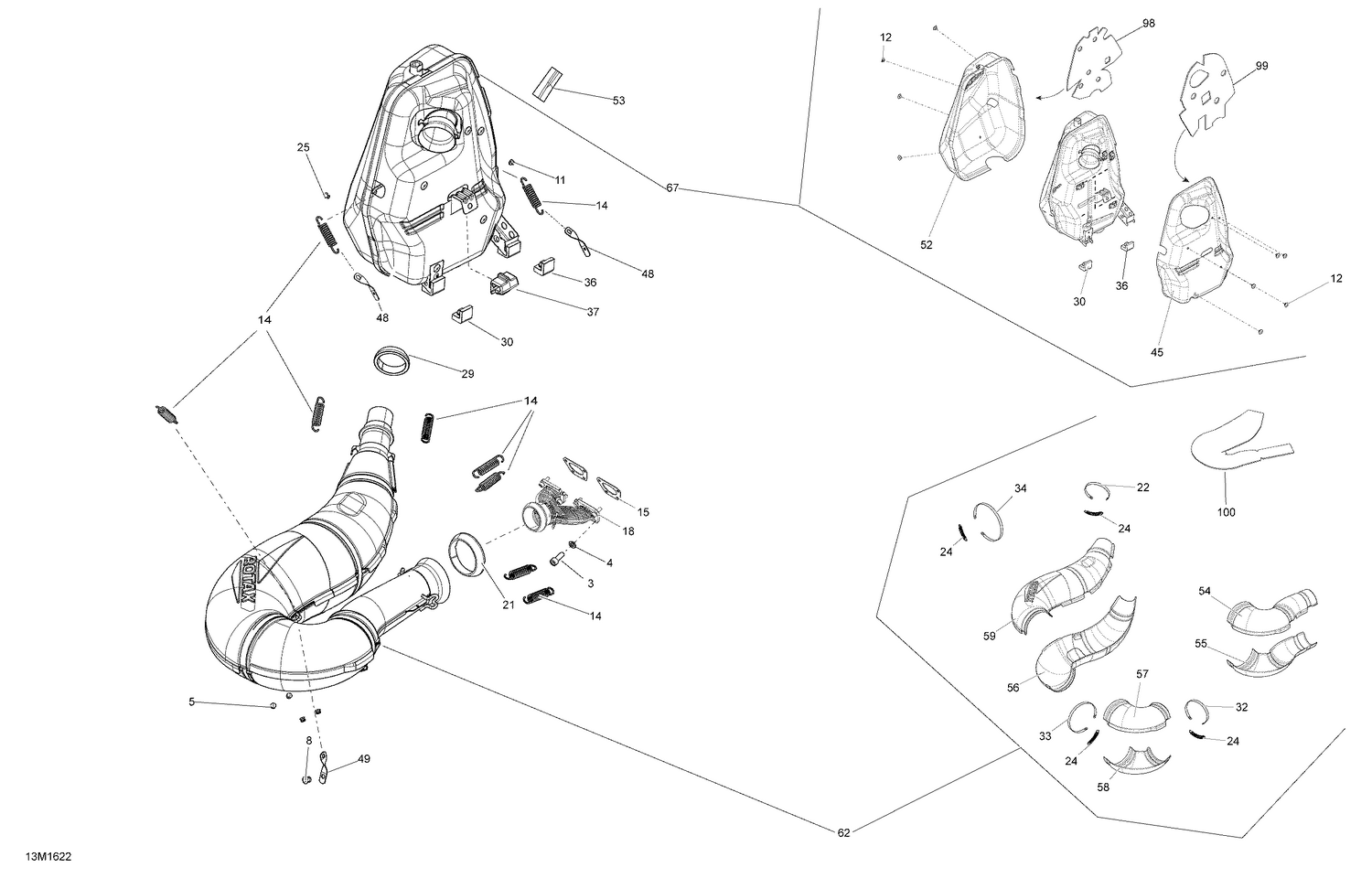

| Ref | Part Number | Description |
|---|
| 3 |
250000414 |
Socket Head Screw M8 X 22 Price: $2.19 |
| 4 |
250200111 |
Washer Price: $2.19 |
| 5 |
293150091 |
Henrob Rivet Price: $0.79 |
| 8 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. Price: $2.49 |
| 11 |
390909200 |
Avex Rivet Price: $0.30 |
| 12 |
390910000 |
Pop Rivet 3/16” Price: $0.59 |
| 14 |
415107100 |
Spring Price: $6.49 |
| 15 |
420430482 |
Gasket Price: $8.89 |
| 18 |
420673374 |
Exhaust Manifold This part replaces 420673373. Price: $309.99 |
| 21 |
514053487 |
Exhaust Gasket Price: $27.99 |
| 22 |
514053536 |
Retaining Strap Price: $14.99 |
| 24 |
514053643 |
Spring Price: $6.49 |
| 25 |
293150144 |
Stavex Rivet Price: $0.84 |
| 29 |
514054174 |
Exhaust Gasket Price: $29.99 |
| 30 |
514054274 |
Lower Stopper Price: $21.99 |
| 32 |
514054408 |
Retaining Strap Price: $13.49 |
| 33 |
514054409 |
Retaining Strap Price: $13.49 |
| 34 |
514054410 |
Retaining Strap Price: $13.49 |
| 36 |
514054496 |
Lower Stopper Price: $27.99 |
| 37 |
514054606 |
Upper Stopper Price: $19.99 |
| 45 |
514054967 |
LH Deflector Price: $59.99 |
| 48 |
514054974 |
Spring Bracket, 5mm hole Price: $8.59 |
| 49 |
514054975 |
Spring Bracket, 8.0mm hole Price: $8.59 |
| 52 |
514054984 |
RH Deflector Price: $59.99 |
| 53 |
514054987 |
Heat Shield (Rectangle) Price: $7.79 |
| 54 |
514054988 |
FRONT UPPER HALF ENVELOPPE - Call your local BRP dealership Price: $37.99 |
| 55 |
514054989 |
FRONT LOWER HALF ENVELOPPE - Call your local BRP dealership Price: $37.99 |
| 56 |
514054990 |
Rear Lower Half Enveloppe Price: $57.99 |
| 57 |
514054992 |
Front Upper Half Enveloppe Price: $41.99 |
| 58 |
514054993 |
Front Lower Half Enveloppe Price: $41.99 |
| 59 |
514055039 |
Rear Upper Half Enveloppe Price: $67.99 |
| 62 |
514055061 |
EXHAUST TUNED PIPE - Call your local BRP dealership Price: $899.99 |
| 67 |
514054965 |
MUFFLER_EXHAUST ASSY - Call your local BRP dealership Price: $789.99 |
| 98 |
514054711 |
RH Insulating Wool Price: $21.99 |
| 99 |
514054299 |
LH Insulating Wool Price: $21.99 |
