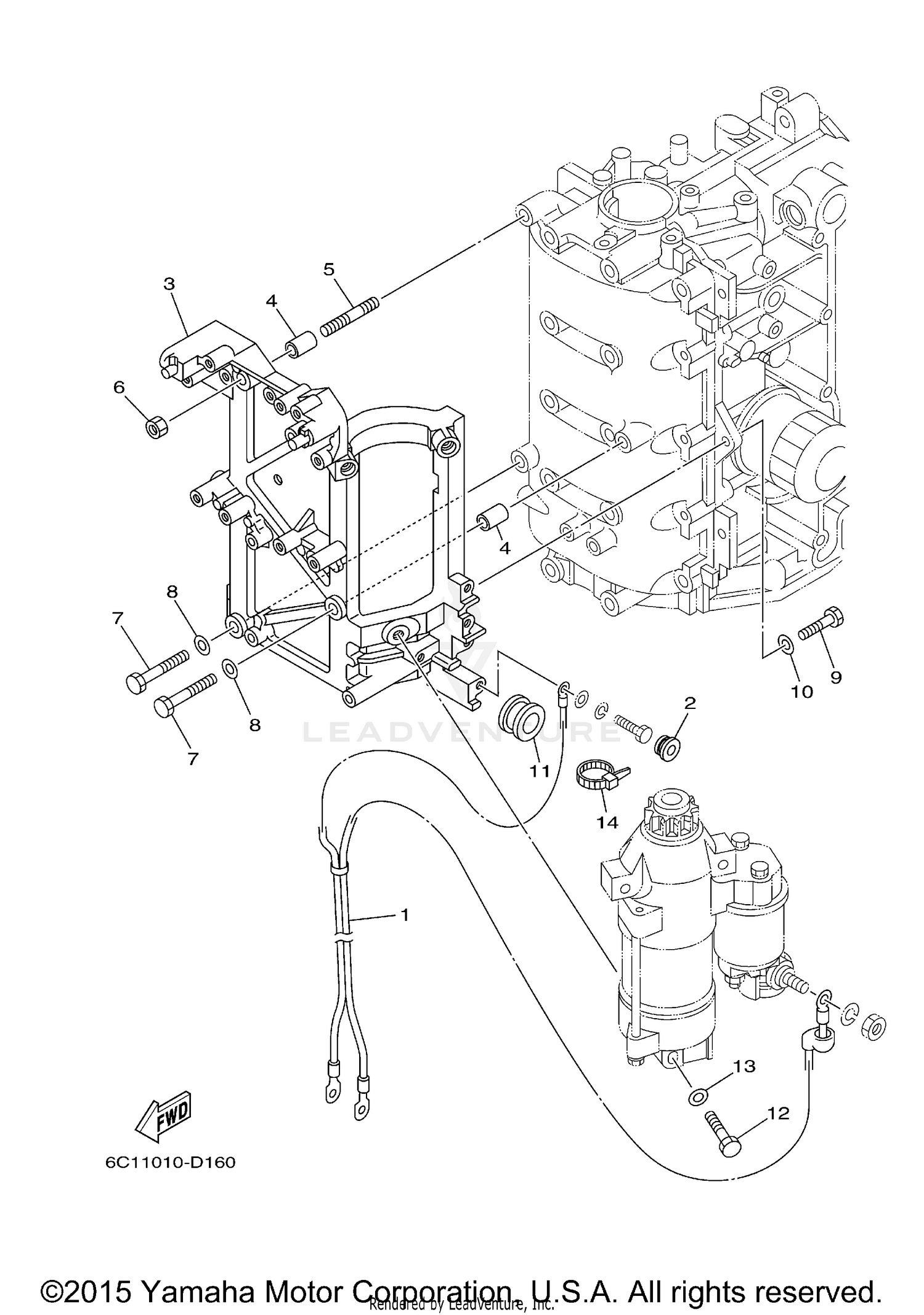

ELECTRICAL 4
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6C5-82105-U2-00 | BATTERY CABLE This part replaces 6C5-82105-U0-00. Price: $179.30 |
| 2 | 90480-12072-00 | GROMMET Price: $9.49 |
| 3 | 6C5-81822-00-00 | BRACKET, STARTING MOTOR This part replaces 6C5-81822-00-94. Price: $191.85 |
| 4 | 99590-10114-00 | PIN, DOWEL Price: $5.55 |
| 5 | 95680-08330-00 | BOLT, STUD Price: $5.55 |
| 6 | 99780-08600-00 | NUT, HEX. This part replaces 95380-08600-00. Price: $2.75 |
| 7 | 97095-08035-00 | BOLT Price: $5.49 |
| 8 | 92990-08600-00 | WASHER, PLATE This part replaces 92995-08600-00. Price: $2.70 |
| 9 | 97095-08025-00 | BOLT Price: $9.49 |
| 10 | 92990-08600-00 | WASHER, PLATE This part replaces 92995-08600-00. Price: $2.70 |
| 11 | 90480-24003-00 | GROMMET Price: $7.99 |
| 12 | 97013-08045-00 | BOLT Price: $10.49 |
| 13 | 92990-08600-00 | WASHER, PLATE This part replaces 92903-08600-00. Price: $2.70 |
