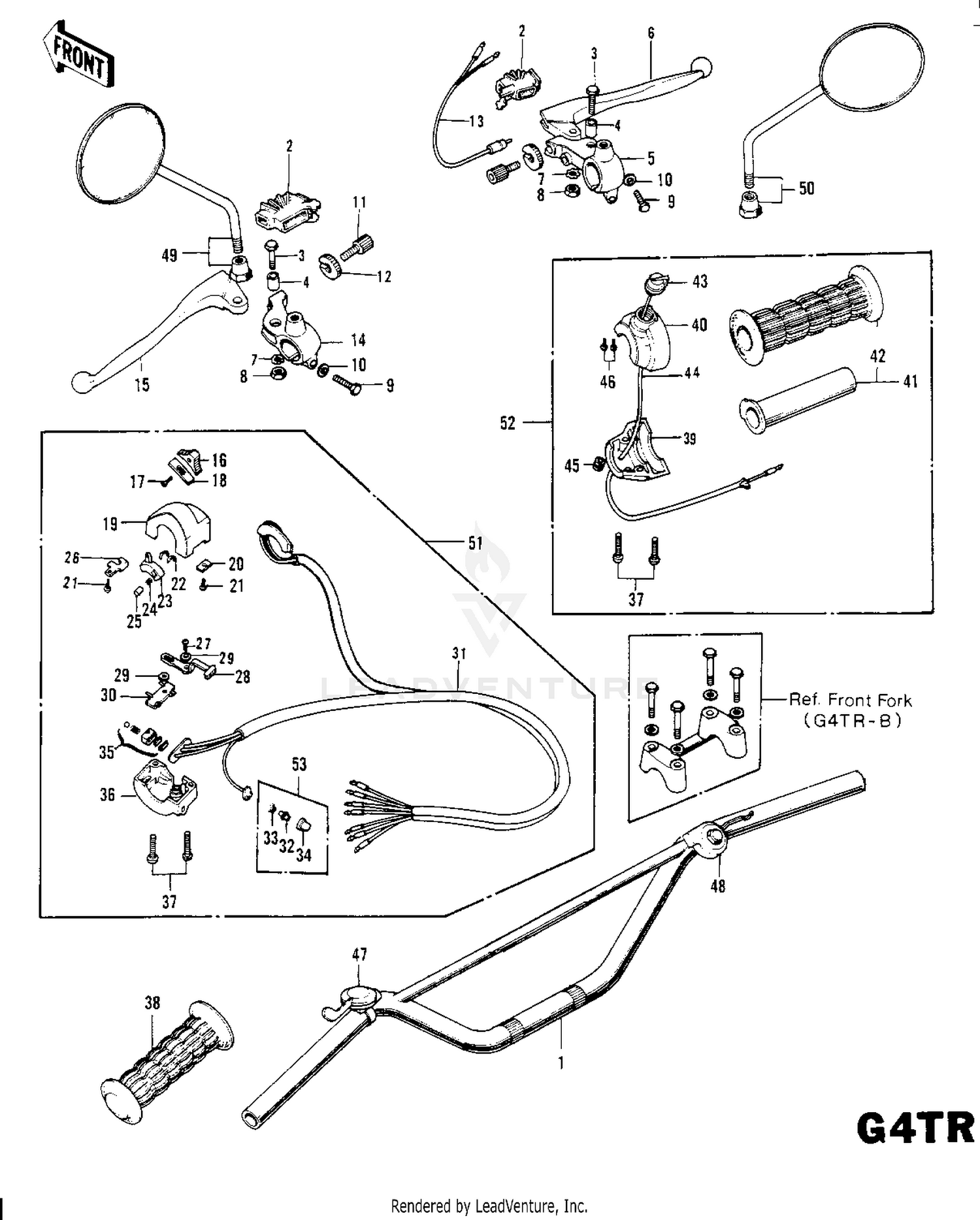

HANDLEBAR G4TR-B ('70-'73)

HANDLEBAR G4TR-B ('70-'73)

Parts (51)

RefPart NumberDescription
1 46004-004 HANDLEBAR Price: $104.46
2 46071-002 DUST COVER Price: $15.16
3 92007-020 BOLT HEX HEAD 5X20 Price: $6.37
4 46059-011 COLLAR LEVER Price: $8.03
5 46060-009-21 HOLDER-FR BRK LEV,BLK Price: $40.69
6 46058-004 LEVER FRONT BRAKE Price: $24.84
7 464EA0500 WASHER-TOOTHED This part replaces 464H0500. Price: $1.01
8 312AA0500 NUT-HEX,5MM This part replaces 312B0500. Price: $0.47
9 112N0625 BOLT-UPSET This part replaces 110N0625. Price: $5.86
10 410AA0600 WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31
11 46055-009 SCREW,CABLE ADJUST Price: $19.07
12 46056-005 NUT,CABLE ADJUST LOCK,8MM Price: $8.86
13 27021-004 SWITCH-FR. BRAKE LAMP Price: $35.78
14 46094-011-21 HOLDER,F.BLACK Price: $35.82
15 46092-015 LEVER-CLUTCH Price: $20.99
16 46044-011 KNOB-L.H SWITCH Price: $8.72
17 221B0308A SCREW CNTSNK HD 3X8 Price: $5.98
18 46031-003 SPRING L.H SW KNOB Price: $1.92
19 46086-013 CASE L.H SWITCH UPPER Price: $12.76
20 46085-013 HOLDER L.H SW UPPER A Price: $1.76
21 92009-1123 SCREW,3X5 This part replaces 220B0305A. Price: $0.59
22 46080-002 PLATE L.H SW CONTACT Price: $1.76
23 46089-003 SWITCH L.H Price: $4.03
24 46031-004 SPRING L.H SWITCH Price: $1.84
25 46079-002 CONTACT L.H SWITCH Price: $1.76
26 46085-014 HOLDER L.H SW LOWER B Price: $1.73
27 220AA0308 SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59
28 46044-006 KNOB-SWITCH Price: $4.93
29 92095-010 WASHER Price: $3.64
30 46085-015 HOLDER L.H SW LOWER Price: $1.35
31 46082-017 WIRING HARNESS-L.H SW Price: $25.42
32 27010-1009 SWITCH ASSY,HORN BUTN Price: $9.20
33 27010-1009 SWITCH ASSY,HORN BUTN Price: $9.20
34 27010-1009 SWITCH ASSY,HORN BUTN Price: $9.20
35 46089-004 SLIDE BLOCK AY-L.H SW Price: $7.37
36 46077-015 CASE L.H SWITCH LOWER Price: $13.52
37 220AA0525 SCREW-PAN-CROS,5X25 This part replaces 220B0525. Price: $3.67
38 46075-018 RUBBER-L.H.GRIP Price: $15.43
39 46023-008 CASE-RH LOWER Price: $25.62
40 46041-008 CASE-RH UPPER Price: $29.50
41 46019-020 GRIP ASSY-THROTTLE Price: $13.51
42 46061-013 RUBBER-R.H. GRIP Price: $14.45
43 46027-008 SWITCH-ENGINE STOP Price: $23.52
44 46082-021 WIRING HARNESS-STP SW Price: $4.82
45 92071-060 GROMMET-WIRING HARNES Price: $1.52
46 92009-1123 SCREW,3X5 This part replaces 220B0305A. Price: $0.59
47 46109-012 LEVER ASSY,STARTER Price: $24.86
48 46131-002 LEVER-CHANGE Price: $52.90
49 56003-009 REAR VIEW MIRROR,L.H Price: $67.12
51 46091-004 CASE ASSY-L.H Price: $114.75
52 46018-020-10 CASE ASSY,R.H,BLACK Price: $69.82
