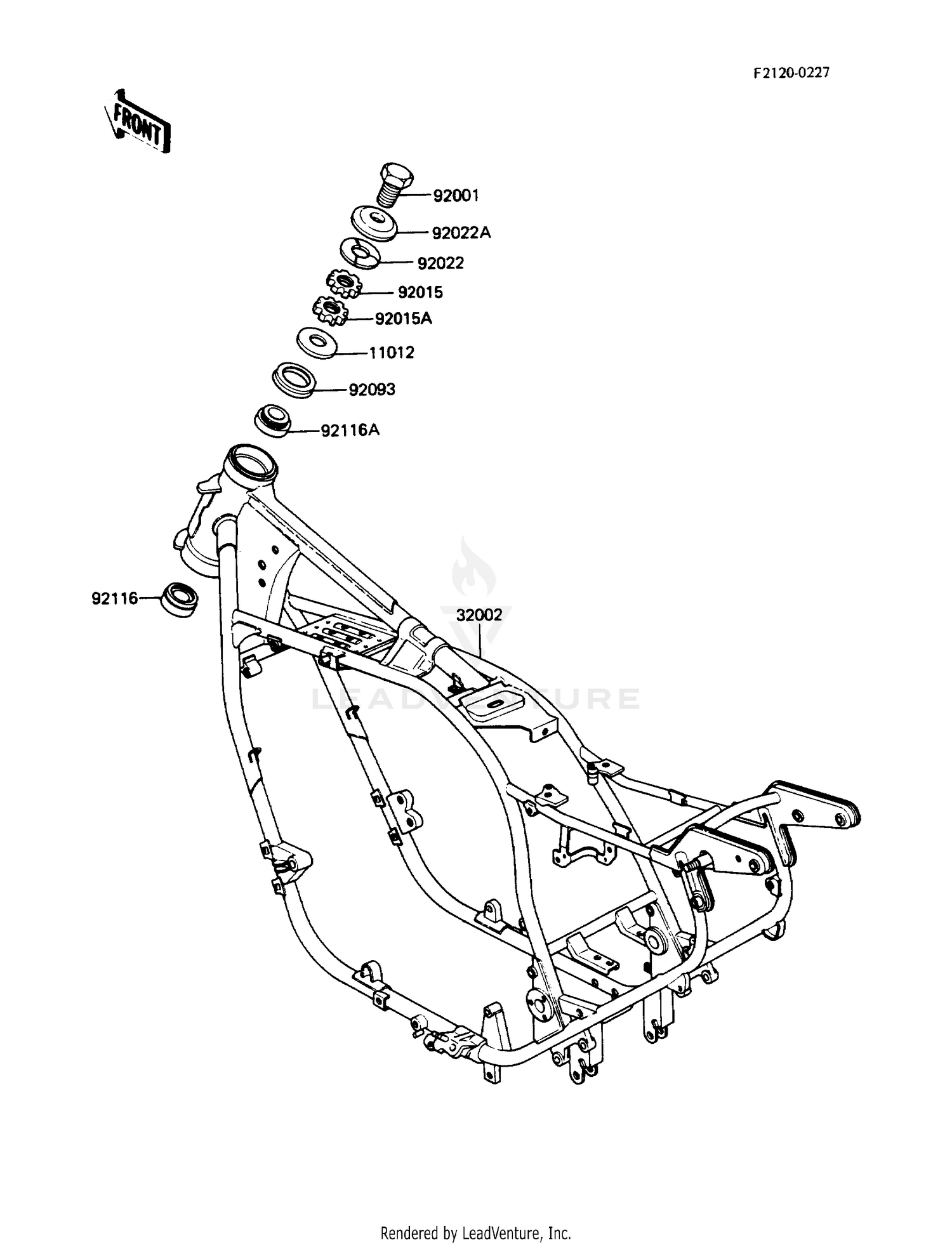

FRAME
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 11012-1206 | CAP,STEERING Price: $4.79 |
| 32002 | 32002-1585 | FRAME-COMP Price: $1,721.46 |
| 92001 | 92007-031 | BOLT,STEERG STEM HEAD Price: $29.84 |
| 92015 | 92015-1417 | NUT,28MM,T=6 Price: $12.87 |
| 92015A | 92015-1418 | NUT,28MM,T=8.5 Price: $16.64 |
| 92022 | 46100-003 | WASHER,WAVE Price: $11.39 |
| 92022A | 92200-1273 | WASHER,16X41X4.5 This part replaces 92022-230. Price: $11.93 |
| 92093 | 92093-1070 | SEAL,STEERING Price: $9.91 |
| 92116 | 92116-1008 | BEARING,ROLLER,32006 Price: $75.31 |
