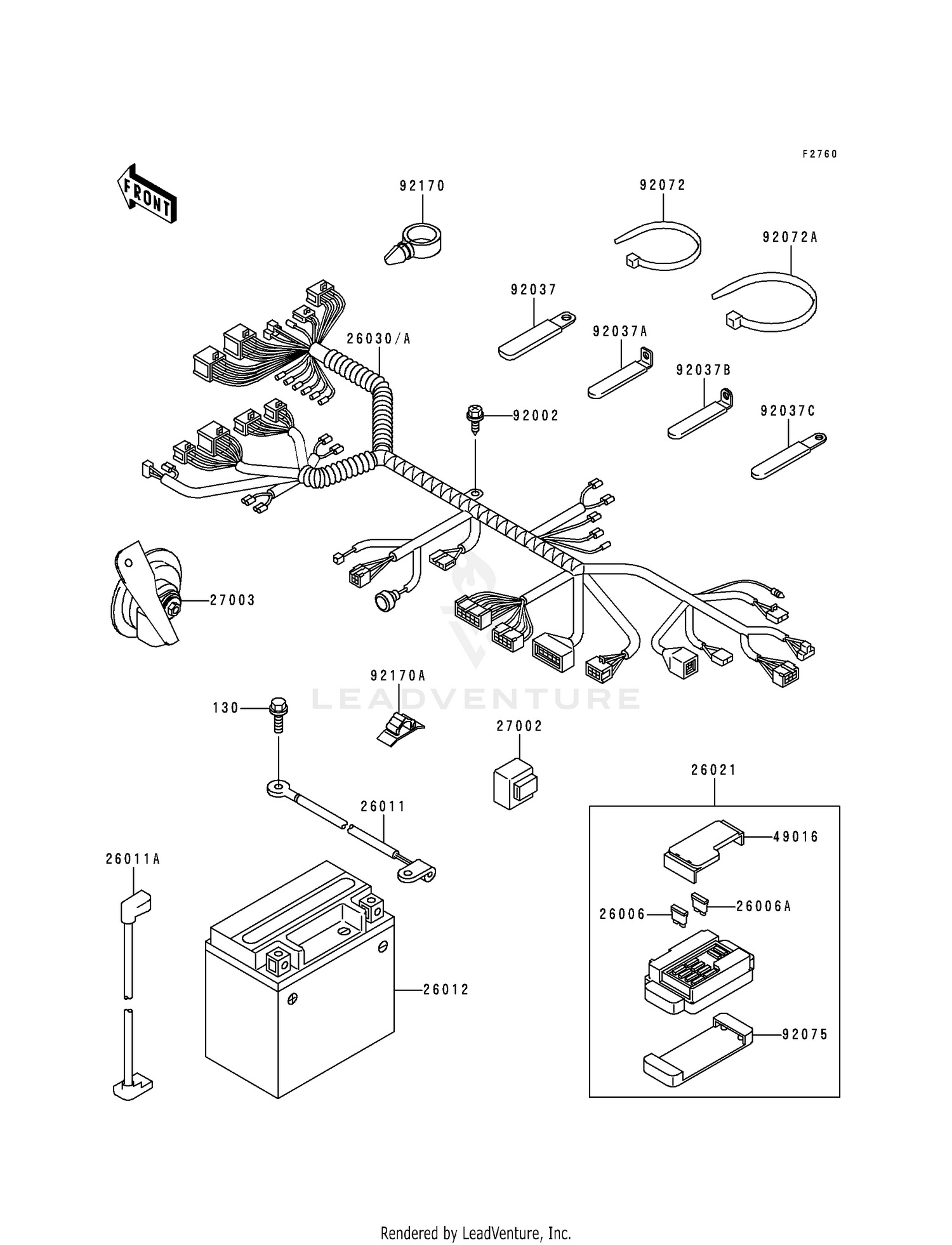

CHASSIS ELECTRICAL EQUIPMENT

CHASSIS ELECTRICAL EQUIPMENT

Parts (20)

RefPart NumberDescription
130 130BA0610 BOLT-FLANGED,6X10 This part replaces 130G0610. Price: $1.20
26006 26006-1006 FUSE,BLADE,30A,GREEN This part replaces 26006-1067. Price: $4.96
26006A 26006-1007 FUSE,BLADE,10A,RED This part replaces 26006-1068. Price: $4.96
26011 26011-1429 WIRE-LEAD,BATTERY(-) Price: $30.83
26011A 26011-1584 WIRE-LEAD,BATTERY(+) Price: $39.06
26012 26012-1253 YTX12-BS 0.59L This part replaces 26012-1281. Price: $119.64
26021 26021-0073 JUNCTION BOX This part replaces 26021-1089. Price: $157.94
26030 26030-1373 HARNESS,MAIN This part replaces 26030-1243. Price: $387.27
27002 27002-1053 RELAY-ASSY,TURN SIGNAL Price: $58.83
27003 27003-1373 HORN Price: $67.72
49016 49016-1177 COVER-SEAL,FUSE Price: $9.54
92002 92002-1472 BOLT,TAPPING,5X16 Price: $1.52
92037 92171-0652 CLAMP,L=60 This part replaces 92037-1069. Price: $2.61
92037A 92171-0652 CLAMP,L=60 This part replaces 92037-1316. Price: $2.61
92037B 92037-1679 CLAMP Price: $5.52
92037C 92037-1993 CLAMP Price: $5.52
92072 92072-1195 BAND,L=202 Price: $1.56
92072A 92072-1197 BAND,L=365 Price: $7.84
92075 92075-1688 DAMPER,JUNCTION BOX Price: $14.36
92170 92170-1067 CLAMP Price: $7.45
