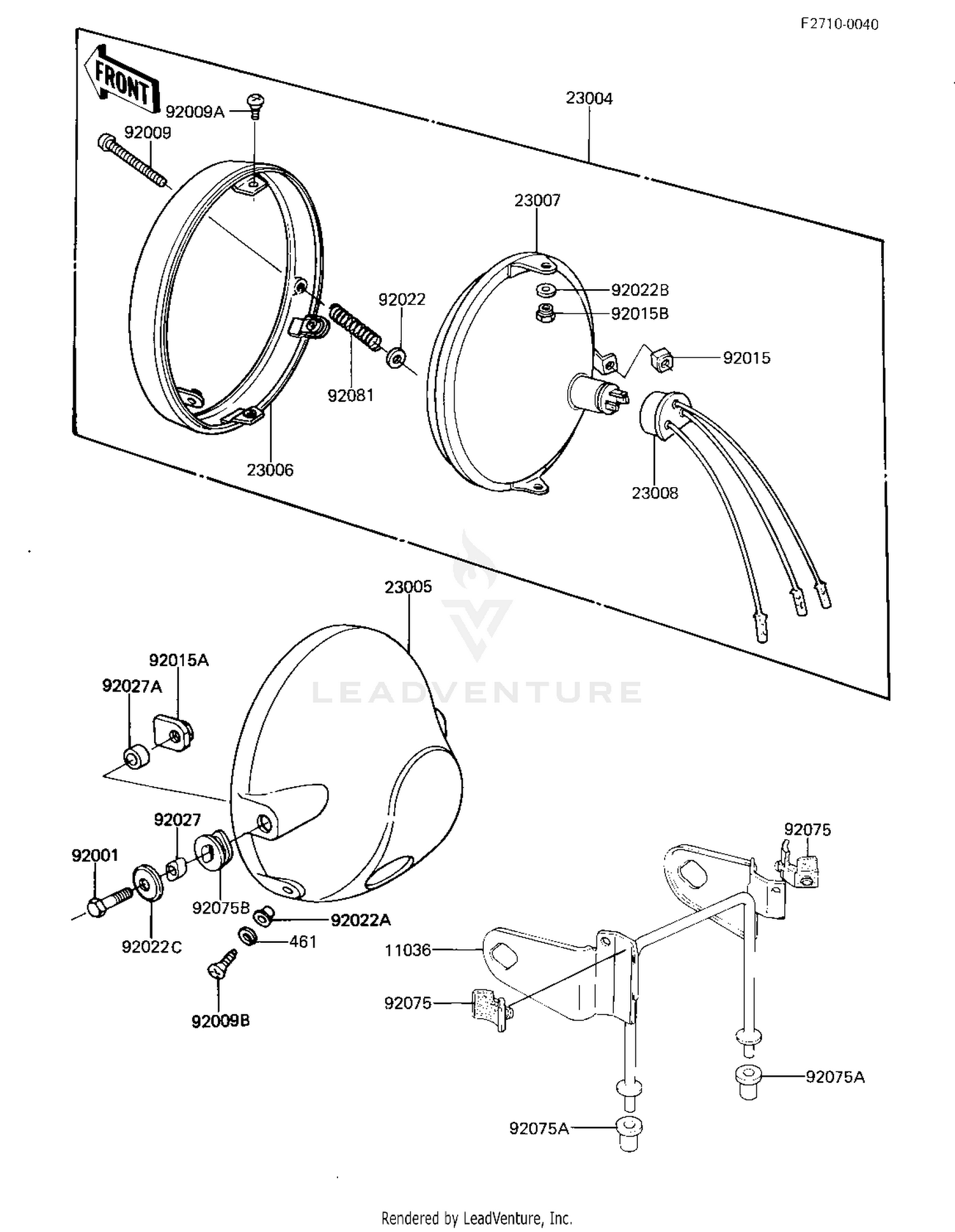

| Ref | Part Number | Description |
|---|
| 11036 |
11036-1031 |
BRACKET,HEAD LAMP Price: $94.83 |
| 23004 |
23003-022 |
LIGHT UNIT HEAD Price: $329.54 |
| 23005 |
23005-047-21 |
BODY,HEAD LIGHT,BLACK Price: $129.45 |
| 23006 |
23006-044 |
RIM HEAD LIGHT Price: $92.87 |
| 23007 |
23007-059 |
LENS UNIT HEAD LIGHT Price: $99.38 |
| 23008 |
23008-037 |
SOCKET ASSY,HEAD LAMP Price: $21.60 |
| 92001 |
92007-024 |
BOLT,10MM Price: $8.06 |
| 92009 |
23019-021 |
SCREW FORCUS ADJUST Price: $4.69 |
| 92009A |
23019-023 |
SCREW-PAN HEAD,5X12 Price: $5.43 |
| 92009B |
92009-1947 |
SCREW,5MM This part replaces 92011-024. Price: $2.58 |
| 92015 |
23020-018 |
NUT,4MM,FOCUS ADJUST Price: $4.65 |
| 92015A |
23020-021 |
NUT 10MM Price: $7.98 |
| 92015B |
23020-023 |
NUT,HEAD LAMP RIM FIT Price: $5.45 |
| 92022 |
23021-004 |
WASHER Price: $2.91 |
| 92022A |
23021-010 |
WASHER Price: $4.31 |
| 92022B |
23021-012 |
WASHER-PLAIN,5MM Price: $5.43 |
| 92022C |
92022-289 |
WASHER Price: $16.33 |
| 92027 |
92027-1129 |
COLLAR,HEAD LAMP Price: $6.35 |
| 92027A |
92027-231 |
COLLAR,HEAD LIGHT Price: $5.73 |
| 92075 |
92075-1106 |
DAMPER,LAMP BRACKET Price: $3.71 |
| 92075A |
92075-1107 |
DAMPER,LAMP BRACKET Price: $5.47 |
| 92075B |
92075-128 |
DAMPER RUBBER Price: $5.86 |
| 92081 |
23014-011 |
SPRING,FOCUS ADJUSTIN Price: $3.49 |
