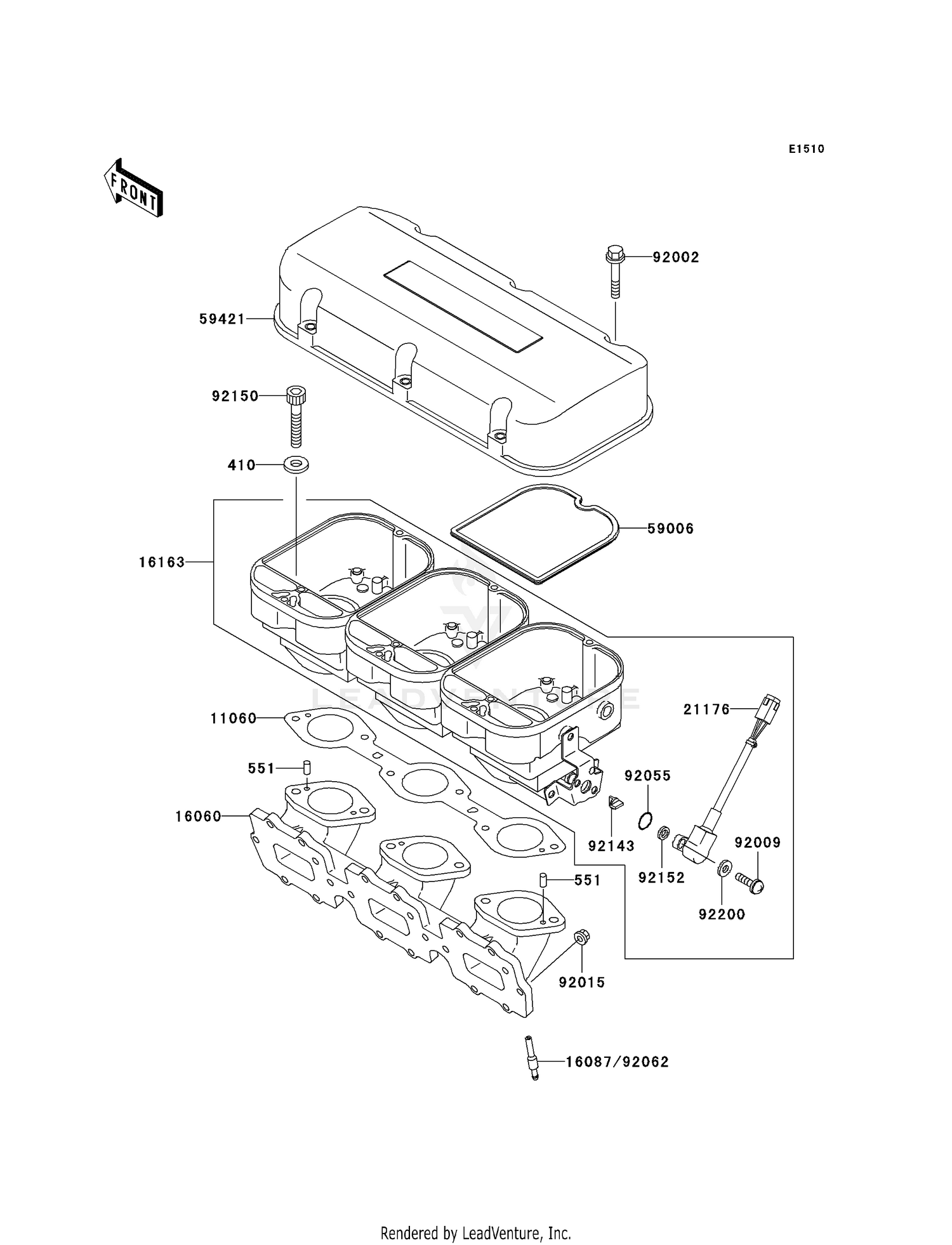

THROTTLE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 410 | 410S0600 | WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 551 | 551R0408 | PIN-DOWEL Price: $5.38 |
| 11060 | 11060-3753 | GASKET,CARBURETOR Price: $40.69 |
| 16060 | 16060-3719 | PIPE-INTAKE This part replaces 16060-3717. Price: $355.45 |
| 16163 | 16163-3705 | THROTTLE-ASSY Price: $1,532.36 |
| 21176 | 21176-3743 | SENSOR Price: $156.02 |
| 59006 | 59006-3716 | ARRESTER-FLAME Price: $58.00 |
| 59421 | 59421-3729 | COVER-INTAKE Price: $80.06 |
| 92002 | 92002-3726 | BOLT,6X30 Price: $4.69 |
| 92009 | 92009-3863 | SCREW,SENSOR Price: $2.75 |
| 92015 | 92015-3767 | NUT,6MM Price: $4.69 |
| 92055 | 92055-1574 | RING-O Price: $4.33 |
| 92062 | 92062-3720 | NOZZLE This part replaces 92062-3703. Price: $15.43 |
| 92143 | 92143-1907 | COLLAR Price: $9.50 |
| 92150 | 92150-1887 | BOLT,SOCKET,6X35 Price: $4.37 |
| 92152 | 92152-3721 | COLLAR,SENSOR Price: $9.89 |
