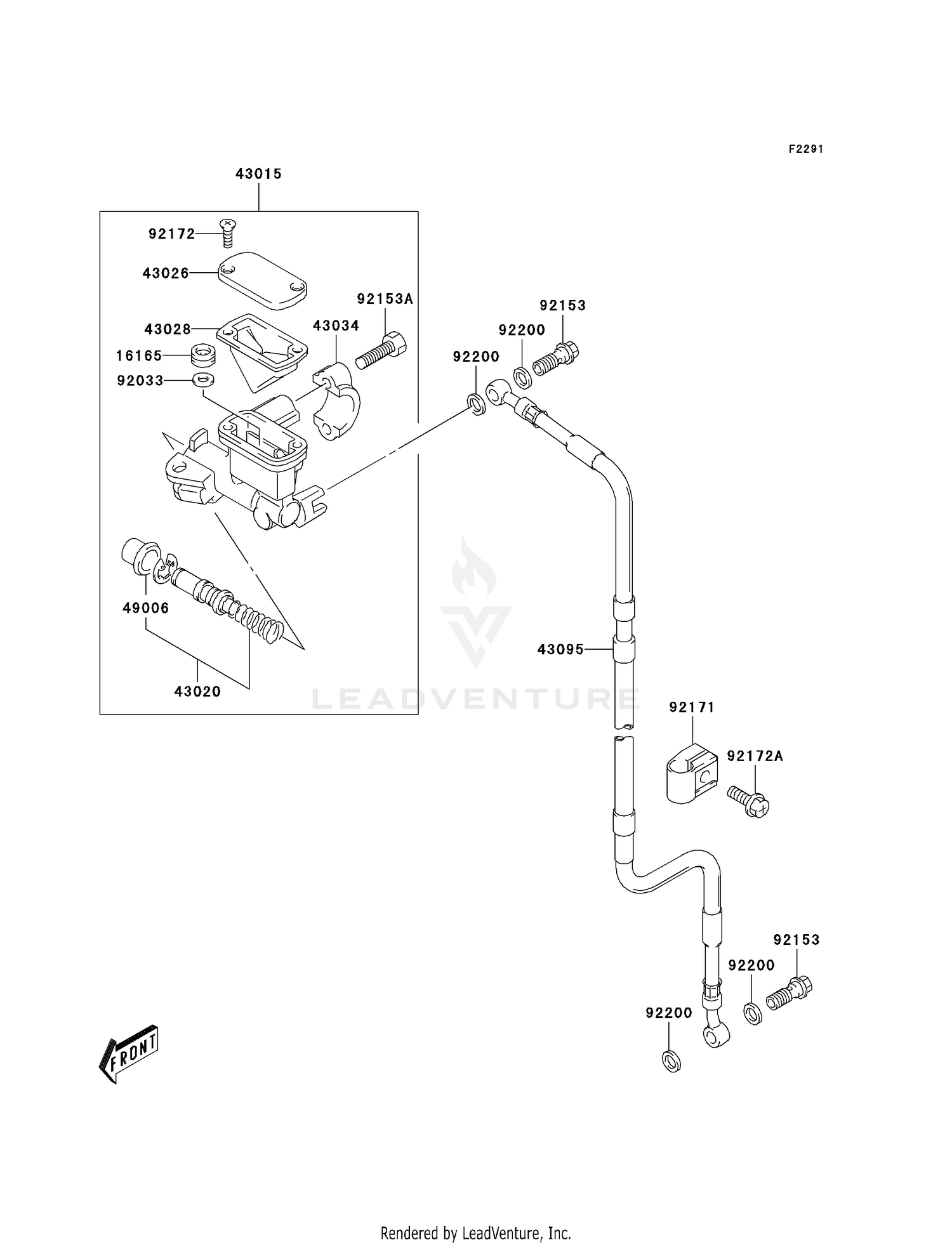

FRONT MASTER CYLINDER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 16165 | 16165-S011 | SEPARATOR Price: $8.27 |
| 43015 | 43015-S012 | CYLINDER-ASSY-MASTER Price: $241.97 |
| 43020 | 43020-S008 | PISTON-COMP-BRAKE Price: $48.87 |
| 43026 | 43026-S009 | CAP-BRAKE Price: $17.68 |
| 43028 | 43028-S014 | DIAPHRAGM Price: $10.44 |
| 43034 | 43034-S003 | HOLDER-BRAKE Price: $16.59 |
| 43095 | 43095-S015 | HOSE-BRAKE Price: $163.11 |
| 49006 | 49006-S034 | BOOT Price: $8.60 |
| 92033 | 92033-S047 | RING-SNAP Price: $4.56 |
| 92153 | 92153-S580 | BOLT This part replaces 92153-S053. Price: $8.76 |
| 92153A | 92153-S172 | BOLT Price: $4.47 |
| 92171 | 92171-S057 | CLAMP,FR BRAKE HOSE Price: $6.91 |
| 92172 | 92172-S054 | SCREW,RESERVOIR CAP Price: $2.15 |
| 92172A | 92172-S325 | SCREW This part replaces 92172-S142. Price: $1.92 |
