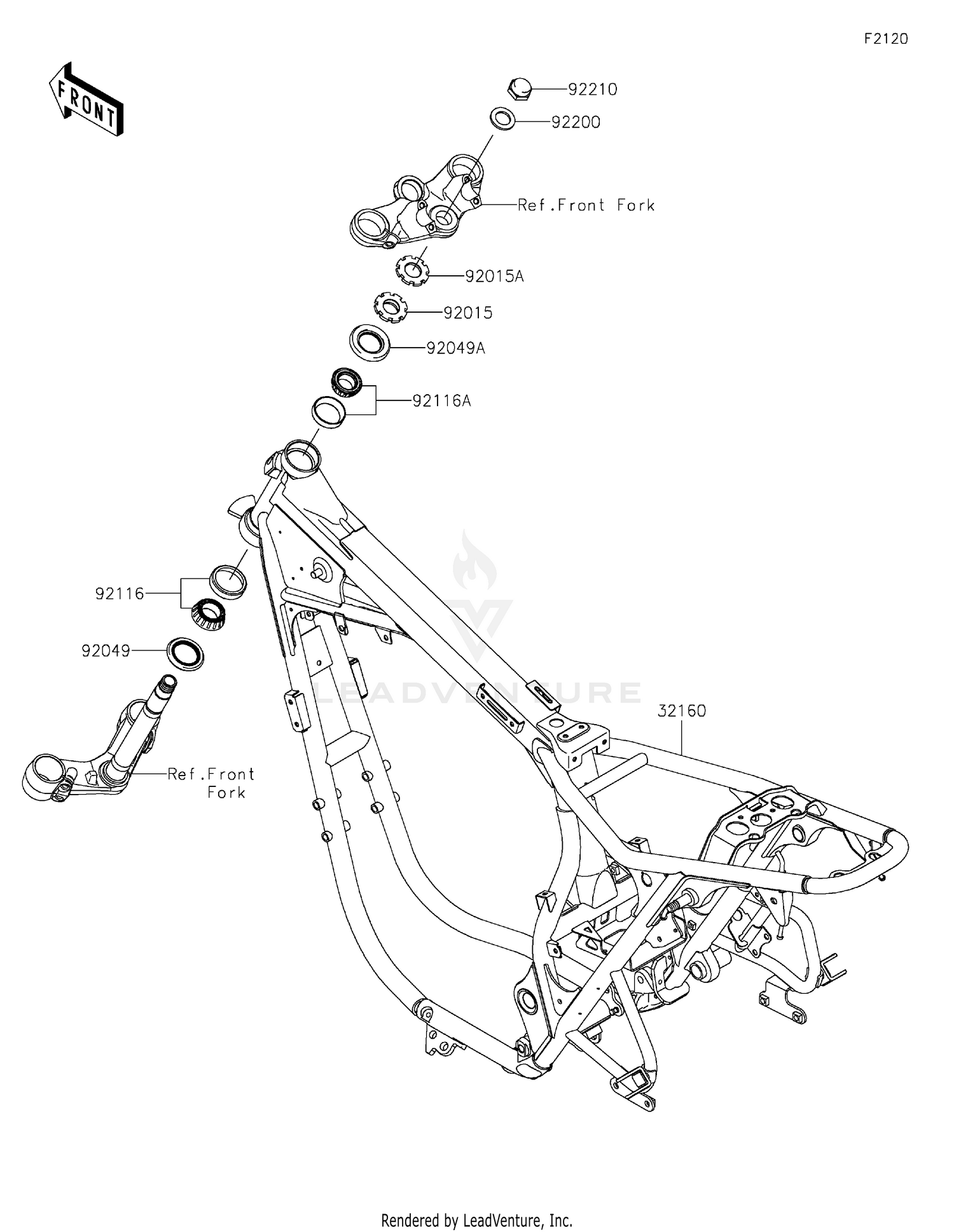

Frame
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 32160 | 32160-1888 | FRAME-COMP Price: $2,493.13 |
| 92015 | 92015-1803 | NUT,25MM Price: $27.29 |
| 92015A | 92015-1810 | NUT,25MM Price: $20.96 |
| 92049 | 92049-1162 | SEAL-OIL,XMHE36X52X4J Price: $9.28 |
| 92049A | 92049-1214 | SEAL-OIL,STEERING STEM Price: $16.69 |
| 92116 | 92116-1009 | BEARING-ROLLER,HR320/28XJ Price: $36.32 |
| 92116A | 92116-1056 | BEARING-ROLLER,HI-CAP32005JR-1 Price: $42.93 |
| 92200 | 92200-0134 | WASHER,22.5X36X3.2 Price: $9.00 |
