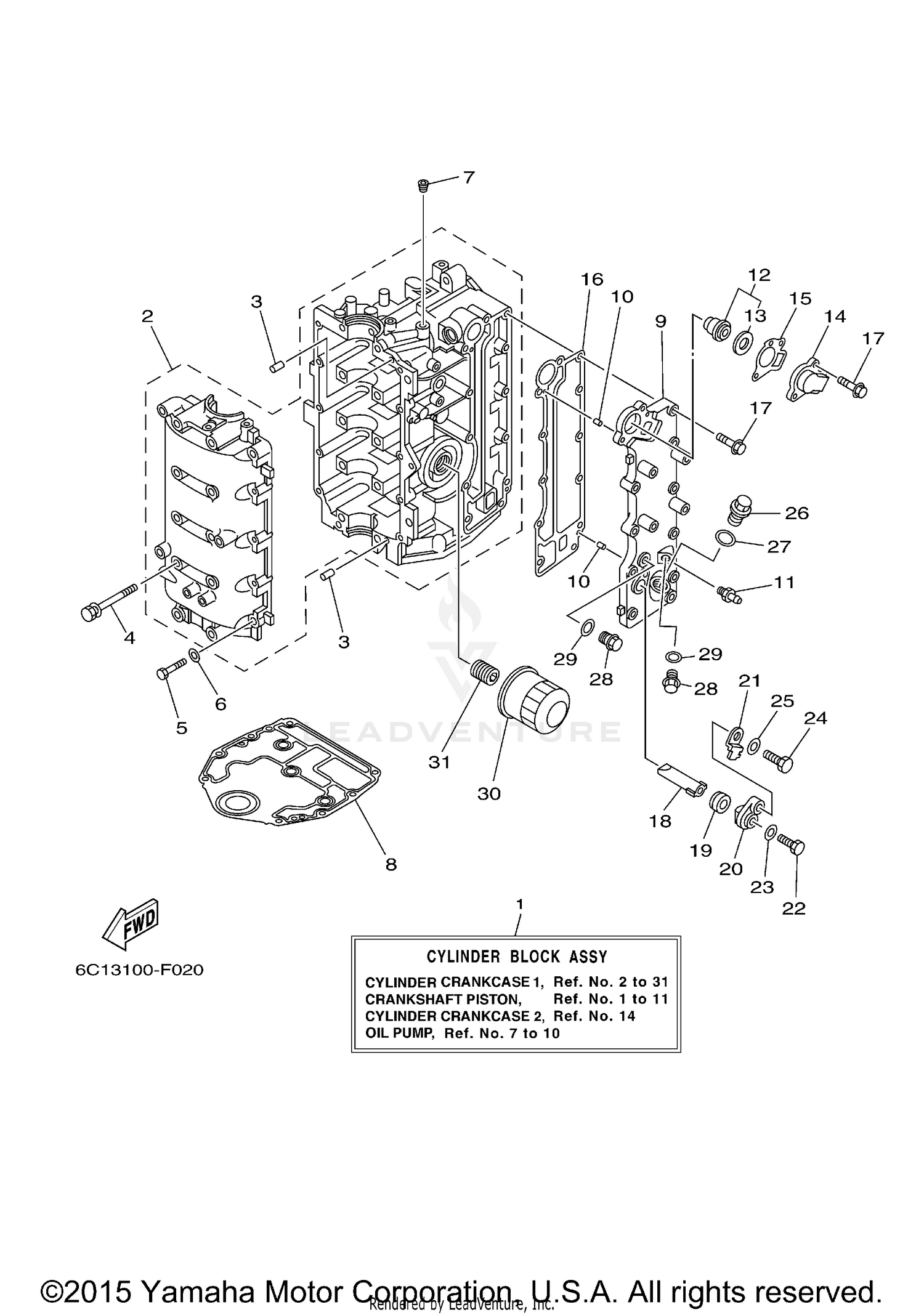

| Ref | Part Number | Description |
|---|
| 1 |
6C5-W009B-07-9S |
CYLINDER BLOCK ASSY This part replaces 6C5-W009B-02-9S. Price: $3,479.40 |
| 2 |
6C5-1510A-10-00 |
CRANKCASE ASSY This part replaces 6C5-15100-10-9S. Price: $2,212.25 |
| 3 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 4 |
90119-08M01-00 |
BOLT, WITH WASHER Price: $7.49 |
| 5 |
97014-06035-00 |
BOLT, HEXAGON This part replaces 97013-06035-00. Price: $2.65 |
| 6 |
92990-06600-00 |
WASHER, PLATE This part replaces 92903-06600-00. Price: $2.85 |
| 7 |
90344-51007-00 |
PLUG, TAPER SCREW This part replaces 90344-51003-00. Price: $6.75 |
| 8 |
67C-11351-01-00 |
GASKET, CYLINDER Price: $51.15 |
| 9 |
6C5-41113-11-9S |
OUTER COVER, EXHAUST Price: $157.80 |
| 10 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 11 |
62Y-12481-10-00 |
PIPE 1 Price: $12.55 |
| 12 |
66M-12411-01-00 |
THERMOSTAT This part replaces 6G8-12411-03-00. Price: $45.60 |
| 13 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 14 |
6C5-12413-00-9S |
COVER, THERMOSTAT Price: $19.80 |
| 15 |
62Y-12414-01-00 |
GASKET, COVER This part replaces 62Y-12414-00-00. Price: $10.15 |
| 16 |
6C5-41114-10-00 |
GASKET, EXHAUST OUTER COVER Price: $33.20 |
| 17 |
90119-06MA5-00 |
BOLT, WITH WASHER Price: $3.55 |
| 18 |
62Y-11325-00-00 |
ANODE Price: $11.40 |
| 19 |
66M-11328-01-00 |
GROMMET, ANODE This part replaces 66M-11328-00-00. Price: $1.35 |
| 20 |
66M-11327-00-94 |
COVER, ANODE Price: $10.70 |
| 21 |
66M-12535-00-00 |
PLATE Price: $6.25 |
| 22 |
97095-05012-00 |
BOLT Price: $1.75 |
| 23 |
92990-05600-00 |
WASHER, PLATE This part replaces 92995-05600-00. Price: $0.80 |
| 24 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 25 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 26 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 27 |
90430-18130-00 |
GASKET Price: $9.49 |
| 28 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 29 |
90430-14115-00 |
GASKET Price: $3.00 |
| 30 |
5GH-13440-80-00 |
ELEMENT ASSY, OIL This part replaces 5GH-13440-20-00. Price: $14.99 |
