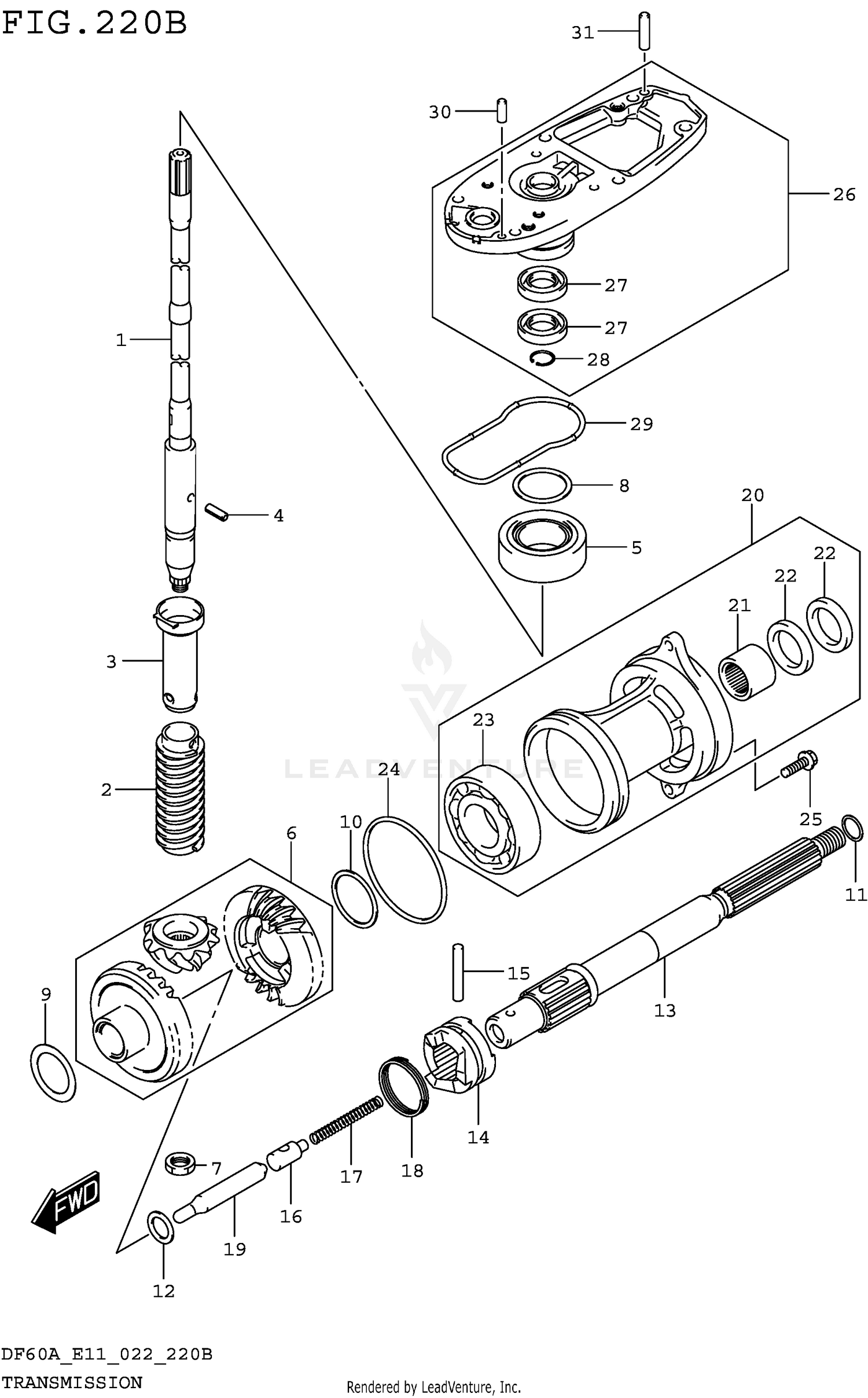

TRANSMISSION ((DF40A DF50A DF60A):E03)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 57110-88L12 | SHAFT DRIVE Price: Call Us |
| 2 | 57133-88L01 | COLLAR DRIVE SHAFT Price: Call Us |
| 3 | 57133-94400 | HOUSING DRIVE SHAFT SPRING Price: Call Us |
| 4 | 09205-03019 | PIN0SPRING (3X10) Price: Call Us |
| 5 | 09265-20015 | BEARING (20X42X15) Price: Call Us |
| 6 | 57300-88810 | PINION & GEAR SET Price: Call Us |
| 7 | 09140-12034 | NUT Price: Call Us |
| 12 | 08211-20263 | WASHER (20X26X2.0) Price: Call Us |
| 13 | 57610-94403 | SHAFT PROPELLER Price: Call Us |
| 14 | 57621-87J03 | SHIFTER CLUTCH DOG Price: Call Us |
| 15 | 09202-05022 | PIN (5.5X38.5) Price: Call Us |
| 16 | 57634-88L00 | PIN PUSH Price: Call Us |
| 17 | 09440-08043 | SPRING Price: Call Us |
| 18 | 09440-40002 | SPRING Price: Call Us |
| 19 | 57631-95303 | ROD PUSH Price: Call Us |
| 24 | 09280-75001 | O RING (D:3.3 ID:75) Price: Call Us |
| 25 | 09116-08122 | BOLT (8X30) Price: Call Us |
| 29 | 55122-88L00 | RING GEAR CASE SEAL Price: Call Us |
| 30 | 09202-06025 | PIN (6X17) Price: Call Us |
| 31 | 09202-06027 | PIN (6X23) Price: Call Us |
