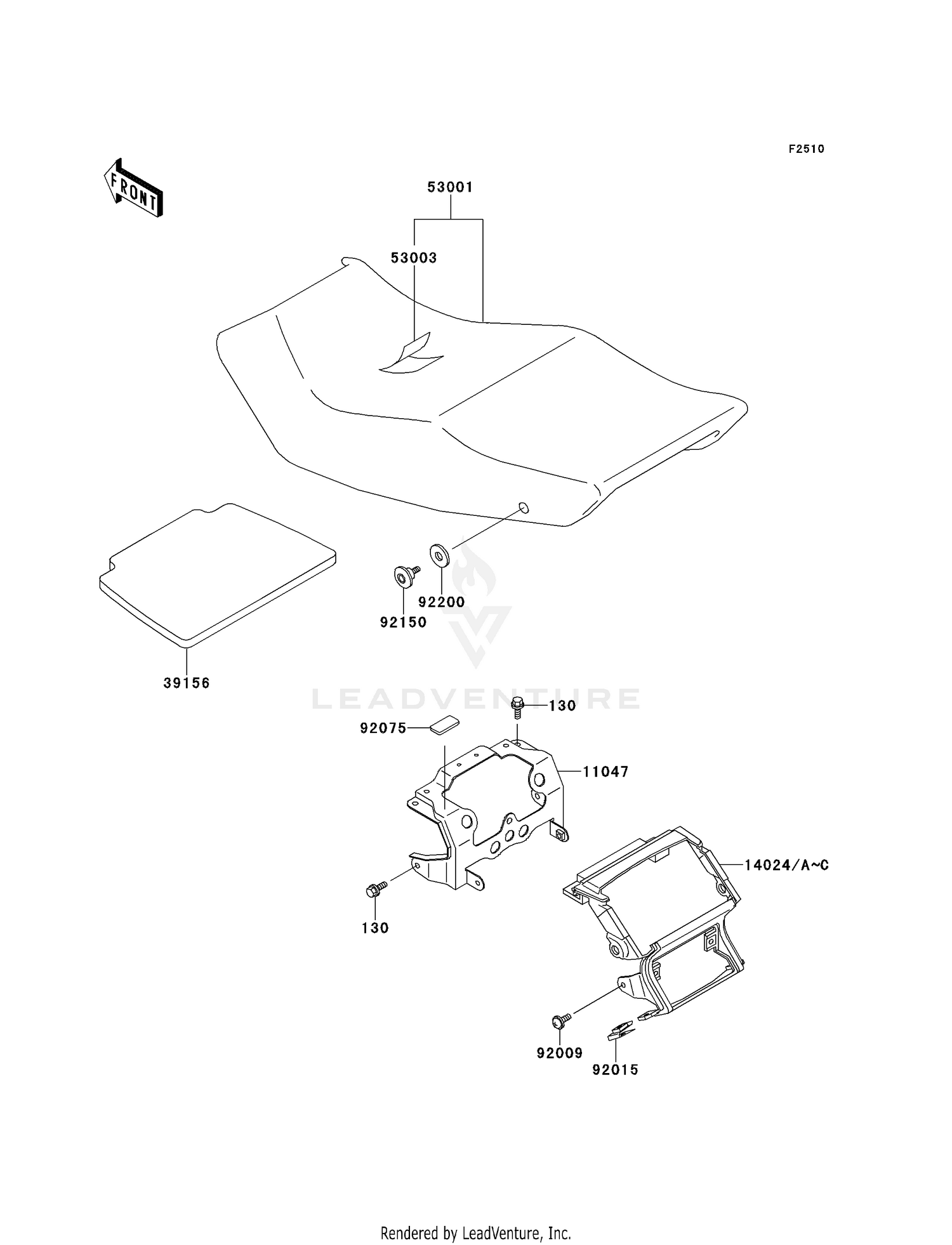

SEAT
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BB0612 | BOLT-FLANGED,6X12 This part replaces 130J0612. Price: $2.34 |
| 11047 | 11046-1950 | BRACKET,TAIL Price: $58.31 |
| 39156 | 39156-1214 | PAD,SEAT Price: $23.46 |
| 53001 | 53001-1601-MA | SEAT-ASSY,DUAL,BLACK Price: $500.20 |
| 53003 | 53003-1237-MA | LEATHER,SEAT,BLACK Price: $217.63 |
| 92009 | 92009-1662 | SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92015 | 92015-1798 | NUT,5MM Price: $6.57 |
| 92075 | 92075-1883 | DAMPER Price: $5.47 |
| 92150 | 92150-1154 | BOLT,SOCKET,6MM Price: $7.84 |
