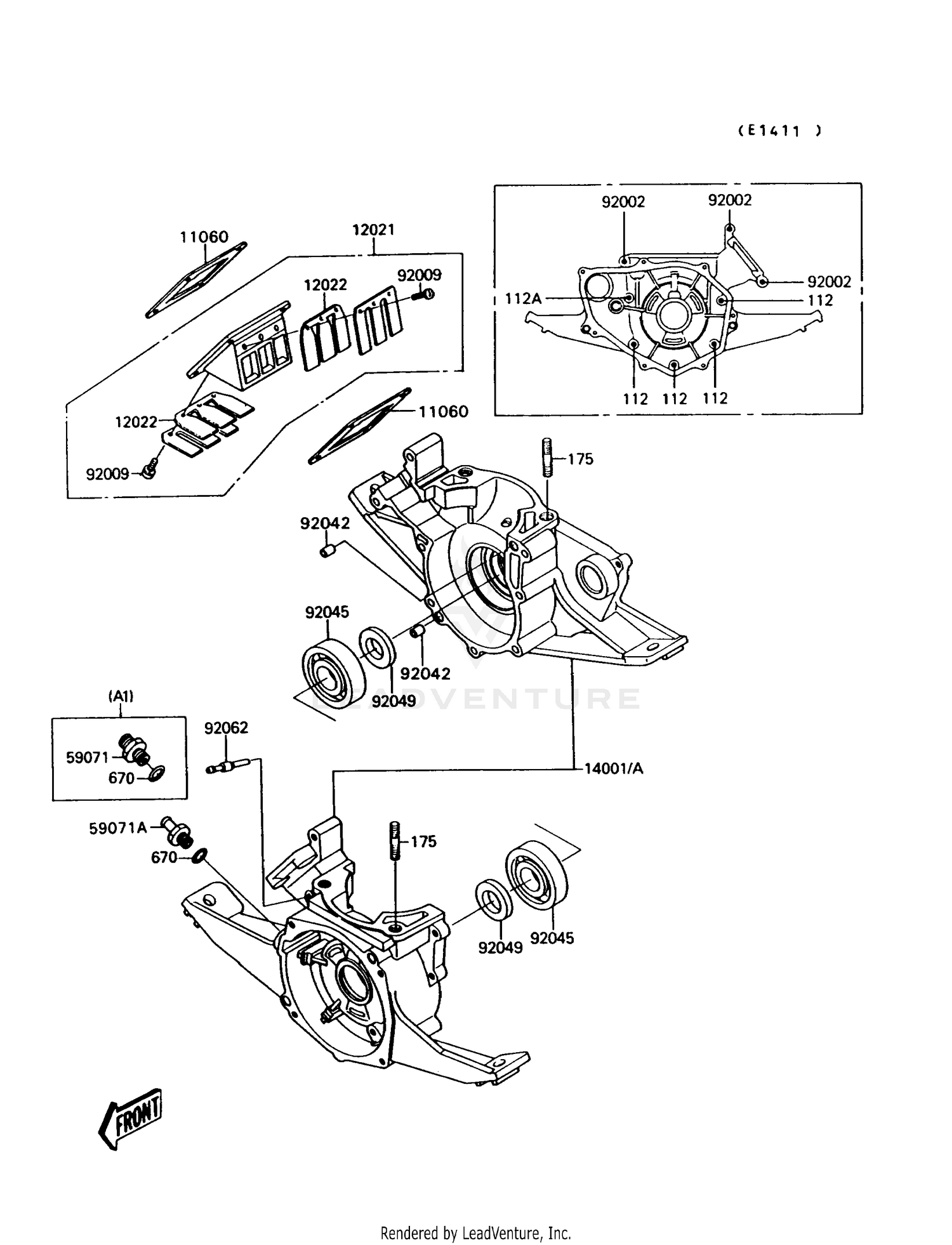

CRANKCASE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 112 | 112H0645 | BOLT-UPSET Price: $2.52 |
| 112A | 112H0665 | BOLT-UPSET Price: $2.52 |
| 175 | 175R1035 | BOLT-STUD-FINE Price: $10.56 |
| 11060 | 11060-3703 | GASKET,REED VALVE Price: $11.70 |
| 12021 | 12021-1007 | VALVE ASSY,REED Price: $146.95 |
| 12022 | 12022-1001 | VALVE-REED Price: $24.09 |
| 14001 | 14001-5199 | SET-CRANKCASE Price: $386.31 |
| 59071A | 59071-3718 | JOINT Price: $6.48 |
| 92002 | 92002-3717 | BOLT,6X45 Price: $6.05 |
| 92009 | 92009-1014 | SCREW,REED VALVE Price: $2.49 |
| 92042 | 92042-007 | PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 92045 | 92045-1120 | BEARING-BALL,6305JR2C3 Price: $36.26 |
| 92049 | 92049-1047 | SEAL-OIL Price: $16.33 |
| 92062 | 92062-3720 | NOZZLE This part replaces 92062-3703. Price: $15.43 |
