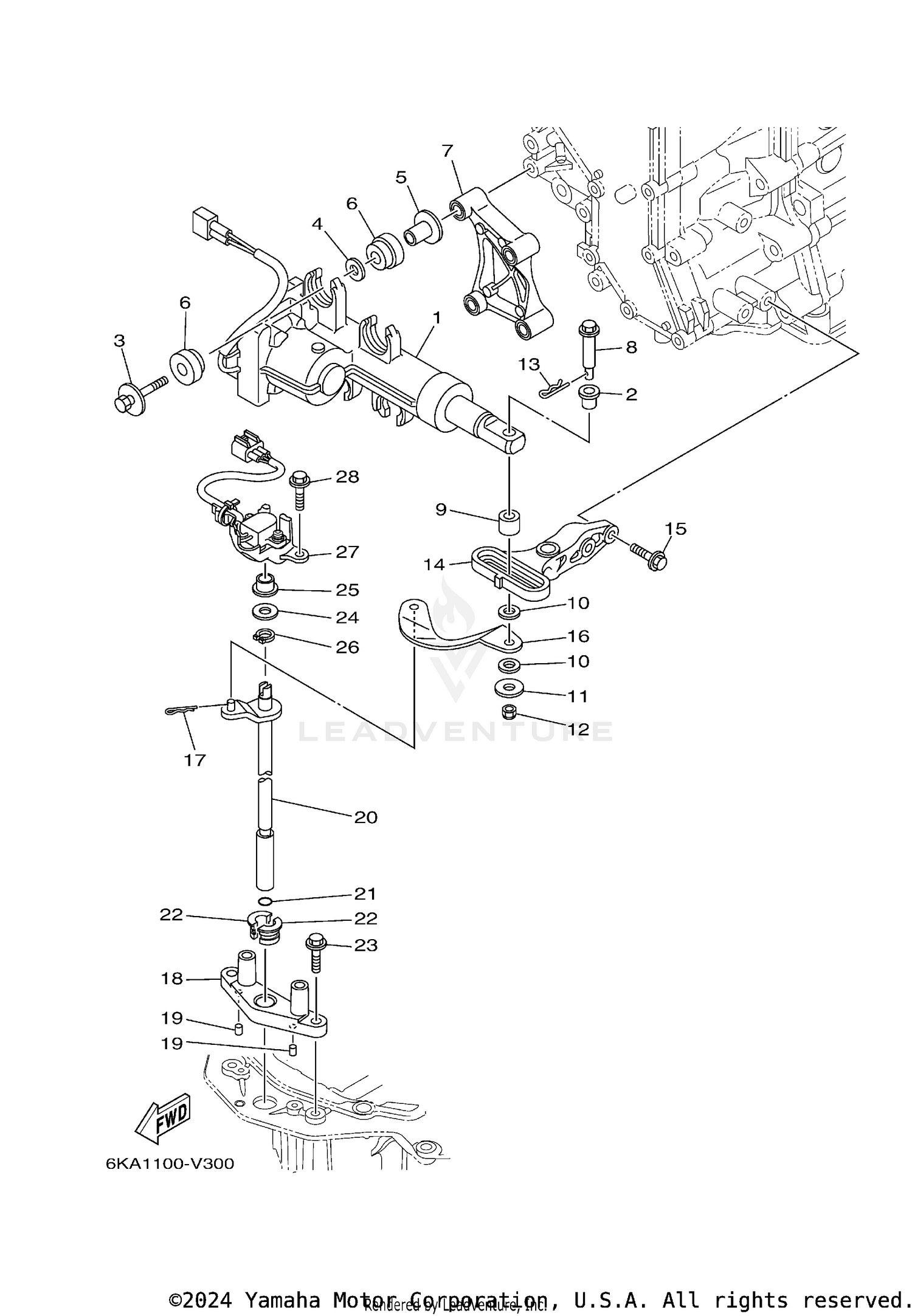

| Ref | Part Number | Description |
|---|
| 1 |
6DV-4820A-01-00 |
ACTUATOR UNIT Price: $2,508.85 |
| 2 |
90386-08008-00 |
BUSH Price: $4.60 |
| 3 |
90119-08168-00 |
BOLT, WITH WASHER Price: $3.05 |
| 4 |
90201-12064-00 |
WASHER, PLATE Price: $1.40 |
| 5 |
90387-08104-00 |
COLLAR Price: $3.45 |
| 6 |
6CE-85564-00-00 |
GROMMET Price: $4.30 |
| 7 |
6CE-44142-20-00 |
JOINT Price: $80.05 |
| 8 |
6CE-42195-10-00 |
PIN, JOINT 1 Price: $10.10 |
| 9 |
6CE-44122-20-00 |
BUSHING, SHIFT ROD L Price: $4.80 |
| 10 |
90202-08M41-00 |
WASHER, PLATE Price: $6.10 |
| 11 |
90201-06M02-00 |
WASHER, PLATE This part replaces 90201-06068-00. Price: $2.55 |
| 12 |
90185-06M07-00 |
NUT, SELF-LOCKING Price: $3.15 |
| 13 |
90468-18008-00 |
CLIP Price: $1.55 |
| 14 |
6CE-44117-10-00 |
BRACKET Price: $39.65 |
| 15 |
97E75-06525-00 |
BOLT, HEXAGON W/W Price: $1.15 |
| 16 |
6CE-44121-10-00 |
LEVER, SHIFT ROD Price: $23.00 |
| 17 |
90468-18008-00 |
CLIP Price: $1.55 |
| 18 |
6CE-44118-B0-00 |
BRACKET This part replaces 6CE-44118-A0-00. Price: $54.99 |
| 19 |
93604-07M13-00 |
PIN, DOWEL Price: $6.40 |
| 20 |
6JD-44120-01-00 |
HANDLE GEAR SHIFT ASSY Price: $221.40 |
| 21 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 22 |
90386-11001-00 |
BUSH Price: $6.60 |
| 23 |
95D75-06025-00 |
BOLT, FLANGE DEEP Price: $3.45 |
| 24 |
90201-11008-00 |
WASHER, PLATE Price: $12.15 |
| 25 |
90386-10001-00 |
BUSH Price: $3.00 |
| 26 |
93410-10082-00 |
CIRCLIP Price: $4.40 |
| 27 |
6CE-68303-00-00 |
SENSOR ASSY Price: $370.35 |
