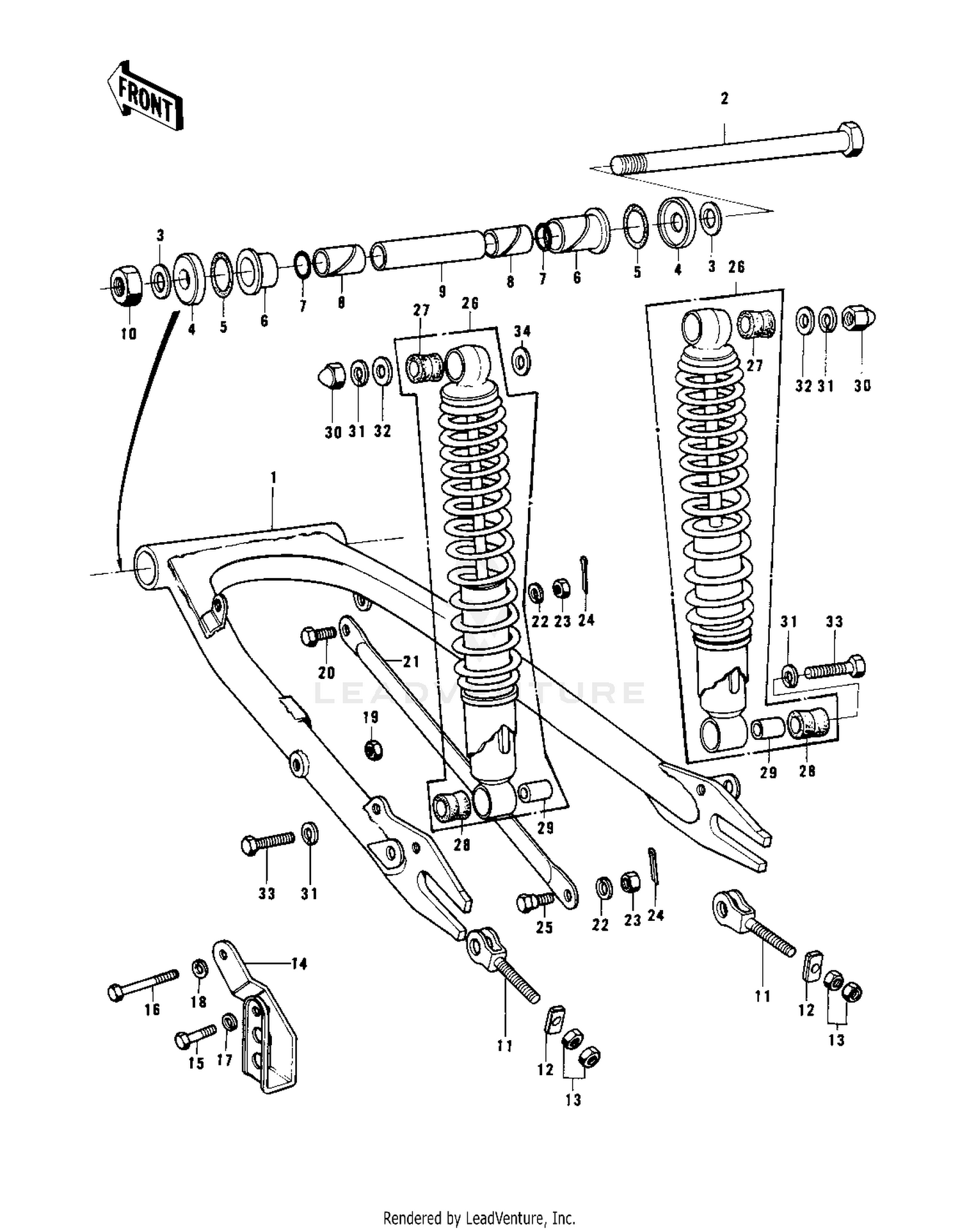

| Ref | Part Number | Description |
|---|
| 2 |
33032-034 |
SHAFT-SWING ARM PIVOT Price: $38.31 |
| 3 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 4 |
33035-005 |
CAP-SWINGING ARM Price: $8.37 |
| 6 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 8 |
33034-016 |
SLEEVE-SWINGING ARM Price: $21.33 |
| 9 |
33036-007 |
COLLAR,SWING ARM,LONG Price: $9.82 |
| 10 |
92210-1373 |
NUT,LOCK,12MM This part replaces 92019-009. Price: $7.29 |
| 13 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 14 |
55020-016 |
GUARD,CHAIN Price: $21.87 |
| 15 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 16 |
92151-1369 |
BOLT,FLANGED,10X50 This part replaces 92001-1254. Price: $4.38 |
| 17 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 18 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 19 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 20 |
92003-143 |
BOLT,HEX HEAD,AX24 Price: $3.89 |
| 21 |
43007-039 |
TORQUE LINK,REAR BRK Price: $14.78 |
| 22 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 23 |
320B0800 |
NUT,8MM Price: $2.42 |
| 24 |
550AA2020 |
PIN-COTTER,2.0X20 This part replaces 550D2020. Price: $1.04 |
| 25 |
92003-144 |
BOLT,RR TORQUE LINK Price: $6.84 |
| 27 |
45017-010 |
BUSH A-SHCK ABS RUBER Price: $10.17 |
| 28 |
92075-1020 |
DAMPER,SHOCKABSORBER Price: $4.92 |
| 29 |
45016-003 |
BUSH SHCK ABS PVT SFT Price: $15.92 |
| 30 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 31 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 32 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 33 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
