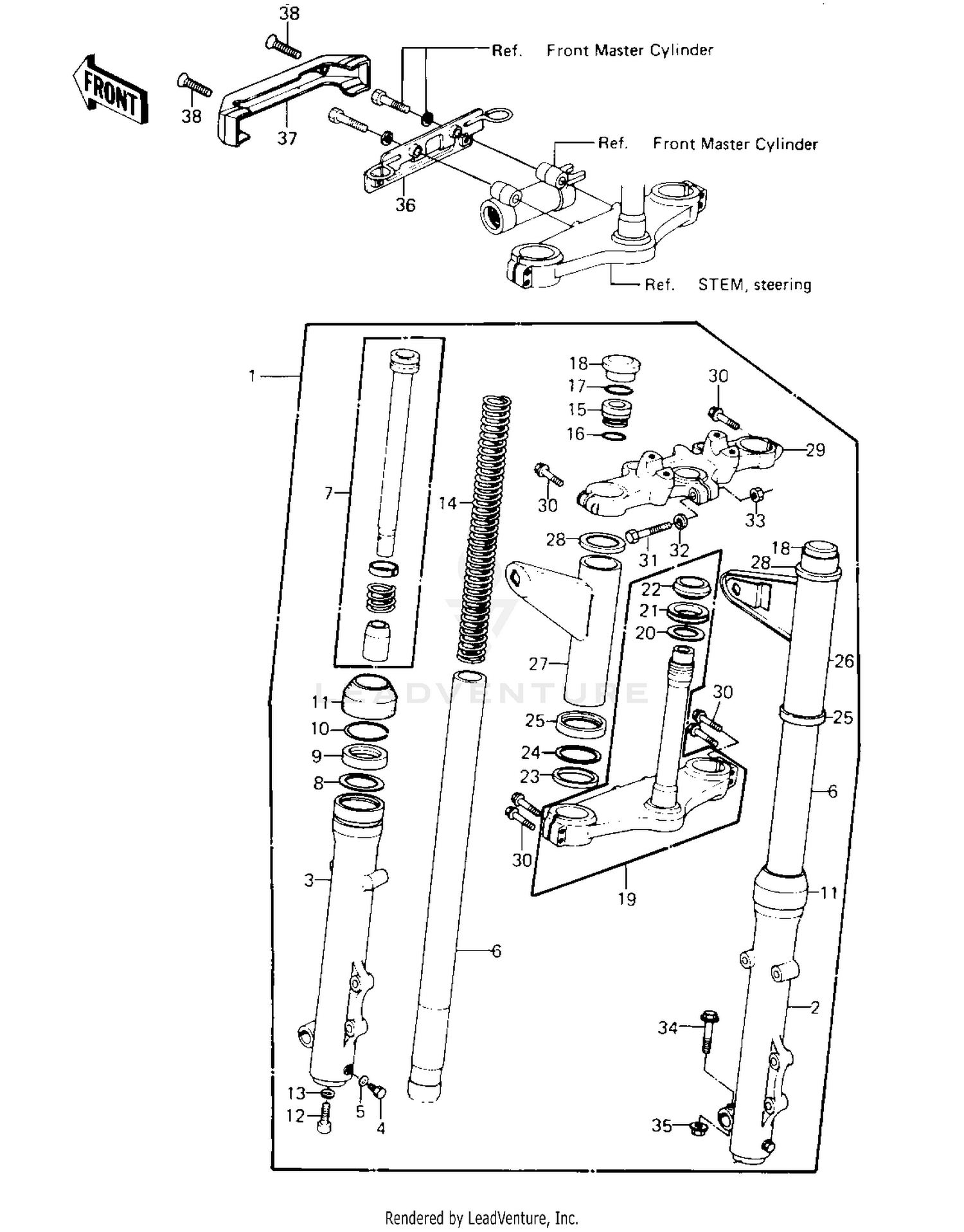

| Ref | Part Number | Description |
|---|
| 1 |
44001-1202 |
FORK-FRONT Price: $1,520.54 |
| 2 |
44006-1018 |
TUBE,RH,FORK OUTER Price: $288.15 |
| 3 |
44005-1018 |
TUBE,LH,FORK OUTER Price: $281.02 |
| 4 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 5 |
44045-052 |
GASKET,DRAIN PLUG This part replaces 44045-047. Price: $6.10 |
| 6 |
44013-1023 |
TUBE,FORK,INNER Price: $411.66 |
| 7 |
44022-1024 |
CYLINDER-FORK Price: $107.11 |
| 8 |
92026-1038 |
SPACER,FORK Price: $9.58 |
| 10 |
92033-1193 |
RING-SNAP,FORK This part replaces 92033-1022. Price: $6.33 |
| 12 |
44041-078 |
BOLT,FORK CYLINDER Price: $9.89 |
| 13 |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 14 |
44026-1022 |
SPRING,FORK INNER Price: $71.53 |
| 15 |
44029-1006 |
GUIDE,SPRING Price: $14.60 |
| 17 |
92033-1023 |
RING-SNAP Price: $4.87 |
| 18 |
11012-1699 |
CAP,FORK TOP This part replaces 11012-1061. Price: $11.19 |
| 19 |
44037-1013 |
STEM,STEERING Price: $879.71 |
| 20 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 21 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 22 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 23 |
92075-1137 |
DAMPER RUBBER,FORK Price: $8.72 |
| 24 |
92022-1111 |
WASHER,FORK COVER Price: $11.44 |
| 25 |
13169-1134 |
GUIDE,FORK COVER,LOW Price: $12.33 |
| 28 |
13169-1135 |
GUIDE,FORK COVER,UPPE Price: $9.03 |
| 29 |
44039-1011 |
HEAD,STEERING STEM Price: $388.32 |
| 30 |
92001-1149 |
BOLT,8X40 Price: $8.41 |
| 31 |
92001-1064 |
BOLT,HEX HEAD,8X55 Price: $9.77 |
| 32 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 33 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 34 |
92001-1136 |
BOLT,HEX HEAD,8X45 Price: $8.57 |
| 35 |
92015-1398 |
NUT,8MM This part replaces 92015-1055. Price: $4.80 |
| 36 |
11034-1790 |
BRACKET,FORK COVER Price: $50.45 |
| 37 |
44033-1053 |
COVER,FORK Price: $49.78 |
