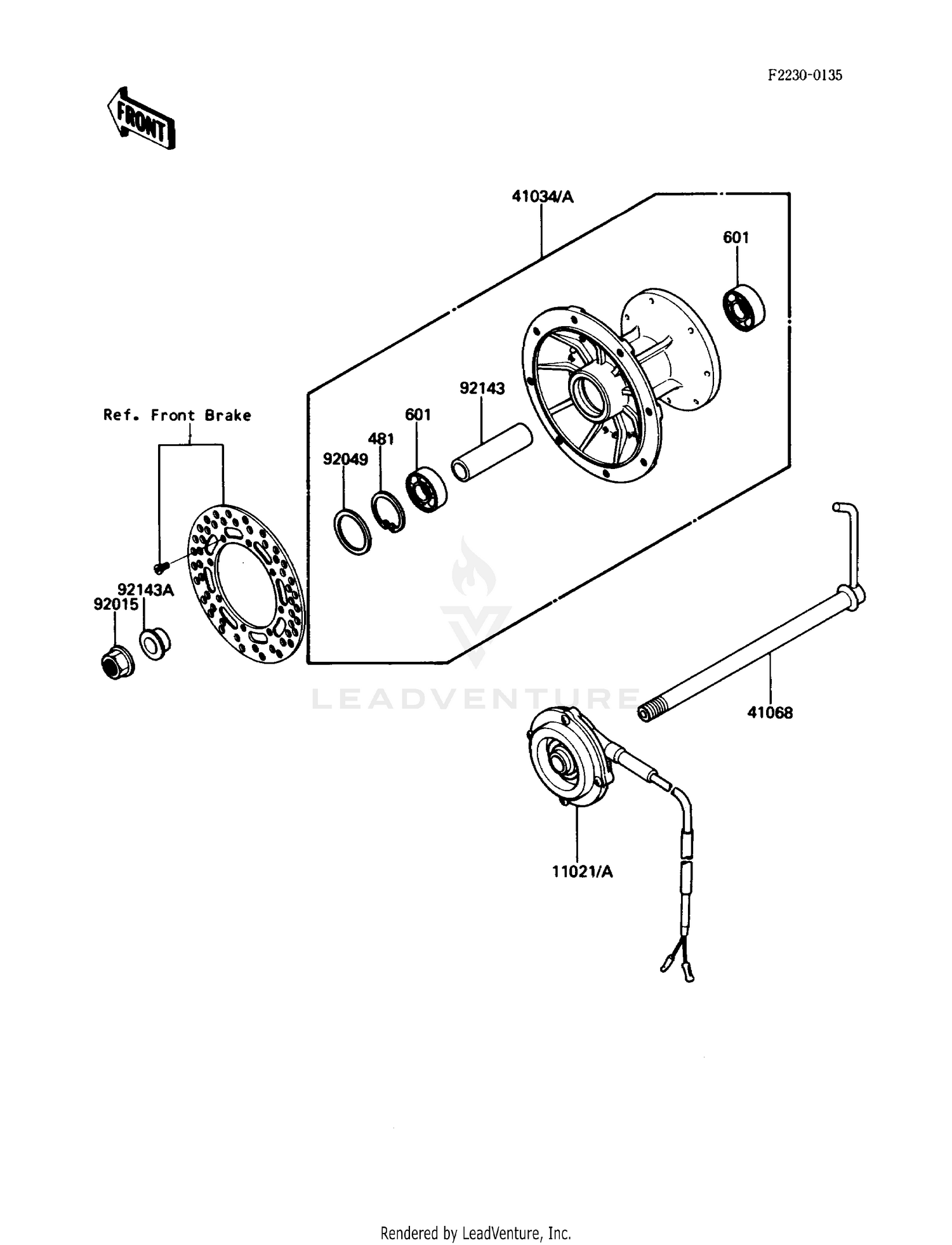

FRONT HUB
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 481 | 481J3500 | CIRCLIP-TYPE-C,35MM Price: $1.96 |
| 11021A | 11021-1064 | CASE-ASSY,DISTANCE SE Price: $411.63 |
| 41034A | 41034-1156 | DRUM-ASSY,FORK BRAKE Price: $499.32 |
| 41068 | 41068-1210 | AXLE,FR Price: $71.30 |
| 92015 | 92015-1407 | NUT,14MM This part replaces 92015-1032. Price: $9.91 |
| 92049 | 92049-1176 | SEAL-OIL,MH20354.5 Price: $15.04 |
| 92143 | 92027-1958 | COLLAR,15.2X22.2X75 Price: $40.86 |
| 92143A | 92027-1959 | COLLAR,L=12 Price: $16.69 |
