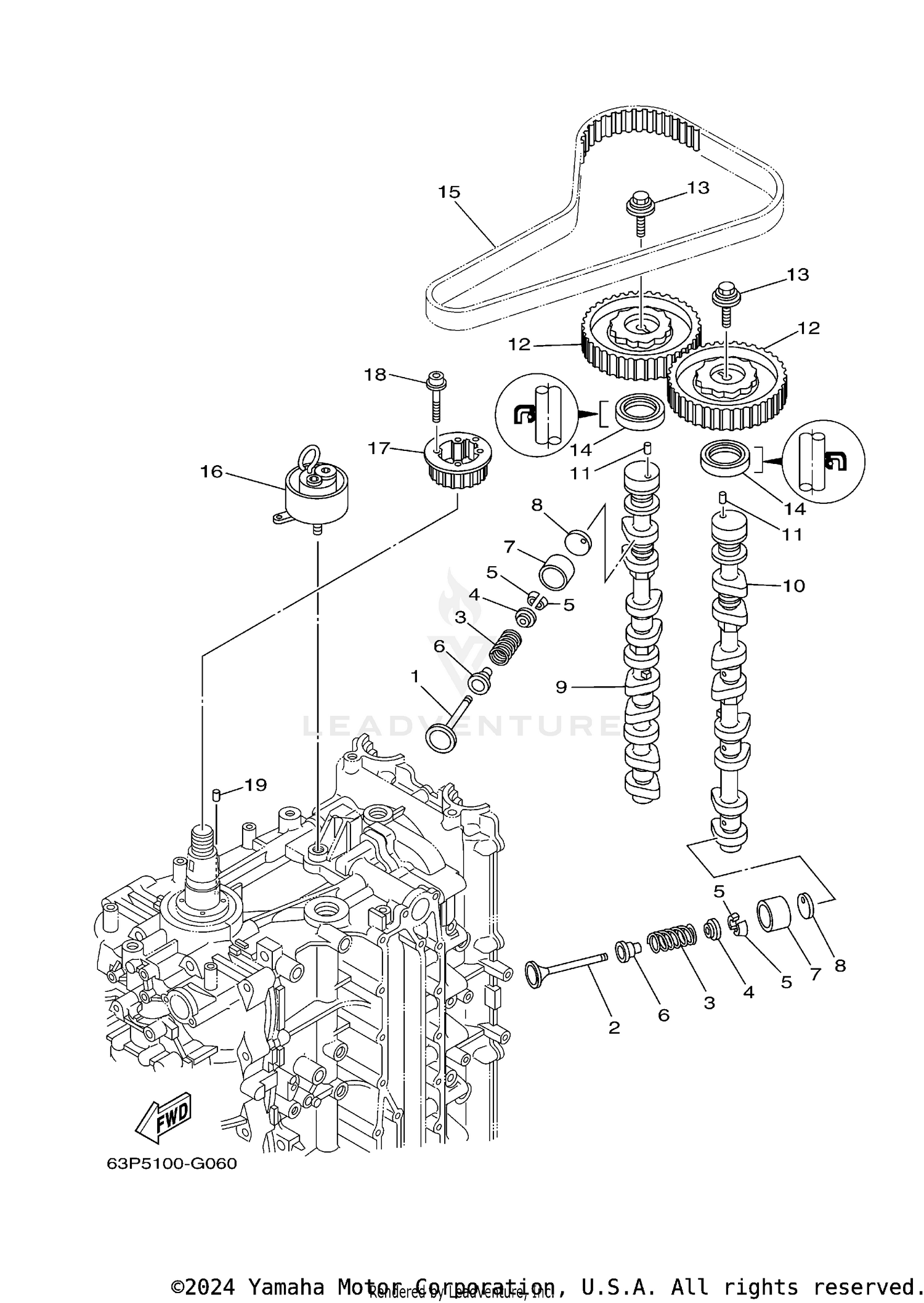

| Ref | Part Number | Description |
|---|
| 1 |
69J-12111-00-00 |
VALVE, INTAKE Price: $62.25 |
| 2 |
69J-12121-00-00 |
VALVE, EXHAUST Price: $97.60 |
| 3 |
69J-12113-01-00 |
SPRING, VALVE INNER Price: $13.00 |
| 4 |
69J-12117-01-00 |
RETAINER, VALVE SPRING Price: $6.25 |
| 5 |
69J-12118-00-00 |
COTTER, VALVE Price: $6.75 |
| 6 |
69J-12119-00-00 |
SEAL, VALVE STEM Price: $12.75 |
| 7 |
69J-12153-00-00 |
LIFTER, VALVE Price: $45.85 |
| 9 |
63P-12171-00-00 |
CAMSHAFT 1 Price: $420.45 |
| 10 |
63P-12181-00-00 |
CAMSHAFT 2 Price: $420.65 |
| 11 |
93605-10108-00 |
PIN, DOWEL Price: $9.49 |
| 12 |
63P-11537-00-00 |
GEAR, DRIVEN Price: $133.95 |
| 13 |
68V-12157-00-00 |
BOLT Price: $14.35 |
| 14 |
93102-38008-00 |
OIL SEAL Price: $22.55 |
| 15 |
63P-46241-00-00 |
BELT Price: $174.35 |
| 16 |
63P-11590-05-00 |
TENSIONER ASSY This part replaces 63P-11590-01-00. Price: $710.50 |
| 17 |
63P-11536-01-00 |
GEAR, DRIVE Price: $68.05 |
| 18 |
90110-05020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.15 |
