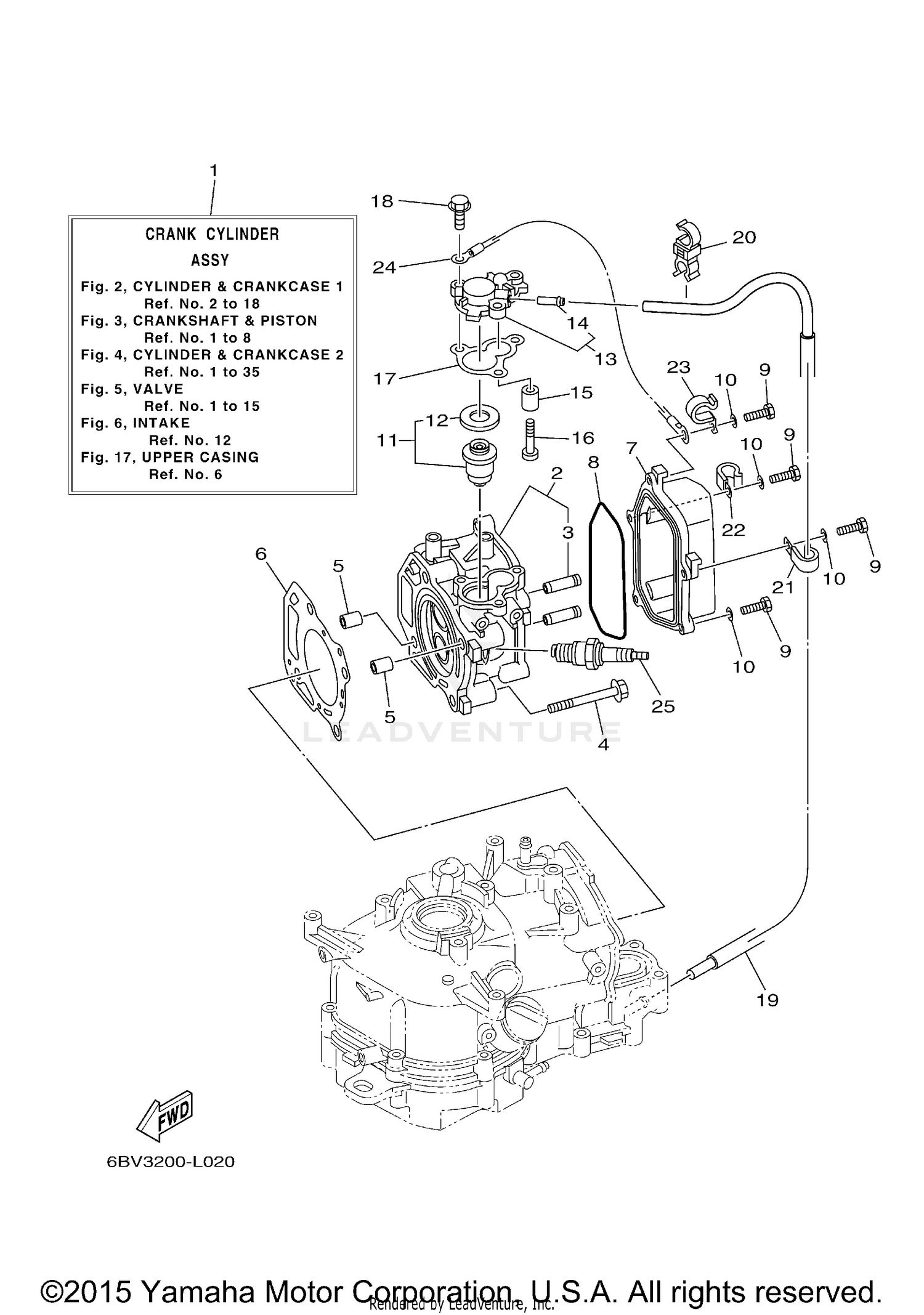

| Ref | Part Number | Description |
|---|
| 1 |
6EE-W0090-00-1S |
CRANK CYLINDER ASSY This part replaces 6BX-WE090-00-1S. Price: $844.45 |
| 2 |
99999-04176-00 |
HEAD, CYLINDER WITH EX VALVE This part replaces 6BX-E1111-00-1S. Price: $685.60 |
| 3 |
67D-11133-10-00 |
GUIDE, VALVE 1 Price: $115.75 |
| 4 |
90105-08M36-00 |
BOLT, WASHER BASED Price: $7.49 |
| 5 |
99530-10114-00 |
PIN, DOWEL This part replaces 99510-10114-00. Price: $2.65 |
| 6 |
6BX-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $27.65 |
| 7 |
6EE-E1191-00-00 |
COVER, CYLINDER HEAD 1 This part replaces 6BX-E1191-00-5B. Price: $117.95 |
| 8 |
6BX-11356-00-00 |
SEAL, CYLINDER 2 Price: $14.30 |
| 9 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 10 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 11 |
66M-12411-01-00 |
THERMOSTAT Price: $45.60 |
| 12 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 13 |
6EE-E2413-00-1S |
COVER, THERMOSTAT This part replaces 68D-E2413-00-1S. Price: $52.75 |
| 14 |
652-24461-00-00 |
PIPE, JOINT 4 This part replaces 650-24378-00-00. Price: $5.80 |
| 15 |
6G8-11325-00-00 |
ANODE This part replaces 68D-E1325-00-00. Price: $3.60 |
| 16 |
98580-05525-00 |
SCREW, PAN HEAD This part replaces 97880-05025-00. Price: $2.00 |
| 17 |
67D-12414-A0-00 |
GASKET, COVER This part replaces 68D-E2414-A0-00. Price: $6.30 |
| 18 |
90119-06MA2-00 |
BOLT, WITH WASHER Price: $3.20 |
| 19 |
90445-09136-00 |
HOSE This part replaces 6BX-F4323-00-00. Price: $12.30 |
| 20 |
90464-09021-00 |
CLAMP Price: $4.50 |
| 21 |
90465-06M86-00 |
CLAMP Price: $7.15 |
| 22 |
90465-06M86-00 |
CLAMP Price: $7.15 |
| 23 |
90465-08371-00 |
CLAMP Price: $4.25 |
| 24 |
6R3-82519-00-00 |
WIRE, EARTH LEAD This part replaces 6G0-82519-00-00. Price: $14.75 |
