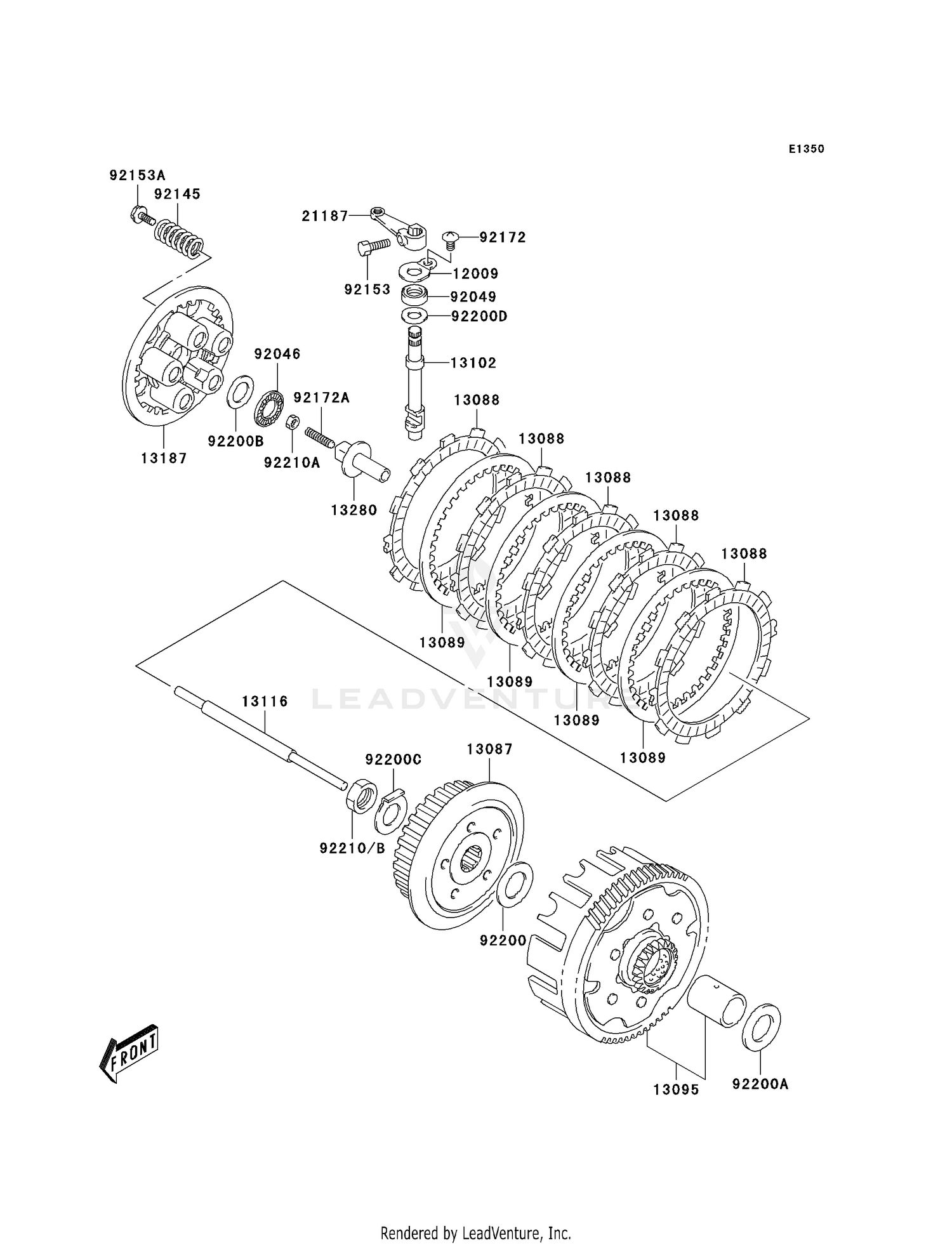

CLUTCH
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 12009 | 12009-S003 | RETAINER-VALVE SPRING Price: $5.31 |
| 13087 | 13087-S001 | HUB-CLUTCH Price: $70.24 |
| 13088 | 13088-S001 | PLATE-FRICTION Price: $18.84 |
| 13089 | 13089-S001 | PLATE-CLUTCH Price: $7.87 |
| 13095 | 13095-S003 | HOUSING-COMP-CLUTCH Price: $218.73 |
| 13102 | 13102-S002 | RELEASE-COMP-CLUTCH Price: $42.05 |
| 13116 | 13116-S009 | ROD-PUSH This part replaces 13116-S002. Price: $11.24 |
| 13187 | 13187-S002 | PLATE-CLUTCH OPERATIN Price: $22.47 |
| 13280 | 13280-S012 | HOLDER,CLUTCH PUSH Price: $24.70 |
| 21187 | 21187-S001 | ARM-ASSY,CLUTCH RELEA Price: $25.29 |
| 92046 | 92046-S006 | BEARING-NEEDLE,15X28X Price: $8.69 |
| 92049 | 92049-S018 | SEAL-OIL,10X20X6 Price: $9.03 |
| 92145 | 92145-S041 | SPRING Price: $4.69 |
| 92153 | 92153-S588 | BOLT This part replaces 92153-S126. Price: $1.92 |
| 92153A | 92153-S137 | BOLT,5X16 Price: $2.79 |
| 92172 | 92172-S316 | SCREW This part replaces 92172-S092. Price: $1.92 |
| 92172A | 92172-S093 | SCREW Price: $4.20 |
| 92200 | 92200-S025 | WASHER Price: $4.29 |
| 92200A | 92200-S055 | WASHER Price: $4.29 |
| 92200B | 92200-S056 | WASHER,15.5X28X1 Price: $4.81 |
| 92200C | 92200-S060 | WASHER Price: $2.79 |
| 92200D | 92200-S061 | WASHER,10X20X1.0 Price: $2.70 |
| 92210 | 92210-S008 | NUT Price: $4.29 |
