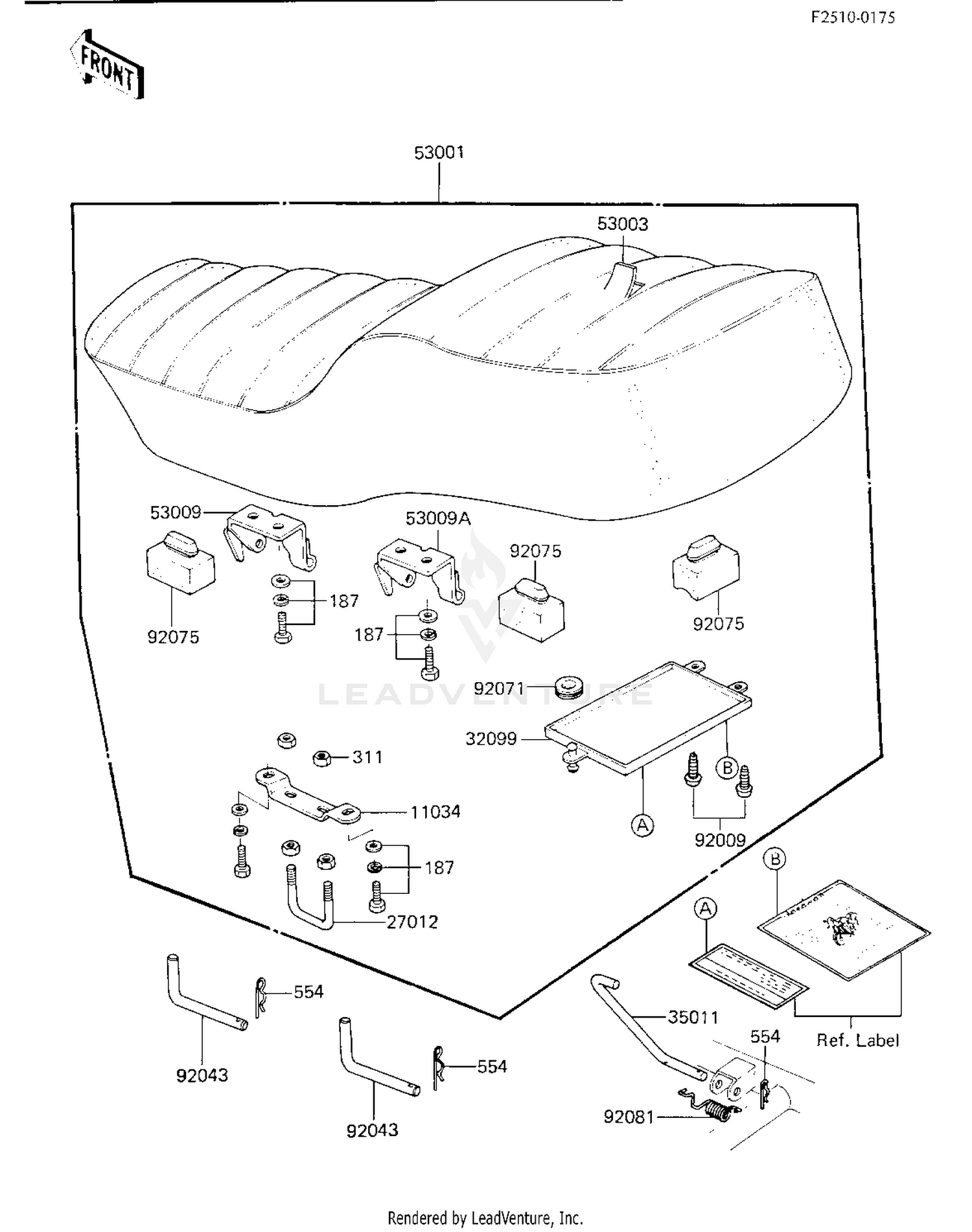

SEAT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 187 | 187AA0614 | BOLT-UPSET-WSP This part replaces 187B0614. Price: $0.89 |
| 311 | 311AA0600 | NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 11034 | 11034-1329 | BRACKET,SEAT CATCH Price: $16.66 |
| 27012 | 53056-002 | CATCH, SEAT Price: $16.66 |
| 32099 | 32099-011 | CASE Price: $16.66 |
| 35011 | 35011-1034 | STAY,SEAT STAND Price: $8.06 |
| 53001 | 53001-1163 | SEAT-ASSY Price: $437.18 |
| 53003 | 53003-1045 | LEATHER,SEAT Price: $180.28 |
| 53009 | 53009-1031 | HINGE Price: $10.38 |
| 53009A | 53009-1033 | HINGE,SEAT Price: $11.86 |
| 92009 | 92009-1043 | SCREW Price: $4.77 |
| 92043 | 92043-1021 | PIN,SEAT PIVOT Price: $5.38 |
| 92071 | 92071-056 | GROMMET Price: $4.26 |
| 92075 | 92075-099 | DAMPER Price: $5.52 |
| 92081 | 92081-1053 | SPRING,SEAT HOOK Price: $15.20 |
