| Ref | Part Number | Description |
|---|

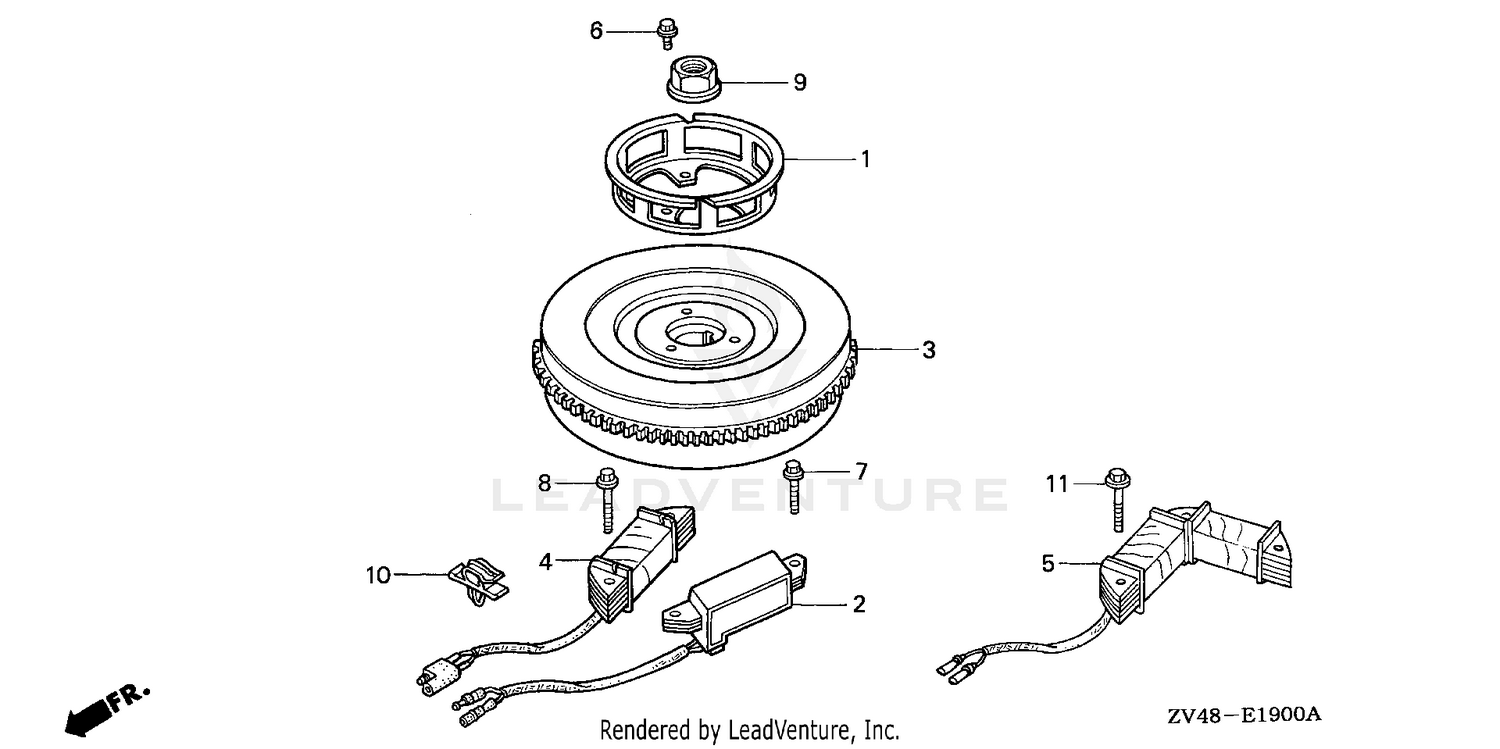

| 1 |
28451-ZV4-003 |
PULLEY, STARTER Price: $23.48 |
| 2 |
30590-ZV4-651 |
COIL ASSY., EXCITER Price: $63.12 |
| 3 |
31100-ZV4-010 |
SEE PART DETAILS - PRI; FLYWHEEL Price: $308.47 |
| 5 |
31630-ZV4-861 |
COIL ASSY., CHARGE (12V-10A) Price: $91.26 |
| 6 |
90016-920-000 |
BOLT, FLANGE (6X12) Price: $2.46 |
| 7 |
90121-ZV0-010 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Price: $3.14 |
| 9 |
90201-ZV4-010 |
SEE PART DETAILS - PRI; NUT, SPECIAL (16MM) Price: $9.02 |
| 10 |
506153209 |
Black, Handle Bar Price: $99.99 |
| 10 |
90688-ZV4-003 |
CLIP, CORD Price: $2.94 |
| 20 |
506152560 |
Grip 148mm Price: $16.99 |
| 25 |
506152856 |
Heated Film Price: $49.99 |
| 50 |
506153176 |
Thermal Insulation Price: $6.19 |
| 400k |
506152820 |
Spring Price: $9.29 |
| 400n |
506152520 |
Cushion Price: $15.72 |
| 400p |
205588554 |
Socket Head Screw M8 X 85 Price: $1.29 |
| 400q |
390402200 |
Pop Rivet 3/16" Price: $0.35 |
| 402 |
506153028 |
Steering Stopper Price: $6.09 |
| 405 |
506152894 |
Steering Support Price: $14.99 |
| 410 |
506152894 |
Steering Support Price: $14.99 |
| 420 |
250000904 |
Button Head Torx Screw M8 X 38 Price: $2.19 |
| 430 |
250000852 |
Hex. Flange Screw M8 X 1.25 x 40 Price: $2.19 |
| 450 |
506152992 |
Washer Price: $1.39 |
| 800 |
710004740 |
Suspension Sensor Price: $164.99 |
| 805 |
506153200 |
Central Sensor Support Price: $44.99 |
| 810 |
207551044 |
Hex. Flange Screw M5 X 10 Price: $4.19 |
| 820 |
505074754 |
Ball Joint Price: $19.49 |
| 830 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 840 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 850 |
232561434 |
Elastic Stop Nut M6 Price: $1.99 |
| 900a2 |
503194671 |
Bushing Price: $7.13 |
| 900b2 |
503194671 |
Bushing Price: $7.13 |
| 900c |
506152792 |
Swivel Pivot Price: $29.99 |
| 900d |
503191800 |
Washer Price: $2.19 |
| 900f |
506153198 |
Steering Support Price: $13.49 |
| 900g1 |
250300038 |
Clinch Stud Price: $4.39 |
| 900h |
207088544 |
HEX. SCREW M8 X 85 - Call your local BRP dealership Price: $2.09 |
| 900j |
503192494 |
Washer Price: $3.29 |
| 900k |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 900m |
506152755 |
Ball Joint Price: $51.99 |
| 900n |
250001028 |
Hex. Flange Screw M6 X 45 Price: $1.29 |
| 900p |
506151245 |
Washer Price: $0.95 |
| 900q |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 903 |
506153157 |
Steering Stopper Price: $6.09 |
| 905 |
233281416 |
Hex. Elastic Flange Nut M8 Price: $1.49 |
| 910 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 915 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 920 |
207687044 |
Hex. Flange Screw M8 X 70 Price: $7.59 |
| 930 |
207685044 |
Hex. Flange Screw M8 X 50 Price: $1.69 |
| 940 |
506151245 |
Washer Price: $0.95 |
| 950 |
233281416 |
Hex. Elastic Flange Nut M8 Price: $1.49 |
| 960 |
506152753 |
Ball Joint Price: $54.99 |
| 970 |
506152582 |
Washer Price: $4.69 |
| 980 |
232500416 |
Elastic Stop Nut M10 Price: $1.99 |
| 1000 |
506153026 |
Main Tube Price: $194.99 |
| 1010 |
506152219 |
Upper Half Housing Price: $1.79 |
| 1012 |
506153048 |
Lower Half Housing Price: $6.92 |
| 1014 |
506152292 |
Upper Vibration Ring Price: $0.76 |
| 1016 |
506152518 |
Lower Vibration Ring Price: $4.89 |
| 1020 |
506153249 |
Housing Bushing Price: $13.49 |
| 1021 |
250001114 |
Hex. Flange Screw M6 x 75 Price: $4.49 |
| 1022 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1030 |
506153249 |
Housing Bushing Price: $13.49 |
| 1031 |
250001114 |
Hex. Flange Screw M6 x 75 Price: $4.49 |
| 1032 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1050 |
506153248 |
Housing Bushing Price: $13.49 |
| 1051 |
207687044 |
Hex. Flange Screw M8 X 70 Price: $7.59 |
| 1052 |
233281416 |
Hex. Elastic Flange Nut M8 Price: $1.49 |
| 1053 |
506152938 |
Stopper Plate Price: $13.49 |
| 1100 |
506153294 |
Cap Price: $27.99 |
| 1110 |
293150008 |
Pop Rivet 3/16" Price: $0.52 |
| 1250a |
506152344 |
LH Threaded Ball Joint Price: $41.49 |
| 1250b |
506152684 |
RH Threaded Ball Joint Price: $44.49 |
| 1250c |
732610010 |
RH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 1280 |
506152582 |
Washer Price: $4.69 |
| 1300 |
233201464 |
Hex. Flange Elastic M10 x 1.5 Price: $7.69 |
| 3901 |
506152821 |
Handle Price: $3.29 |
