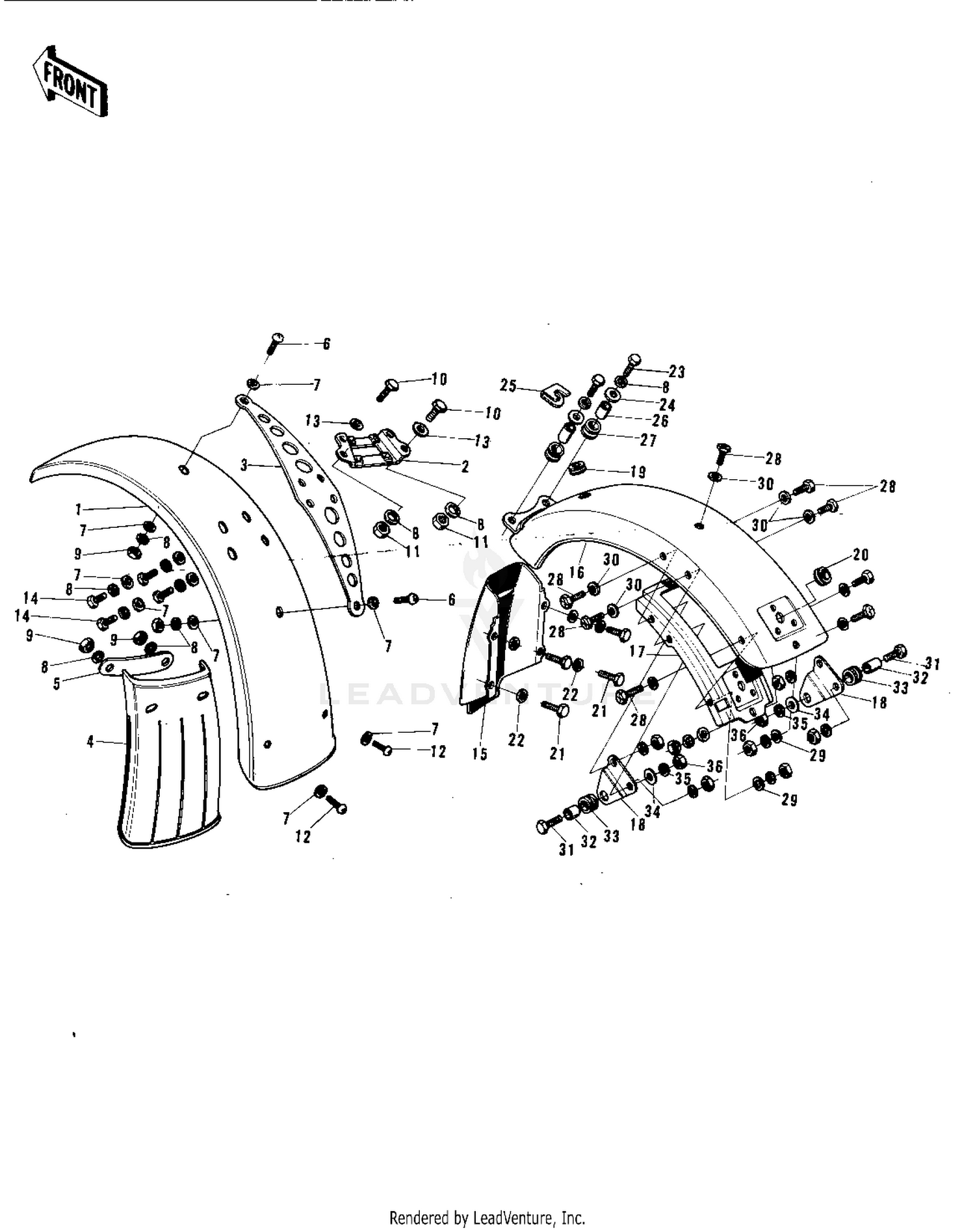

| Ref | Part Number | Description |
|---|
| 1 |
35004-055-73 |
FENDER-FR,RED Price: $87.20 |
| 2 |
35012-013 |
BRACKET-FRONT FENDER Price: $10.01 |
| 3 |
35013-003 |
PLATE FRONT FENDER Price: $7.74 |
| 4 |
35019-004 |
FLAP-FR FENDER,RUBBER Price: $9.27 |
| 5 |
35020-007 |
PLATE-FR FENDER FLAP Price: $2.98 |
| 6 |
220E0612 |
SCREW PAN HEAD 6X12 Price: $4.60 |
| 7 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 8 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 9 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 10 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 11 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 12 |
220E0614 |
SCREW PAN HEAD 6X14 Price: $3.42 |
| 13 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 14 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 15 |
35022-053 |
FENDER-RR Price: $32.41 |
| 16 |
35022-054-73 |
FENDER-RR,RED Price: $81.51 |
| 17 |
35034-012 |
BRACE-REAR FENDER Price: $20.13 |
| 18 |
35025-019 |
BRACKET-REAR FENDER Price: $5.44 |
| 19 |
92071-010 |
GROMMET HARNESS 10MM Price: $4.12 |
| 20 |
92071-019 |
GROMMET HARNESS 10MM Price: $3.89 |
| 21 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 22 |
92027-122 |
COLLAR Price: $8.60 |
| 23 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 24 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 25 |
26015-001 |
PLATE-GROUND WIRE Price: $1.73 |
| 26 |
92027-103 |
COLLAR Price: $3.58 |
| 27 |
92075-051 |
DAMPER Price: $3.92 |
| 28 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 29 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 30 |
92022-024 |
WASHER,7X16X1.2 Price: $3.65 |
| 31 |
92002-1241 |
BOLT, 8X32 This part replaces 115B0832. Price: $2.59 |
| 32 |
92027-012 |
COLLAR,8.8X12X14 Price: $6.22 |
| 33 |
92075-013 |
DAMPER RUBB TANK FRNT Price: $5.47 |
| 34 |
92022-1564 |
WASHER,8X26X2.3 Price: $4.31 |
| 35 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
